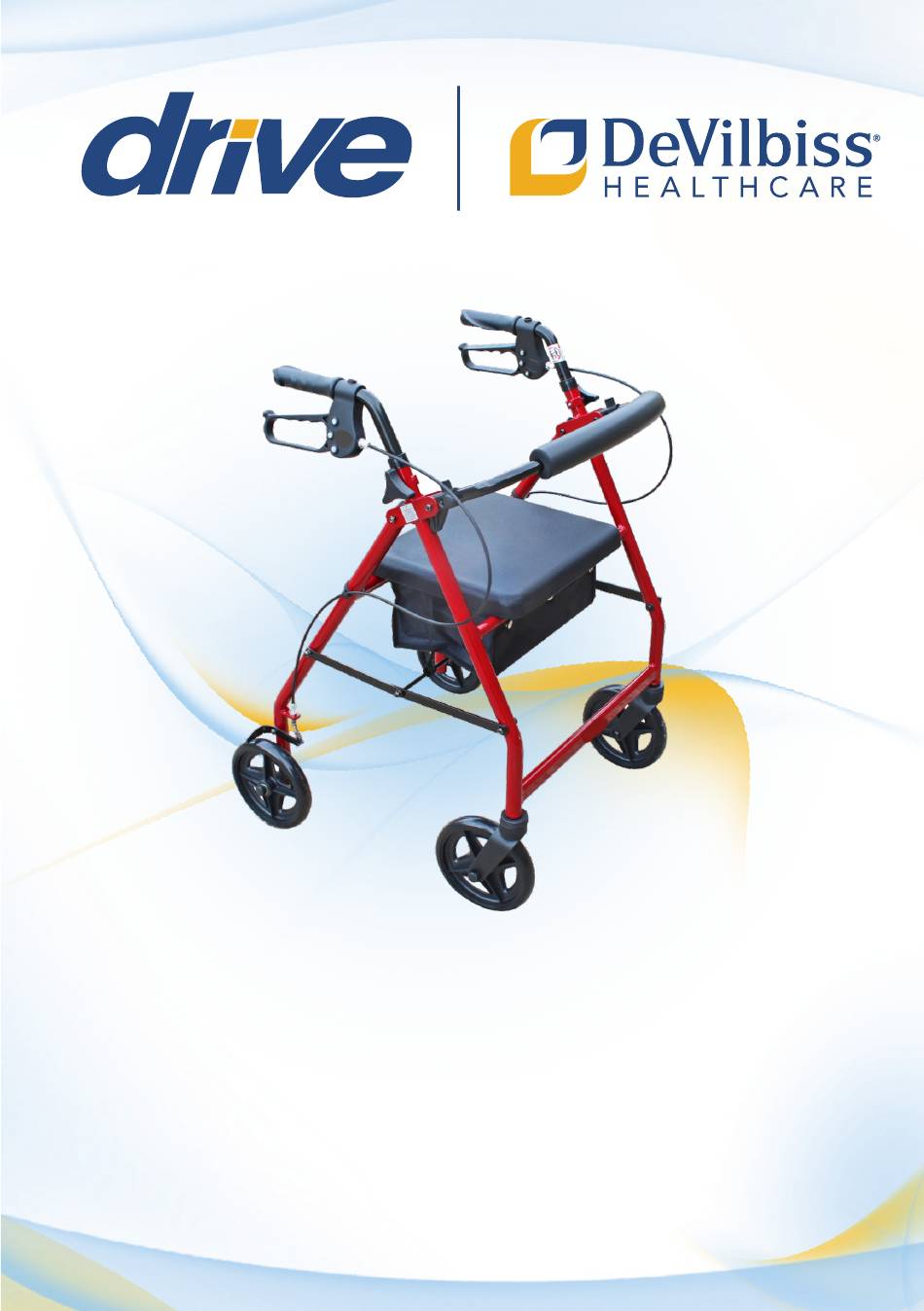

- Page 1 Rollator Instruction Manual...
-
Page 2: Specifications
Drive DeVilbiss Healthcare Ltd. (contact details found on the back cover). Intended purpose A walking device manipulated by both arms to assist a person to maintain stability and balance whilst walking. -
Page 3: Important Safety Information
• In case of doubt in regards to the assembly, operation or maintenance of this rollator, please consult your dealer. • If a serious incident occurs, Drive DeVilbiss Healthcare Ltd and local competent authority should be contacted immediately. -
Page 4: Care And Maintenance
Cleaning Ensure the rollator is kept clean on a regular basis. • Wipe down the rollator with a damp cloth. Extra care should be taken around areas where excess dirt or dust may gather. • The cloth should be changed during the cleaning process if it becomes soiled. •... -
Page 5: Assembling The Rollator
Assembling the Rollator Step 1 Remove packaging Remove the rollator and all components from the packaging. Lay out the rollator. Step 2 Unfolding the rollator To unfold the rollator, lift using the lifting strap which is located under the seat. Lower the rollator down onto it’s wheels and push down on the central bar to fully open. - Page 6 Assembling the Rollator Step 3 Fitting Handlebars Handlebar Brake Cable Tightening handle Insert the handlebar into the tubing ensuring the brake cable is to the outside of the rollator frame. Select the required height and secure with the tightening handle supplied. Tighten Turn clockwise to tighten and anti- clockwise to unscrew.
- Page 7 Assembling the Rollator Step 4 Fitting Backrest Backrest Remove all packaging from the backrest. Button Position the backrest ends into both brackets, push in both backrest ‘buttons’ and fully insert into the brackets. Ensure the ‘pins’ are fully located in the holes (see picture on the right).
- Page 8 Adjusting Handlebar Height To adjust the height of the handlebars, unscrew the tightening handles on either side of the rollator; turning anti-clockwise, and remove. Adjust the height of the handlebars to suit the user, re-insert the tightening handles and tighten by turning Unscrew clockwise to secure (as shown in the picture).
-
Page 9: Brake Operation
Pull up on the brake lever until the unlocked lock removes (as shown by the green arrow). Note: The brakes on rollators are factory set and should not require adjustment. For technical assistance on the rollator brakes, contact your Drive dealer. -
Page 10: Folding And Transporting
Folding and Transporting To fold the rollator for transporting: Whilst holding the rollator handle, lift up the seat and lift the rollator using the lifting strap. As you lift off the ground, the rollator will fold. Note: It is recommended that the brakes are locked when folding and storing. Lifting strap Warning! Keep hands away... -
Page 11: Warranty
Warranty To improve the safety and lifespan of your walker, it is recommended that you have it serviced on a regular basis. Recommended Service Schedules for walkers are available to service agents. There is a comprehensive twelve-month warranty from the date on which your new walker is delivered. -
Page 12: Symbol Definitions
Drive DeVilbiss Healthcare Ltd. reserves the right to alter without notice any weights, measurements, or other technical data shown in this manual. All figures, measurements and capacities shown in this manual are approximate and do not constitute specifications. Dealer Stamp Drive DeVilbiss Healthcare Ltd is an ISO 9001 certified company.
