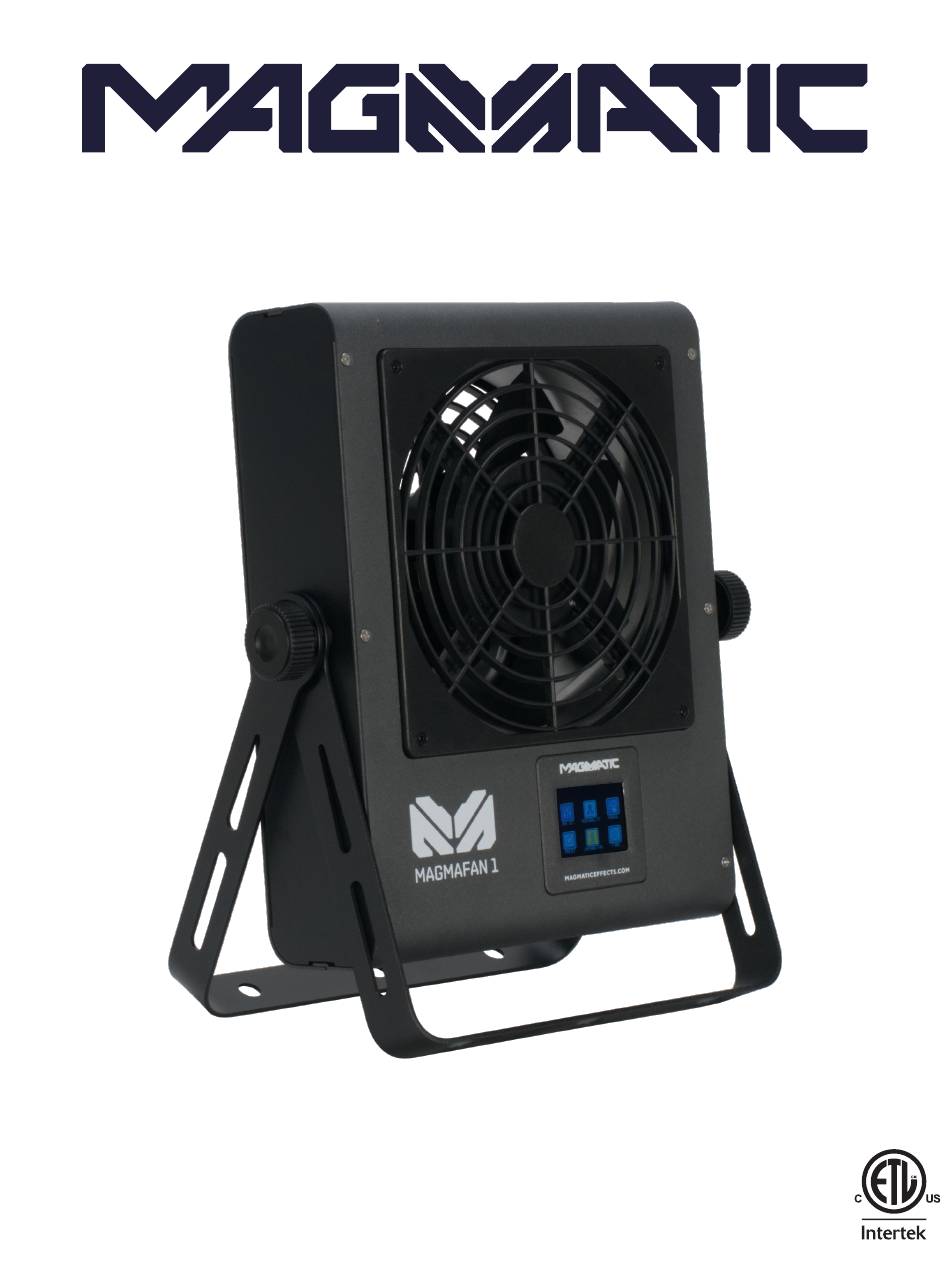

- Page 1 MAGMAFAN1 User Manual 5011471...
-
Page 2: Document Version
MAGMATIC EFFECTS and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic... -
Page 3: Table Of Contents
C O N T E N T S General Information Limited Warranty (USA Only) Warranty Returns (USA Only) Safety Guidelines Maintenance Guidelines Overview Installation Instructions Remote Control Remote Device Management (RDM) Control Panel System Menu Preset Mode DMX Channel Functions & Values Dimensional Drawings Specifications FCC Statement... -
Page 4: Important Notice
Please recycle whenever possible. BOX CONTENTS Twist-Lock Power Cable (x1) CUSTOMER SUPPORT Contact MAGMATIC customer service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments, or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | sales@magmaticeffects.com... -
Page 5: Limited Warranty (Usa Only)
No accessories should be shipped with the product. If any accessories are shipped with the product, Magmatic Effects shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof. -
Page 6: Warranty Returns (Usa Only)
(double-box and foam) that provide ample product protection for ground and/or air freight transit, and must be shipped freight pre-paid and insured to MAGMATIC in Los Angeles, CA or a MAGMATIC Authorized Service Center. The RMA number must be clearly written on the outside of the return box, and a brief description of the problem and the RMA number must be documented and included in the box. -
Page 7: Safety Guidelines
This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. Magmatic Effects is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual. - Page 8 S A F E T Y G U I D E L I N E S • READ AND SAVE THESE INSTRUCTIONS • To Reduce The Risk Of Fire, Electric Shock Or Injury To Persons, Do Not Use Replacement Parts That Have Not Been Recommended By The Manufacturer. •...
-
Page 9: Maintenance Guidelines
Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this device, please refer all other service issues to an authorized MAGMATIC service technician. Should you need any spare parts, please order genuine parts from your local MAGMATIC dealer. -
Page 10: Overview
O V E R V I E W 1. Mounting Yoke 2. Touch Screen Display 3. Mounting Yoke Adjustment Knob (x2) 4. Fan Grille (x2) 5. Optional Module Installation Point* (x2) 6. Wired Remote Port 7. Breaker 8. Power In 9. -
Page 11: Installation Instructions
I N S TA L L AT I O N I N S T R U C T I O N S FLAMMABLE MATERIAL WARNING Keep fixture a minimum of 5 feet (1.5 meters) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. - Page 12 3. Aim the Magmafan1 fixture within the brackets in the desired direction. 4. Manually tighten both thumbscrews sufficiently (finger-tight) to secure the yoke-stand brackets.
-
Page 13: Remote Control
REMOTE CONTROL This unit can be operated using the MagRemote VIDI remote control, which is a 4-pin, wired remote that can be used to control the volume, intensity, duration, and interval. Please note that the MagRe- mote VIDI is a universal remote, and some remote functions may not be applicable to all units. To operate the device using this remote, simply connect the remote’s 4-pin male connector to the matching 4-pin female port on the back of the unit, which is labeled “Remote In.”... -
Page 14: Remote Device Management (Rdm)
R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems. -
Page 15: Control Panel
C O N T R O L PA N E L This device includes a system menu with an easy to navigate touch screen control panel where all necessary settings and adjustments can be made. When first powering on the device, the main menu will be displayed. -
Page 16: System Menu
S Y S T E M M E N U DMX Addr 1 ~ 512 1-ch DMX SET DMX Mode 2-ch 4-ch Wifi Name 0~xxxxx 00000000 - Wifi Passcode 00009999 If no module Wifi IP card is installed, “Optional Module Wifi Set Wifi Port 0~65535... - Page 17 SYSTEM MENU Interval 0~2500s Start or pause device operation Duration 0~250s TIMER according to these values by pressing Fan Speed 20%~100% the Play/Start icon. Preset 1 Preset 2 See Preset Modes PRESET Preset 3 section Preset 4 Preset 5 State Normal / Error Slot 1 Null / MagFly / Wifi / MagRF...
-
Page 18: Preset Mode
P R E S E T M O D E Selecting the device’s Preset Mode provides the user with a choice of five (5) pre-programmed operational modes, which are controlled by an easy-to-use Preset Control Screen (see below). The details of each preset mode, numbered 1 through 5, can be viewed by pressing on the numerical buttons located near the top of the screen. -
Page 19: Dmx Channel Functions & Values
D M X C H A N N E L F U N C T I O N S & VA L U E S CHANNEL VALUES FUNCTION 1-CH 2-CH 4-CH On/Off 000 - 005 006 - 255 Fan Speed 000 - 005 006 - 255 20% - 100%... -
Page 20: Dimensional Drawings
D I M E N S I O N A L D R AW I N G S Drawings not to scale. -
Page 21: Specifications
S P E C I F I C AT I O N S PERFORMANCE Rated Power: 165W Max. fan volume: (17m3/min 600CFM (US) - 15m3/min 530CFM (EU) Fan angle: 0-360° Fan speed range: 750-2800rpm (US) - 750-2550rpm (EU) CONSTRUCTION Durable aluminum housing Compact lightweight mobile design CONTROL 3 DMX Channel Modes (1 / 2 / 4) -
Page 22: Fcc Statement
F C C S TAT E M E N T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 23 This page intentionally left blank.
