Summary of Contents for MAGMATIC MAGMAFAN1

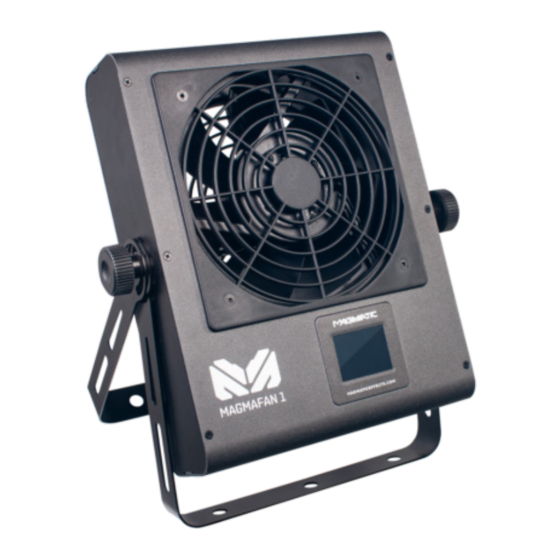

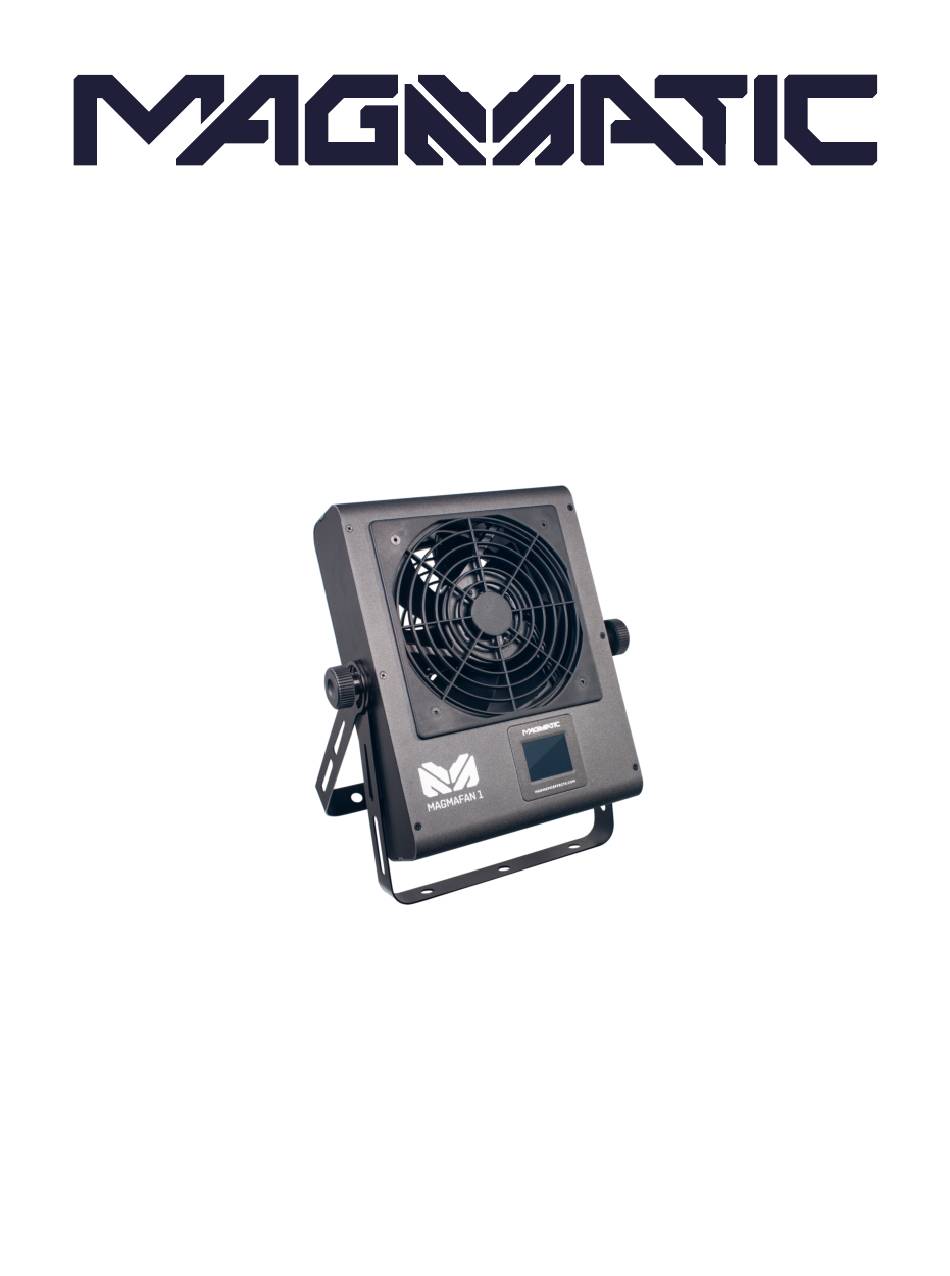

- Page 1 MAGMAFAN1 User Manual US SKU#: MSF013 UPC#: 810008261514 ITF-14#: 10810008261511...
- Page 2 All non-MAGMATIC brands and product names are trademarks or registered trademarks of their respective companies. MAGMATIC EFFECTS and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
CONTENTS General Information Limited Warranty (USA Only) Warranty Returns (USA Only) Safety Guidelines Maintenance Guidelines Overview Installation Instructions Control Panel System Menu Preset Mode DMX Channel Functions & Values Dimensional Drawings Specifications... -
Page 4: General Information
Please recycle whenever possible. BOX CONTENTS Twist-Lock Power Cable (x1) CUSTOMER SUPPORT Contact MAGMATIC customer service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments, or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | sales@magmaticeffects.com... -
Page 5: Limited Warranty (Usa Only)
No accessories should be shipped with the product. If any accessories are shipped with the product, Magmatic Effects shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof. -
Page 6: Warranty Returns (Usa Only)
(double-box and foam) that provides ample product protection for ground and/or air freight transit, and must be shipped freight pre-paid and insured to MAGMATIC in Los Angeles, CA or a MAGMATIC Authorized Service Center. The RMA number must be clearly written on the outside of the return box, and a brief description of the problem and the RMA number must be documented and included in the box. -
Page 7: Safety Guidelines
This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. Magmatic Effects is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the infor- mation printed in this manual. - Page 8 SAFETY GUIDELINES • DO NOT TOUCH the device housing during operation. Turn OFF the power and allow approximately 15 minutes for the device to cool down before servicing. • DO NOT shake the device, and avoid brute force when installing and/or operating. • DO NOT operate device if the power cord is frayed, crimped, damaged and/or if any of the power cord connectors are damaged and do not insert into the device securely and with ease.
-
Page 9: Maintenance Guidelines
Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this device, please refer all other service issues to an authorized MAGMATIC service technician. Should you need any spare parts, please order genuine parts from your local MAGMATIC dealer. -
Page 10: Overview
OVERVIEW 1. Mounting Yoke 2. Touch Screen Display 3. Mounting Yoke Adjustment Knob (x2) 4. Fan Grille (x2) 5. Optional Module Installation Point* (x2) 6. Wired Remote Port 7. Breaker 8. Power In 9. DMX Out 10. Power Out 11. DMX In 12. -
Page 11: Installation Instructions
INSTALLATION INSTRUCTIONS FLAMMABLE MATERIAL WARNING Keep fixture a minimum of 5 feet (1.5 meters) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO! Device MUST be installed following all local, national, and country commercial electrical and con- struction codes and regulations. - Page 12 INSTALLATION INSTRUCTIONS CLAMP INSTALLATION This device features a mounting yoke with integrated clamp attachment points, as well as a safety cable loop located near the fan grille on the cable connection side of the device (see the illustra- tion below). When mounting this fixture to truss, be sure to secure appropriately rated clamps (not included) to the mounting yoke, and attach a separate SAFETY CABLE of the appropriate rating to the safety cable loop.
-
Page 13: Control Panel
CONTROL PANEL This device includes a system menu with an easy to navigate touch screen control panel where all necessary settings and adjustments can be made. When first powering on the device, the main menu will be displayed. To proceed, press the main menu icon that you would like to access. Use the ENTER button to ac- cess sub menus and use the UP and DOWN buttons to make adjustments. -
Page 14: System Menu
SYSTEM MENU DMX Addr 1 ~ 512 1-ch DMX SET DMX Mode 2-ch 4-ch Wifi Name 0~xxxxx 00000000 - Wifi Passcode 00009999 If no module 0~255.0~255.0~ Wifi IP card is installed, 255.0~255 “Optional Module Wifi Set Wifi Port 0~65535 Not Installed” will be displayed on Complete the screen... - Page 15 SYSTEM MENU Interval 0~2500s Start or pause device operation Duration 0~250s TIMER according to these values by pressing Fan Speed 20%~100% the Play/Start icon. Preset 1 Preset 2 See Preset Modes PRESET Preset 3 section Preset 4 Preset 5 State Normal / Error Slot 1 Null / MagFly / Wifi / MagRF...
-
Page 16: Preset Mode
PRESET MODE Selecting the device’s Preset Mode provides the user with a choice of five (5) pre-programmed operational modes, which are controlled by an easy-to-use Preset Control Screen (see below). The details of each preset mode, numbered 1 through 5, can be viewed by pressing on the numerical buttons located near the top of the screen. -
Page 17: Dmx Channel Functions & Values
DMX CHANNEL FUNCTIONS & VALUES CHANNEL VALUES FUNCTION 1-CH 2-CH 4-CH On/Off 000 - 005 006 - 255 Fan Speed 000 - 005 006 - 255 20% - 100% Fan Speed 000 - 005 006 - 255 21% - 100% Duration 000 - 005 006 - 255... -
Page 18: Dimensional Drawings
DIMENSIONAL DRAWINGS Drawings not to scale. Device is shown with optional equipment; actual equipment level of your device may vary. -
Page 19: Specifications
SPECIFICATIONS PERFORMANCE Rated Power: 80W Max. fan volume: (600cu ft/min.) (17 m3/min) Fan angle: 0-360° Fan speed range: 750-2800rpm CONSTRUCTION Durable aluminum housing Compact lightweight mobile design CONTROL 3 DMX Channel Modes (1 / 2 / 4) Onboard LCD Touch Control Panel DMX-512 and RDM Protocol Support Optional MAGFLY Wireless DMX Transceiver Optional MAGRF Wireless and Wired Remotes...
