WEB'LOG
RESIDENTIAL
Quick Reference Guide
English
As at 01.05.2014
INFORMATION
This is merely a quick reference guide.
You will find the complete operating
manual with detailed instructions on the
Internet at:
www.meteocontrol.de/weblog-
residential
ENVIRONMENTAL PROTECTION
AND DISPOSAL
Old devices which no longer
work should be disposed of in
accordance with national and
local environmental and
recycling regulations. Electronic
components may not be disposed of
along with household waste.
meteocontrol GmbH | Spicherer Straße 48 | 86157 Augsburg | Telephone +49 (0)821 34666 - 88 (Support)
Fax +49 (0)821 34666 - 11 | E-mail info@meteocontrol.de | Web www.meteocontrol.de

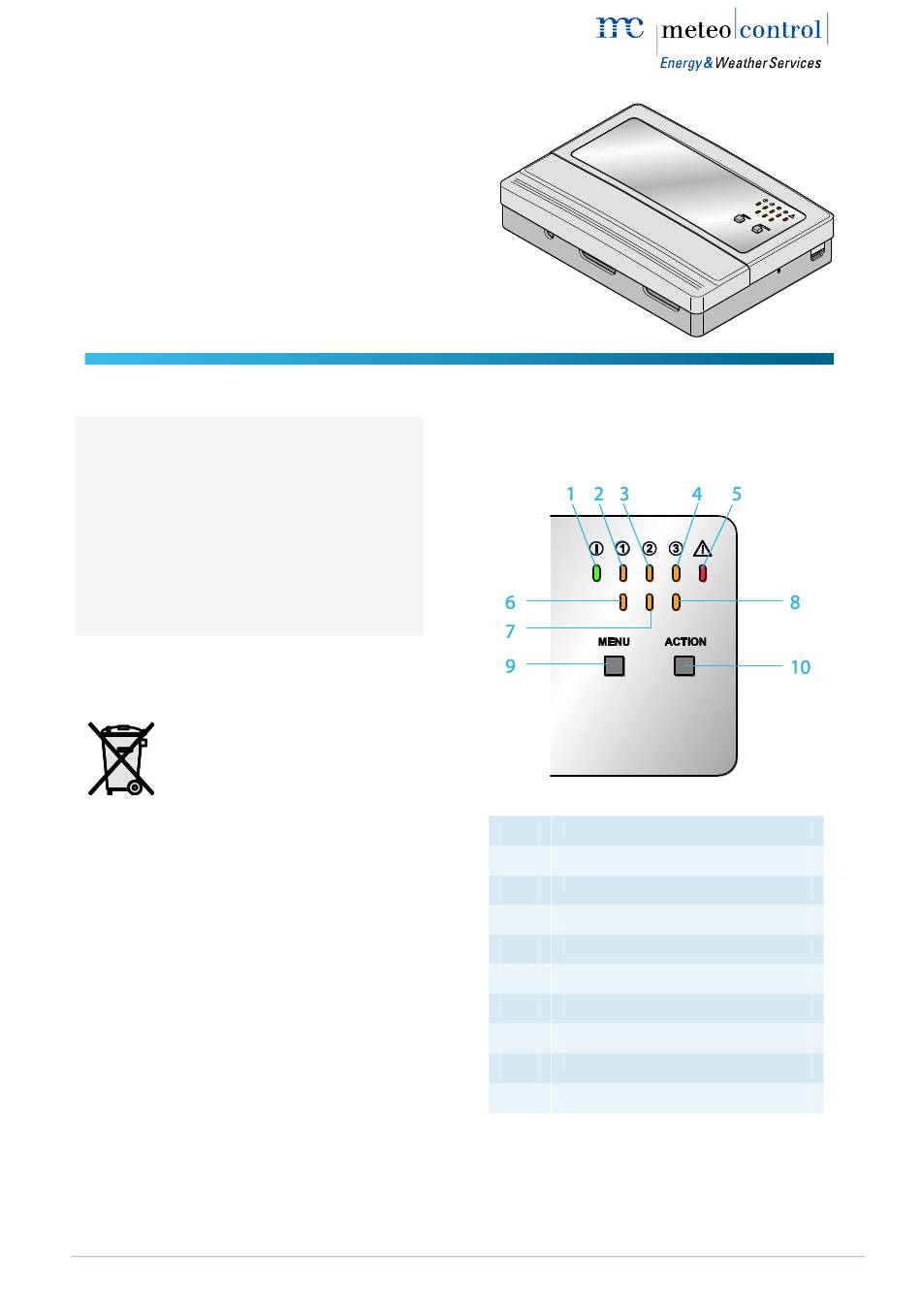

OVERVIEW
"Operation" LED
1
"Info 1" LED
2
"Info 2" LED
3
"Info 3" LED
4
"Warning" LED
5
"Status 1" LED
6
"Status 2" LED
7
"Status 3" LED
8
"MENU" Button
9
"ACTION" Button
10
1/4
