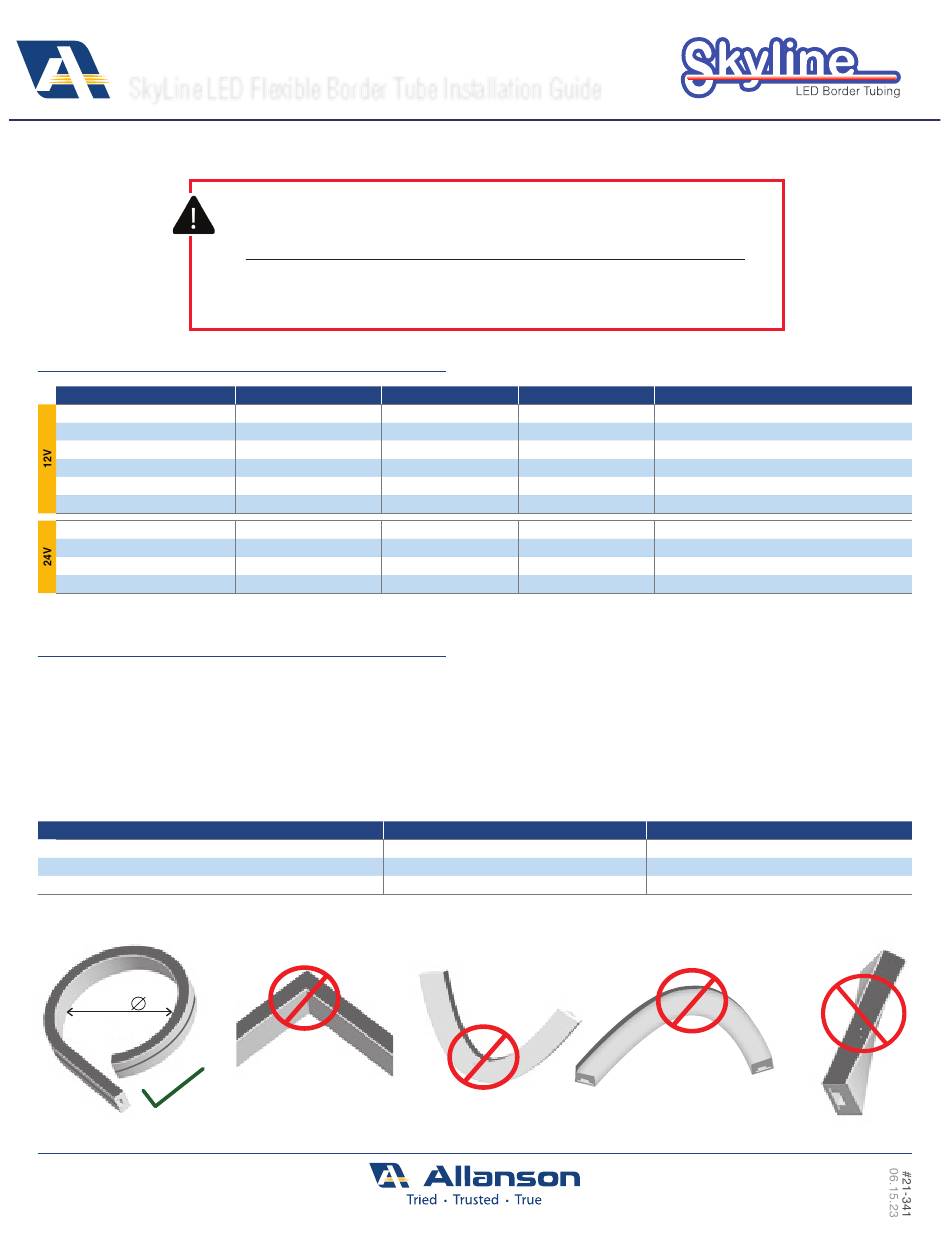

SkyLine LED Flexible Border Tube Installation Guide
The instructions below are guidelines for installation of Allanson's
Skyline Flexible Border Tubing. Installation requirements may vary depending on the application.
Power Supplies Loading
Power Supply Part number
ACV125-120-277V
ACV2125-120-277V
ACV3125-120-277V
CVW125-120-277V*
CVW2125-120-277V*
CVW3125-120-277V*
CV244-120-277
CVW244-120-277*
CVW2244-120-277*
CVW3244-120-277*
*IP68 rated
Product Handling
1) Do not bend past a diameter of 80mm/3.15" to avoid damage to internal components of the product (Fig.1).
2) Do not bend into 90° (Fig. 2)
3) Do not bend the product in the direction shown (Fig. 3 and Fig. 4)
4) Do not twist the product (Fig. 5)
5) Do not pull excessively on the connection wire. This can damage the connections inside the product
6) Ensure Allanson Class 2 power supply is being used. Please reference the power supply
loading chart above
7) To minimize the voltage drop and maintain light consistency, minimize the length of wires between
power supply and the product. Minimum 18GA is required.
Distance to Allanson Power Supply
13 Feet
20 Feet
30 Feet
80mm
3.15"
Fig. 1
(Side Bend)
Read the instructions completely and carefully and follow all
National Electric Codes and local codes.
WARNING: Only qualified personnel should perform installation.
To avoid electrical shock or component damage, disconnect the power before
installation, service, or removal.
Output Watts
60W
120W (60 + 60)
180W (60 + 60 + 60)
60W
120W (60 + 60)
180W (60 + 60 + 60)
96W
96W
192W (96 + 96)
288W (96 + 96 + 96)
Note: All darker shades in images below represent the luminescent surface.
Fig. 2
cservice@allanson.com | 1.800.661.7251 | www.allanson.com
Input Voltage
Output Volts DC
120-277
12.0
120-277
12.0
120-277
12.0
120-277
12.0
120-277
12.0
120-277
12.0
120-277
24.0
120-277
24.0
120-277
24.0
120-277
24.0
Standard Copper Wire Gauge
16 AWG
14 AWG
12 AWG
Fig. 3
Max. Capacity
16' 4" (5m)
16' 4" (5m) + 16' 4" (5m)
16' 4" (5m) + 16' 4" (5m) + 16' 4" (5m)
16' 4" (5m)
16' 4" (5m) + 16' 4" (5m)
16' 4" (5m) + 16' 4" (5m) + 16' 4" (5m)
19' 8" (6m)
19' 8" (6m)
19' 8" (6m) + 19' 8" (6m)
19' 8" (6m) + 19' 8" (6m) + 19' 8" (6m)
Expected Voltage Drop
5%
5%
5%
Fig. 4
Fig. 5
Page 1/5

Advertisement

loading
Need help?

Need help?

Do you have a question about the SkyLine AFB1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Allanson SkyLine AFB1

  • Page 1 4) Do not twist the product (Fig. 5) 5) Do not pull excessively on the connection wire. This can damage the connections inside the product 6) Ensure Allanson Class 2 power supply is being used. Please reference the power supply loading chart above 7) To minimize the voltage drop and maintain light consistency, minimize the length of wires between power supply and the product.
  • Page 2 Self-locking aluminum mounting clip for outdoor application (part number 07-968): 0.595” 0.450” 0.500” 0.136” THRU ALL 0.275” 0.595” Plastic mounting clip for indoor application (part number 07-969): 0.41” 0.15” THRU ALL 0.54” 0.28” X 82° Page 2/5 cservice@allanson.com | 1.800.661.7251 | www.allanson.com...
  • Page 3 SkyLine LED Flexible Border Tube Installation Guide Field Cut Instructions for Standard Colors and RGB (Dead-End Only) 1. Allanson Standard Color Flexible Border Tubes can be cut to shorter lengths in the field 2. Conditions must be dry and clean before cutting sections 3.
  • Page 4 Removing the product after insertion will result in damage to the product. 0.54” 0.54” Insert the flexible border tubing into the mounting clips. The number of clips and distance between them will be determined by each specific application. Plastic Mounting Clip Page 4/5 cservice@allanson.com | 1.800.661.7251 | www.allanson.com...
  • Page 5: Installation Tips

    1. Entire flexible border tubing does not light up a. Ensure power switch is turned on b. Confirm that Allanson Class 2 power supply is being used c. Check polarity and all wiring connections (positive to positive and negative to negative) 2.
