Allanson Skyline SHELL SKYBAR Installation Instruction

Led rigid border tube
Hide thumbs

Advertisement

Quick Links

Download this manual
SHELL
SKYBAR
LED Rigid Border Tube Installation Instruction
SHELL
SKYBAR
LED Rigid Border Tube
Installation Instruction
5
66
YEAR
E324538
cservice@allanson.com | 1.800.661.7251 | www.allanson.com
Information in this manual is subject to change without prior notice

Advertisement

loading
Need help?

Need help?

Do you have a question about the Skyline SHELL SKYBAR and is the answer not in the manual?

Questions and answers

Summary of Contents for Allanson Skyline SHELL SKYBAR

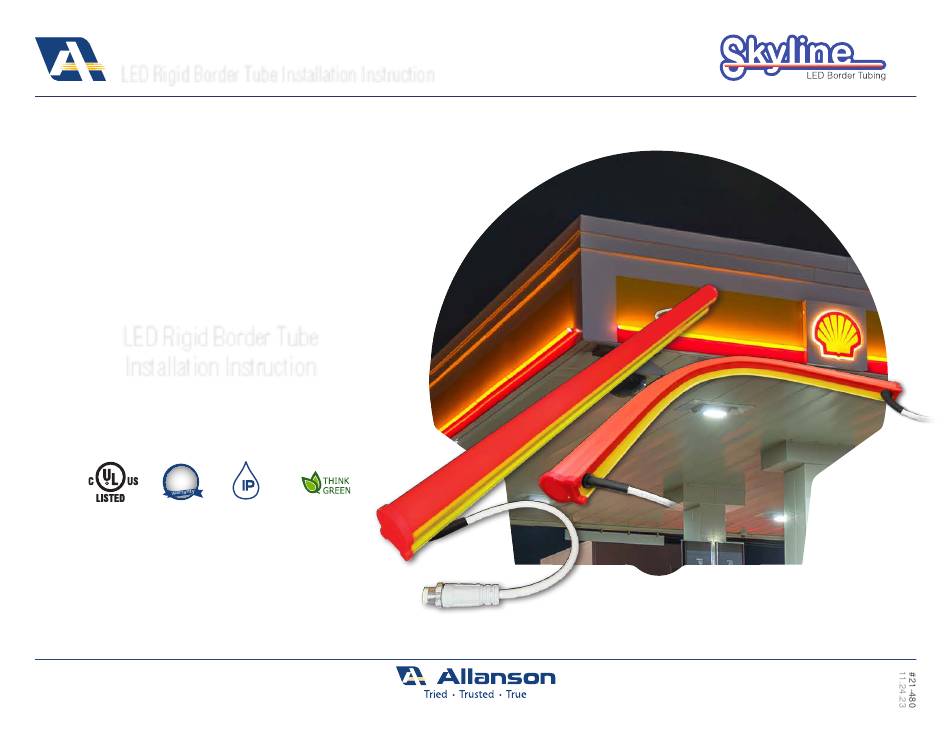

  • Page 1 SHELL SKYBAR LED Rigid Border Tube Installation Instruction SHELL SKYBAR LED Rigid Border Tube Installation Instruction YEAR E324538 cservice@allanson.com | 1.800.661.7251 | www.allanson.com Information in this manual is subject to change without prior notice...
  • Page 2 LED Rigid Border Tube Installation Instruction Disclaimer Important: Please make sure to read, understand and follow all the information and instructions in this guide. Failure to install Allanson‘s LED Rigid Border Tube as described here will void any product warranty. Important: Always work according to the Shell Life Saving Rules Warning: Failure to strictly follow these instructions may subject the installer or others to personal injury.

  • Page 3: Tools Required For Installation

    SHELL SKYBAR LED Rigid Border Tube Installation Instruction Tools Required for Installation Measuring Tape Chalk Line Reel Power Drill Waterproof Marette Wire Cutter/Stripper Self Drilling Screws Page 2/12 cservice@allanson.com | 1.800.661.7251 | www.allanson.com...
  • Page 4 LED Rigid Border Tube Installation Instruction LED Rigid Border Tube Components List Allanson’s Shell Skybar LED Rigid Border Tube (Part# ARBT-106RY) (Part# ARBT-53RY) Allanson • Markham, Ontario • 1-800-661-7251 • www.allanson.com Power Supply (One Channel Part# CVW244-120-277) (Two Channels Part# CVW2244-120-277) (Three Channels Part# CVW3244-120-277)
  • Page 5 Installing Dual Colour LED Rigid Border Tube Lead Panel 1400mm Pecten Loop of wire to allow Standard Panel for thermal expansion/contraction 2700mm Fixing Screw / Rivet Head diameter - min 7mm Head diameter - max 9mm <= 400mm Page 4/12 cservice@allanson.com | 1.800.661.7251 | www.allanson.com...
  • Page 6 SHELL SKYBAR LED Rigid Border Tube Installation Instruction Installing Dual Colour LED Rigid Border Tube Push in both ends and turn the dial clockwise to seal connection Page 5/12 cservice@allanson.com | 1.800.661.7251 | www.allanson.com...
  • Page 7 SHELL SKYBAR LED Rigid Border Tube Installation Instruction LED Rigid Border Tube Custom Cut Length: Tools Required Measuring Tape Tape Sandpaper Acrylic Cement Flashlight Miter Box End Cap (Part# 29-339A) Waterproof Marette Pencil Page 6/12 cservice@allanson.com | 1.800.661.7251 | www.allanson.com...
  • Page 8 Cut position will be seen as ONE bright dot next to two bright dots along the rear of the tube. Mark the required cut position. Page 7/12 cservice@allanson.com | 1.800.661.7251 | www.allanson.com...
  • Page 9 USE WELD-ON 16 OR EQUIVALENT SEALANT IN A WELL Any visible cut wires must be isolated. VENTILATED AREA. BE SURE TO FOLLOW THE SAFETY INSTRUCTIONS LISTED IN THE SEALANT MANUFACTU- RER’S USER’S GUIDE. Page 8/12 cservice@allanson.com | 1.800.661.7251 | www.allanson.com...
  • Page 10 Product failures of this type could result in electrical shock and/or fire and damage to the product and materials which may come in contact with the product. Electrical shocks may cause injury Page 9/12 cservice@allanson.com | 1.800.661.7251 | www.allanson.com...
  • Page 11 SHELL SKYBAR LED Rigid Border Tube Installation Instruction Attention: Do’s and Don’ts Always hold the LED Rigid Border Tube by its tube Don’t hold the LED Rigid Border Tube only by its cable Page 10/12 cservice@allanson.com | 1.800.661.7251 | www.allanson.com...
  • Page 12 SHELL SKYBAR LED Rigid Border Tube Installation Instruction Attention: Do’s and Don’ts Always check for damage before installation. Never install defective LED Rigid Border Tube. Page 11/12 cservice@allanson.com | 1.800.661.7251 | www.allanson.com...
  • Page 13 SHELL SKYBAR LED Rigid Border Tube Installation Instruction Attention: Do’s and Don’ts Never try to repair damaged LED Rigid Border Tube. Always replace damaged LED Rigid Border Tube with new replacement parts. Page 12/12 cservice@allanson.com | 1.800.661.7251 | www.allanson.com...
