TEMI S1 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TEMI S1
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S1 and is the answer not in the manual?

Questions and answers

Related Manuals for TEMI S1

Summary of Contents for TEMI S1

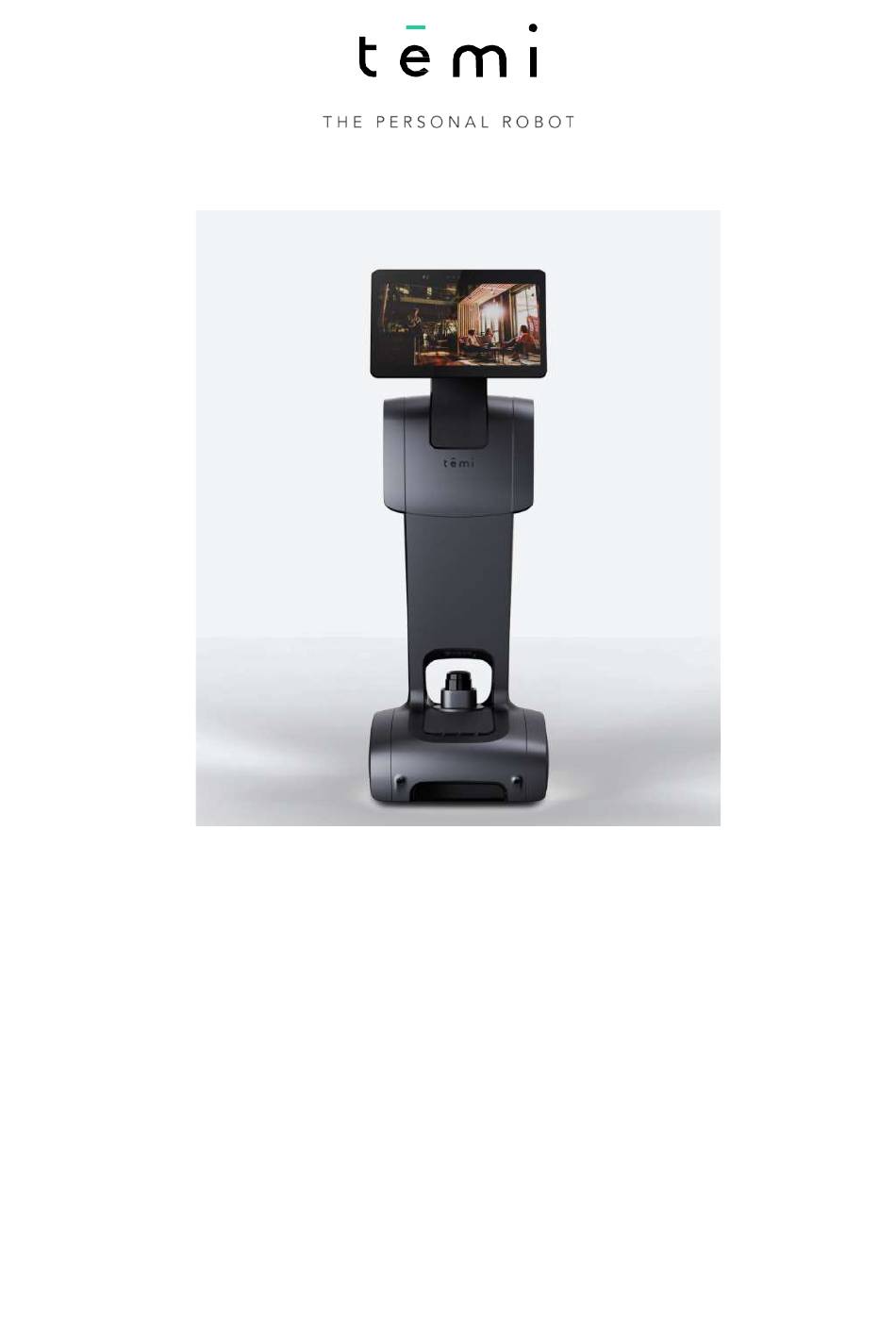

  • Page 1 TEMI S1 User Manual...
  • Page 2 Unboxing temi Setting Temi “Alexa” Skill up Home Base Built-in skills Powering temi Bluetooth connectivity Power Management Volume control Activating temi with mobile app Follow mode Setting up Alexa Stopping Home scr een Locations W iFi a. On robot b. Mobile app...
  • Page 3 Do not place hot drinks, liquids in open containers, or flammable or fragile objects on temi’s tray. When temi is moving, ensure that you and other persons or animals are safe distance of at least 2 feet from the •...
  • Page 5 Featuring user-tracking technology and fully autonomous navigation, temi provides users with a new video calling experience. When video calling temi on the robot side, the user can prompt temi to follow them, allowing a completely hands-free face to face communication. While calling temi remotely via the temi app, users can drive temi manually or to preset locations while temi automatically avoids obstacles in its way.

  • Page 6: What's In The Box

    What’s in the box? temi Power cord and home base Quick start car ds temi components T o view temi’s full specifications, visit Specs. Power jack Contact plates...
  • Page 7 Unboxing temi 1. Open temi ’s box by pulling the green tab on top. You will find an envelope containing temi ’s quick start cards. 2. Remove the styr ofoam by its handle. 3. Hold temi at the highlighted areas and pull it out of the box.
  • Page 8 3. Allow at least 1.5 feet of space on either side of the Home Base. Keep at least 4 ft of clear space in fr ont of the Home Base for temi to access easily. • Be sure there are no highly refl ective materials nearby such as mirrors that could cause the docking TIP: sensors to incorrectly guide temi.

  • Page 9: Power Management

    • Fully charged temi can continuously operate in an average use profile for 8 hours. • When temi is low on battery, it will display a screen alert including a button opting to send it to its home base. • When charging, the battery icon will indicate charging state.
  • Page 10 Download the app from the Play or App Stor e or by using this link: http://www.robotemi.com/temiapp Activate In order to operate, each temi needs to be activated and registered on the temi server . This process will ensur e that: • This is a real temi • Temi has an Admin user This activation process takes place during the initial setup using both the robot and the mobile app.

  • Page 11: Home Screen

    Standby mode When turning on temi or after it has not been in use for over 30 seconds, temi’s screen will display a screensaver image, which will switch to a black time screen after ten minutes without use. While in standby mode, temi still accepts voice commands and will toggle out of standby mode once it is in use by either voice or touch.

  • Page 12: User Management

    QR code during activation] 1. First make sur e the contact you wish to make a “Member” is a temi app contact – go to the Contacts tab on the temi mobile app and verify the desired contact appears. [If they don’t – follow the steps above r egar ding syncing contacts with the temi mobile app.] [Image 1]...
  • Page 13 Note: If your contact activated their temi mobile app using a different phone number than the one you have under their contact – they will not appear . 3. Once these terms apply – Go to the Contacts tab in your temi mobile app and all contacts applying to the terms should appear .

  • Page 14: Recent Calls

    The activation process guides you through some basic tutorials. • To watch the basic and additional tutorials at any time, go to Settings > Getting started. • To lear n how to drive temi, go to Settings > How to drive. Back to index...
  • Page 15 Talk to temi Temi is voice-controlled. • All commands should begin with “Hey temi.” Talk to temi once the micr ophone icon appears. • Tap the micr ophone icon on the top left corner of temi’s scr een. • Her e ar e some examples of what you can say to temi.
  • Page 16 Admins and Members automatically “hop in” to their temi, while guests’ calls need to be accepted. • When a guest is calling temi, a user on the robot’s side needs to accept the call (image A). • When an Admin or a Member calls their temi, the connection will occur automatically after a few...
  • Page 17 Not sur e if you have the latest app version? 1. If you are a current temi app user, go to Settings, tap the username at the top of the page, tap Edit and enter the email address. This is must be the address associated with your Amazon account.
  • Page 18 • “Hey temi, Play Madonna on Y ouT ube” – will play Madonna videos • “Hey temi, Play like a prayer by Madonna on Y ouT ube” – will play ‘like a prayer’ video • “Hey temi, show me mountain biking on Y ouT ube” -will display search results...
  • Page 19 • T ouch the buttons on temi’s head. • To control volume, say “Hey temi, volume 7.” / “Hey temi, volume up.” • To control volume on Alexa voice assistant, say “Alexa, volume 7.” / “Alexa, volume up.” • The volume buttons also prompt the brightness adjustment functions for temi’s scr een...

  • Page 20: Follow Mode

    • Less than 4 feet: Temi will face the user without driving forward (Image A) • 4 - 8 feet: Temi will drive to the user and maintain optimal distance (Image B) • Gr eater than 8 feet: Temi will wait for the user to get closer (Image C)
  • Page 21 Locations: on r obot Temi can save locations around the home or office. You can send temi to a saved location either from temi or from the remote app during a video call. Commands Save location (Image A) • To save a location, say “Hey temi, save this location as Kitchen (ie.).”...
  • Page 22 Locations: temi Center If your robot is on version 121 or higher , you can also add and edit location through temi center • Log into temi Center using your mobile app • Go to Editor > Map • On the Map Editor page, select the map you want to edit out of your saved map. The map will appear on the scr een •...
  • Page 23 Notifications Obstacles If a remote user tries to drive temi while it is not able to find a path clear of obstacles, an orange notification indicating “obstacles” will pop up. Remote control • During video call, when the remote user is in control of your temi, the top bar will display remote (Image A).

  • Page 24: Developer Tools

    • Shut down: temi will perform a shut down Developer Tools We have relased our SDK for any 3rd party developer to develop applications for temi. You can sign up to our developer program anytime using the link below: https://www.robotemi.com/developers/ If you own a temi, go to Settings >...

  • Page 25: Kiosk Mode

    Greeting Mode temi will detect a user within its line of sight, turn to the user and greet them with text and speech. To toggle Welcoming Mode go to Settings > Modes > Greet Kiosk Mode Kiosk mode enables the use of temi as a customer facing Kiosk by “locking” temi to a chosen SDK based app without giving customers access to temi in it’s whole.

  • Page 26: Map & Navigation

    Start walking around your environment, and make sure to reach all the areas and rooms you would like temi be familiar with 3. W hen you are done, have temi follow you to the Home Base. W hen you’re 3 feet away from the Home Base, select “Send to Home Base” and let temi return by itself 4.
  • Page 27 Enter this menu and follow on-screen instructions to create a custom navigation profile which fits the space in which temi is situated. Obstacle Avoidance Sensitivity Enter this menu and follow on-screen instructions to configure the sensitibity of temi’s obstacle avoidance that best fits your surroundings Go-To Configuration Enter this menu and follow on-screen instructions to configure temi’s behaviour during Go-To, such as...

  • Page 28: Software Update

    Software Update Automatic Softwar e Updates When a new softwar e update is available, temi will automatically display a prompt to download and install. Manual Softwar e Updates For manual softwar e updates, go to Settings > Softwar e Update.
  • Page 29 • Auto return - temi will return to a designated location after a predefined amount of time • Stand By Mode – enabling this featur e will cause temi’s scr een to dim and display a clock after 5 minutes of inactivity •...
  • Page 30 Compat ible Smart devices Using “Alexa” As your voice assistant will enable connectivity to many smart home devices. Please fol low the links below to link your smart devices with your Alexa account: • Philips Hue Lighting To connect your Philips Hue Lighting with Amazon Alexa click her e •...

  • Page 31: Do's And Don'ts

    Do’s and Don’ ts TIP: When in Follow Mode the user is fully responisble to lead temi safely. Do not in any case lead temi torwards stairs, clif fs, or any drops which might cause it to fall. Follow Mode...
