Table of Contents
Summary of Contents for TEMI Personal Robot

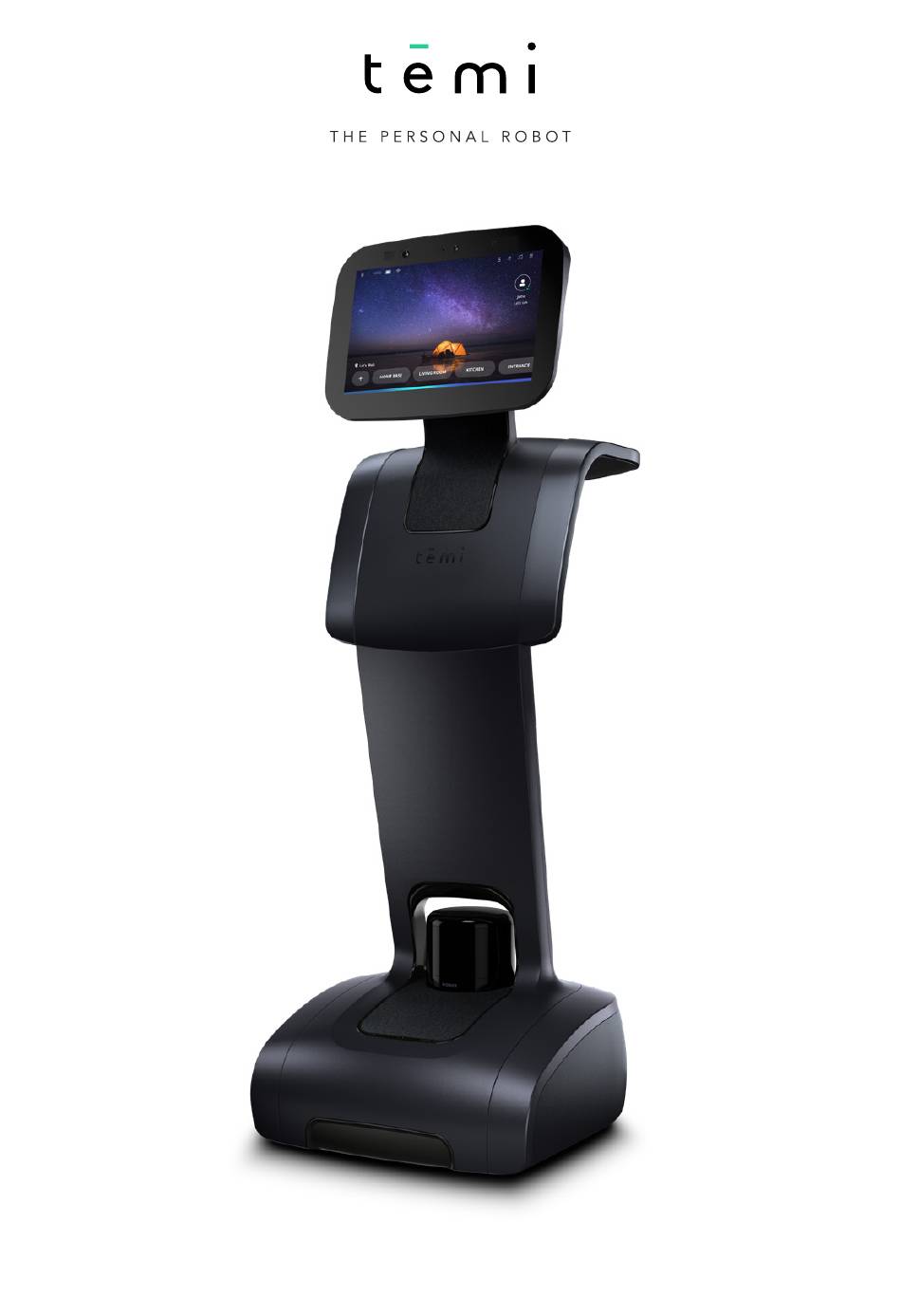

- Page 1 User Manual ( Updated 01.03.2020 )
- Page 2 Contacts and recent calls Unboxing temi Temi “Alexa” Skill Setting up Home Base Built-in skills Powering temi Bluetooth connectivity Power Management Qi tray Activating temi with mobile app Volume control Setting up Alexa Follow mode Home screen Stopping WiFi Locations a. On robot Temi Mobile App b.
- Page 3 Do not place hot drinks, liquids in open containers, or flammable or fragile objects on temi’s tray. • When temi is moving, ensure that you and other persons or animals are safe distance of at least 2 feet from the device at all times.
- Page 4 Featuring user-tracking technology and fully autonomous navigation, temi provides users with a new video calling experience. When video calling temi on the robot side, the user can prompt temi to follow them, allowing a completely hands-free face to face communication. While calling temi remotely via the temi app, users can drive temi manually or to preset locations while temi automatically avoids obstacles in its way.
-
Page 5: What's In The Box
What’s in the box? temi Power cord and home base Quick start cards temi components To view temi’s full specifications, visit Specs. Drive / photo / video cameras Action button LED indicator Microphone array Volume touch buttons 3D Depth Camera... - Page 6 Unboxing temi 1. Open temi’s box by pulling the green tab on top. You will find an envelope containing temi’s quick start cards. 2. Remove the styrofoam by its handle. 3. Hold temi at the highlighted areas and pull it out of the box.
- Page 7 2. Place the Home Base on a hard level surface, flat against the wall. 3. Allow at least 1.5 feet of space on either side of the Home Base. Keep at least 4 ft of clear space in front of the Home Base for temi to access easily. TIP: •...
-
Page 8: Power Management
• Fully charged temi can continuously operate in an average use profile for 8 hours. • When temi is low on battery, it will display a screen alert including a button opting to send it to its home base. • When charging, the battery icon will indicate charging state. - Page 9 Setting up Alexa temi works with Alexa bringing in all of Alexa skills. Users will be able to add items to their shopping list, control connected devices, order food or transportation, get the latest news updates, weather forecast and so forth.
-
Page 10: Home Screen
Standby mode When turning on temi or after it has not been in use for over 30 seconds, temi’s screen will display a screensaver image, which will switch to a black time screen after ten minutes without use. While in standby mode, temi still accepts voice commands and will toggle out of standby mode once it is in use by either voice or touch. -
Page 11: User Management
QR code during activation] 1. First make sure the contact you wish to make a “Member” is a temi app contact – go to the Contacts tab on the temi mobile app and verify the desired contact appears. [If they don’t – follow the steps above regarding syncing contacts with the temi mobile app.] [Image 1]... - Page 12 Note: If your contact activated their temi mobile app using a different phone number than the one you have under their contact – they will not appear. 3. Once these terms apply – Go to the Contacts tab in your temi mobile app and all contacts applying to the terms should appear.
-
Page 13: Recent Calls
The activation process guides you through some basic tutorials. • To watch the basic and additional tutorials at any time, go to Settings > Getting started. • To learn how to drive temi, go to Settings > How to drive. Back to index... - Page 14 Talk to temi Temi is voice-controlled. • All commands should begin with “Hey temi.” Talk to temi once the microphone icon appears. • Tap the microphone icon on the top left corner of temi’s screen. • Here are some examples of what you can say to temi.
- Page 15 Alert on temi In case of a map issue during a video call, the following alerts will show on the mobile device and on temi. Driving to locations will not be available during the call. Once the call ends, return temi to its home base in order for it to restore its map.
- Page 16 Not sure if you have the latest app version? 1. If you are a current temi app user, go to Settings, tap the username at the top of the page, tap Edit and enter the email address. This is must be the address associated with your Amazon account.
- Page 17 • “Hey temi, Play Madonna on YouTube” – will play Madonna videos • “Hey temi, Play like a prayer by Madonna on YouTube” – will play ‘like a prayer’ video • “Hey temi, show me mountain biking on YouTube” -will display search results...
-
Page 18: Volume Control
Qi tray Temi’s tray is a Qi wireless charging surface that can also carry objects up to 6 pounds. To charge your phone using the Qi tray, place a wireless charging compatible device on top of the wireless charging icon. -
Page 19: Follow Mode
• Less than 4 feet: Temi will face the user without driving forward (Image A) • 4 - 8 feet: Temi will drive to the user and maintain optimal distance (Image B) • Greater than 8 feet: Temi will wait for the user to get closer (Image C) - Page 20 Locations: on robot Temi can save locations around the home or office. You can send temi to a saved location either from temi or from the remote app during a video call. Commands Save location (Image A) • To save a location, say “Hey temi, save this location as Kitchen (ie.).”...
- Page 21 Notifications Obstacles If a remote user tries to drive temi while it is not able to find a path clear of obstacles, an orange notification indicating “obstacles” will pop up. Remote control • During video call, when the remote user is in control of your temi, the top bar will display remote (Image A).
-
Page 22: Developer Tools
• Shut down: temi will perform a shut down Developer Tools We have relased our SDK for any 3rd party developer to develop applications for temi. You can sign up to our developer program anytime using the link below: https://www.robotemi.com/developers/ If you own a temi, go to Settings >... -
Page 23: Kiosk Mode
Welcoming Mode temi will detect a user within its line of sight, turn to the user and greet them with text and speech. Settings > General Settings > Welcoming Mode To toggle Welcoming Mode go to Welcoming Mode text and speech can be customized through the “Welcoming Skill Configuration”... - Page 24 “Locations not available” temi is alerting that it has lost its map and requests to be placed on the home base. The home base is the map’s anchor point. After placing temi on its home base, the following nofication should pop up: •...
-
Page 25: Software Update
Software Update Automatic Software Updates When a new software update is available, temi will automatically display a prompt to download and install. Manual Software Updates For manual software updates, go to Settings > Software Update. Back to index U S E R M A N U A L... - Page 26 • Hardware Button – When this feature is enabled, the interaction and volume buttons will not work. • Stand By Mode – enabling this feature will cause temi’s screen to dim and display a clock after 5 minutes of inactivity.
- Page 27 Compatible Smart devices Using “Alexa” As your voice assistant will enable connectivity to many smart home devices. Please follow the links below to link your smart devices with your Alexa account: • Philips Hue Lighting To connect your Philips Hue Lighting with Amazon Alexa click here •...
- Page 28 Do’s and Don’ts TIP: When in Follow Mode the user is fully responisble to lead temi safely. Do not in any case lead temi torwards stairs, cliffs, or any drops which might cause it to fall. Follow Mode Good Environment...
Need help?
Do you have a question about the Personal Robot and is the answer not in the manual?
Questions and answers
The right wheel needs maintaining, how do I access it
The context does not provide instructions on accessing the right wheel for maintenance on the TEMI Personal Robot. It states not to disassemble TEMI and to refer servicing only to qualified and authorized personnel. Therefore, you should not attempt to access the wheel yourself.
Answer: Do not disassemble TEMI; refer maintenance to authorized personnel.
This answer is automatically generated
