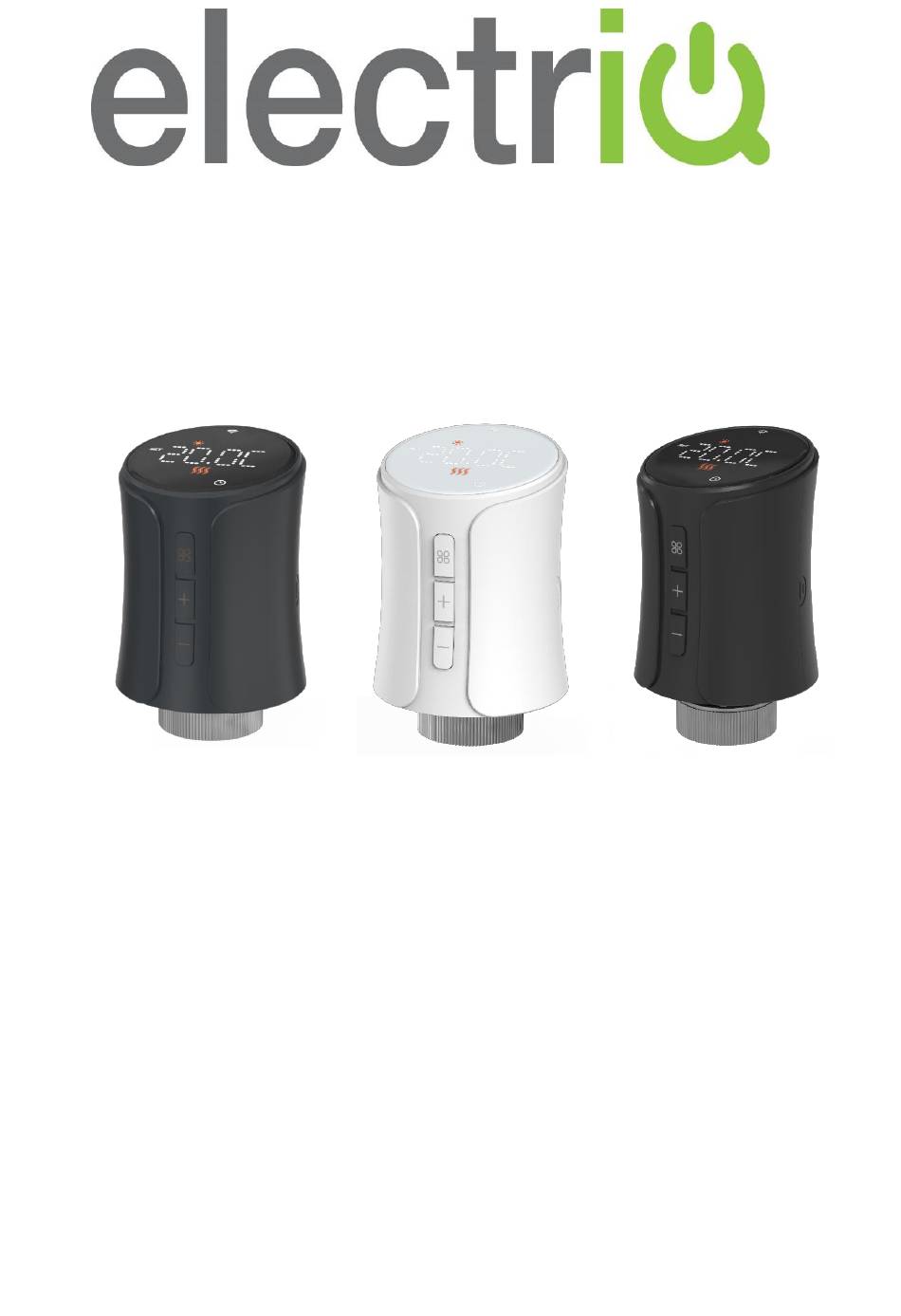

- Page 1 USER MANUAL SMART ZIGBEE RADIATOR VALVES STRV-Z1-WH STRV-Z1-B STRV-Z1-AG Thank you for choosing electriQ. Please read this user manual before using this Smart valve and keep it safe for future reference. Visit our page, www.electriQ.co.uk, for our entire product range.
-
Page 3: Table Of Contents
CONTENTS SAFETY WARNINGS PRODUCT OVERVIEW PARTS LIST INSTALLATION CONTROL PANEL OPERATION SETTING UP THE APP USING THE APP CLEANING AND MAINTENANCE TROUBLESHOOTING ERROR CODES TECHNICAL SPECIFICATION SUPPORT DECLARATIONS... -
Page 4: Safety Warnings
SAFETY WARNINGS For your continued safety, please follow all the safety precautions listed below: • This device is designed for residential indoor use • Keep small parts and packaging out of reach of only. Please do not use it outdoors or in children to avoid choking hazards. -
Page 5: Battery Installation
VALVE ADAPTER INSTALLATION If your connector type is not M30 x 1.5, you will need to mount the adapter on the valve. Adapter sets and their corresponding installation can be found in the diagrams below: Danfoss RA valves Danfoss RAV valves Danfoss RAVL valves Caleffi valves Giacomini valves... -
Page 6: Control Panel
VALVE INSTALLATION • A flickering ‘ ’ on the display indicates that the valve is still adjusting. • Once the ‘ ’ symbol is steady on the display, the thermostat is ready to be installed onto the radiator. • Adjust the angle of the thermostat to ensure the LCD display is clearly visible. -
Page 7: Setting The Temperature
IMPORTANT INFORMATION FOR SMART VALVE USERS • Smart Valve Functionality: Smart valves work by opening and closing the valve based on thermostatic readings. The valve will not create heat on its own. • Radiator Setup: For the smart valves to work, at least one radiator in your heating system must have a non-TRV manual valve which is fully open. - Page 8 NOTE: Pressing “-“ or “+” in a standard mode will switch the device to Custom Mode. CUSTOM MODE The “ ” icon on the display signifies custom mode. The device follows the temperature set manually until further changes are made. The screen alternates between displaying the room temperature and the set point temperature (indicated by the "SET"...
-
Page 9: Setting Up The App
WINDOW OPENING DETECTION The device detects sudden temperature drops to conserve energy when windows are open. HOW IT WORKS: If the room temperature drops by more than 1.5°C within 5 minutes, the valve will close, stopping heating for 30 minutes. The screen will display "... -
Page 10: Connecting The Device
DOWNLOAD THE APP TO YOUR PHONE You can download the” TUYA SMART” app from your chosen app store by using the QR codes below or searching for the app in your chosen store. CONNECTING THE DEVICE There are two ways to enter connection mode: 1) In customised mode, press the “-“... -
Page 11: App Connection
APP CONNECTION NOTE: Some images may differ from the current app due to continuous product improvement. You can download it from the Apple or Google Play Store. 2. Read the Privacy policy 3. Enter your email 1. Press the register button and press the Agree address or phone at the bottom of the... - Page 12 SETTING UP YOUR HOME WITHIN THE APP The app allows you to set up multiple homes, rooms, and devices, so you must set up at least one to get started. 1. Select ‘Me’ at the bottom of 2. Create and name your home, 3.
- Page 13 CONNECTING TO THE HUB Note: The thermostatic valve is intended to be used with the DUAL ZIGBEE / BT WIRELESS GATEWAY HUB (STRV-HUB), as the device will solely connect through hub and phone connectivity. 2. Ensure your phone is 1. Select the 'Add' button in the 3.
- Page 14 CONNECTING SUBDEVICES ADDING SUB-DEVICES CONTROLLING SUB-DEVICES • Open the gateway interface in the TUYA • Go to Associated Devices in the TUYA app. app. • Select the list where you want to add the • Select the sub-device you want to sub-device.
-
Page 15: Using The App
DEVICE HOME SCREEN... -
Page 16: Advanced Settings
ADVANCED SETTINGS To enter advanced settings, click settings on your home screen, scroll down, and then select advanced settings. This is not the mode of the smart valves but your overall heating system control if you have one. To set the highest temperature the valves can reach. - Page 17 PROFILE TAB The profile tab allows you to edit both your details and use the added features of the unit. HOME MANAGEMENT Home Management provides options for managing your TUYA account, such as adding a home, adding and removing rooms, and sharing devices with family.
-
Page 18: Cleaning And Maintenance
CLEANING AND MAINTENANCE IMPORTANT: Turn off the radiator before cleaning the valve. • Clean the exterior with a dry or slightly damp cloth. Do not use abrasive materials or solvents or immerse the device in water. • Periodically check for signs of damage or wear. Replace the device if its performance is compromised. -
Page 19: Error Codes
Poor quality battery and insufficient power. Replace the batteries immediately. Low battery Replace the batteries within 1 week. TECHNICAL SPECIFICATION MODEL STRV-Z1-WH / STRV-Z1-B / STRV-Z1-AG DIMENSIONS (LxWxH) 59.4 x 59.4 x 94.7 mm WEIGHT 154 g SUPPLY VOLTAGE 3 x 1.5V Alkaline AA batteries TEMPERATURE SETTING ACCURACY 0.5°C... -
Page 20: Declarations
Compliance and Quality Manager, Buy It Direct, Huddersfield December 2024 EU DECLARATION OF CONFORMITY Hereby, electriQ declares that these air conditioners comply with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet addresses: https://www.electriq.co.uk/content/DOC/EU/STRV-Z1-WH.pdf https://www.electriq.co.uk/content/DOC/EU/STRV-Z1-B.pdf...
