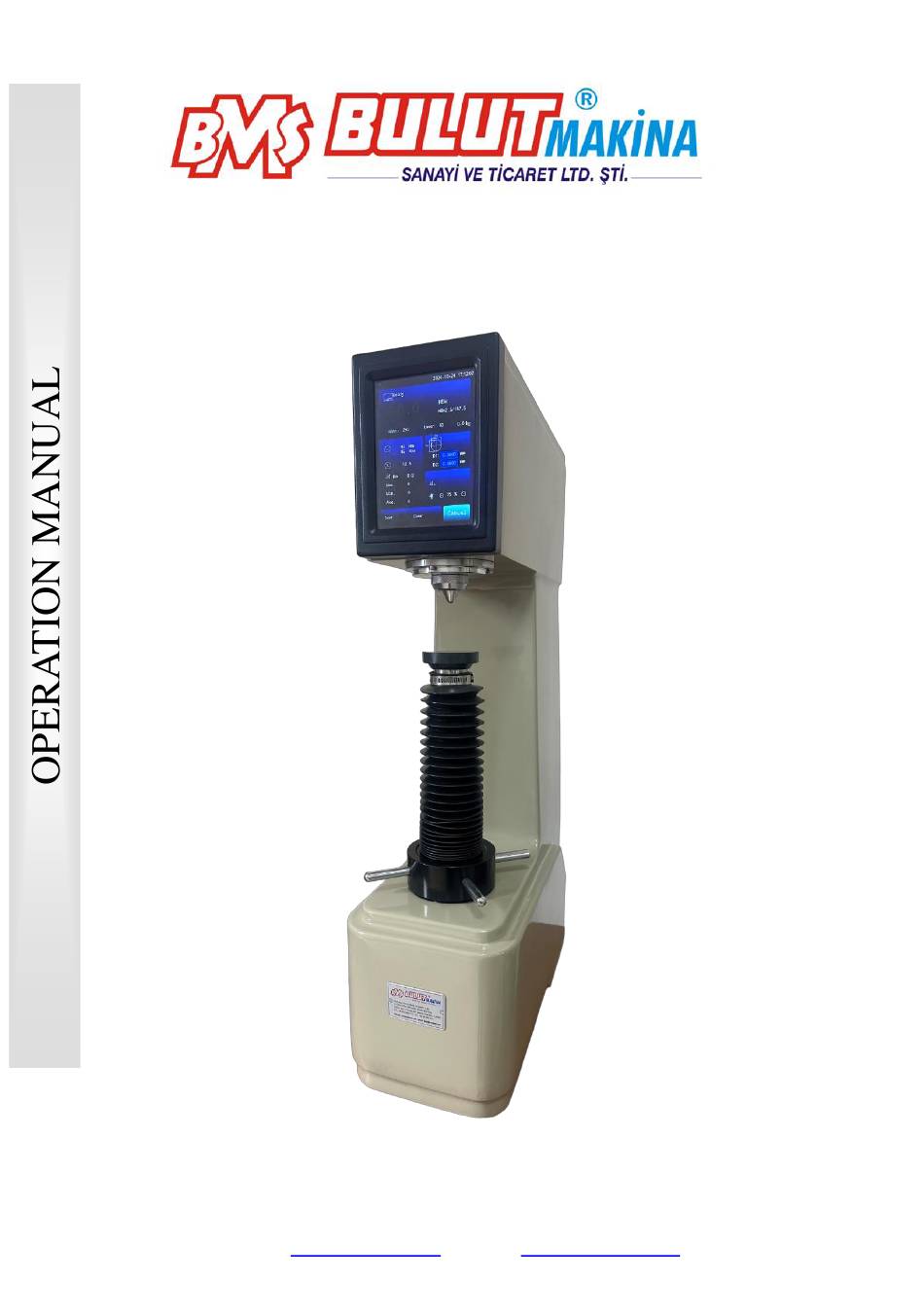

- Page 1 HB 3000-C Brinell Hardness Tester BMS Bulut Makina Sanayi ve Ticaret Ltd. Şti. Kocaeli KOBİ Organize Sanayi Bölgesi Köseler Mahallesi, 6.Cadde No: 20/2 Dilovası / KOCAELİ / TURKEY Phone: +90 262 502 97 73-76 / +90 262 503 06 51 Web: www.bulutmak.com...
-
Page 2: Table Of Contents
General Description ..............................3 Range of Application ............................3 Product Characteristic ............................3 Technical Parameters ............................... 3 Basic Configuration and Structure ........................... 4 Standard Configuration ............................. 4 The structure of the machine ........................... 4 Panel diagram ..............................5 Time display area .............................. 6 Testing Procedure .............................. -
Page 3: General Description
1. General Description The metal Brinell hardness test uses a cemented carbide ball of a certain diameter and presses it into the surface of the material to be tested with a specified test force (Figure 1a) and after the specified holding time, remove the test force, (Figure 1b) to measure the indentation on the sample surface Diameter, to calculate the Brinell hardness, and calculate it with the following formula: ）... -
Page 4: Basic Configuration And Structure
3 Basic Configuration and Structure 3.1 Standard Configuration Brinell hardness tester -----------------------------------------1 pc Reading microscope---------------------------------------------1pc Big size flat workbench -------------------------------------- 1 pc Small size flat workbench ----------------------------------- 1 pc V-shaped workbench ----------------------------------------- 1 pc 10mm ball indenter ------------------------------------------- 1 pc 5mm ball indenter -------------------------------------------- 1 pc 2.5mm ball indenter ------------------------------------------ 1 pc Standard Brinell hardness block --------------------------- 2 pcs... -
Page 5: Panel Diagram
3.3 Panel diagram Button function instruction： 【Save】：Save current test data and save the test data in the historical data. 【Historical data】：View the historical data saved in the past, can be searched up and down, and delete the historical data, print or export the U disk. 【Clear】：It is used to clear the deviation of the initial force value caused by the long continuous operation of the sensor. -
Page 6: Time Display Area
3.4 Time display area Display year, month, day and time display, long press the time display area can pop up the time to modify the numeric keypad, can be modified. Measurement input area: Enter the measured indentation diameter into the input box behind D1 and D2 to directly display the measured hardness value. -
Page 7: Testing Procedure
Click the circle in front of the ruler to be converted to select Dwelling time setting area： Click , it will pop up the numeric keypad and enter the number to set the dwelling time. ★ Note: When the test force error of the hardness tester exceeds the national standard, it shall be calibrated by the manufacturer or technical supervision department, and other personnel shall not enter the calibration test force menu. -
Page 8: Maintenance And Precautions
●This machine is controlled by a microcomputer. If garbled characters or crashes occur, the machine can be restored to the working status by restarting the power. ●If you find other faults, please contact the manufacturer or supplier. Maintenance and Precautions ●The moving parts of the machine should be lubricated regularly (twice a month). - Page 9 Brinell hardness number at test force F Brinell hardness number at test force F Indentation dia. Indentation (n) 0.102F/D2 (n) 0.102F/D2 d10、2d5 dia. d10、 2d5 Or 4d2.5 Or 4d2.5 2.40 54.5 2.72 42.2 2.41 54.0 2.73 41.9 2.42 54.0 2.74 41.6 2.43 53.1...
- Page 10 Brinell hardness number at test Indentation Brinell hardness number at test force F force F (n) Indentation dia. 0.102F/D dia. 0.102F/D d10、2d5 d10、2d5 or 4d2.5 or 4d2.5 3.04 33.6 3.37 27.2 3.05 33.4 3.38 27.0 3.06 33.2 3.39 26.9 3.07 33.0 3.40 26.7...
- Page 11 Brinell hardness number at test Indentation Brinell hardness number at test force F (n) force F (n) Indentation dia. 0.102F/D dia. 0.102F/D d10、2d5 d10、2d5 or 4d2.5 or 4d2.5 3.70 89.7 22.4 4.02 75.5 18.9 3.71 89.2 22.3 4.03 75.1 18.8 3.72 88.7 22.2...
- Page 12 Brinell hardness number at test force Indentation Brinell hardness number at test force F F (n) Indentation dia. 0.102F/D dia. 0.102F/D d10、2d5 d10、2d5 or 4d2.5 or 4d2.5 4.34 64.2 16.1 4.66 55.3 13.8 4.35 63.9 16.0 4.67 55.0 13.8 4.36 63.6 15.9 4.68...
- Page 13 Brinell hardness number at test Indentation Brinell hardness number at test force F force F (n) Indentation dia. 0.102F/D dia. 0.102F/D d10、2d5 d10、2d5 or 4d2.5 or 4d2.5 4.98 47.9 12.0 5.30 41.9 10.5 4.99 47.7 11.9 5.31 41.7 10.4 5.00 47.5 11.9 5.32...
- Page 14 Brinell hardness number at test Indentation Brinell hardness number at test force F (n) force F (n) Indentation dia. 0.102F/D dia. 0.102F/D d10、2d5 d10、2d5 or 4d2.5 or 4d2.5 5.62 36.8 9.21 5.82 34.1 8.52 5.63 36.7 9.17 5.83 33.9 8.49 5.64 36.5 9.14...
-
Page 15: Packing List
Packing List Name Specification Unit Brinell hardness tester Big flat work bench Small flat work bench V work bench Φ10 Carbide indenter Φ5 Carbide indenter Φ2.5 Carbide indenter Standard Brinell hardness block 200±50HBW 100±25 HBW Accessory box Dust cover Manual Power cord Certificate...
