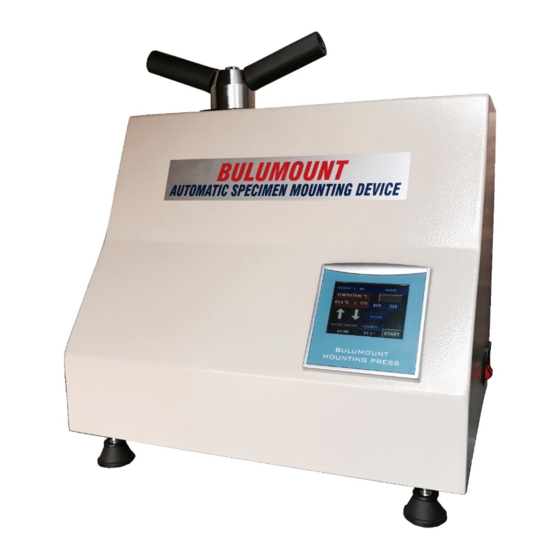

BULUMOUNT-3
AUTOMATIC ELECTRO HYDRAULIC SPECIMEN
MOUNTING EQUIPMENT
BMS Bulut Makina Sanayi Ve Ticaret Ltd. Şti.
İkitelli Organize Sanayi Bölgesi Dolapdere Sanayi Sitesi
Ada 4 No : 7-9 Başakşehir/ İSTANBUL
Tel : 0 212 671 02 24 - 25 Fax : 0 212 671 02 26
web :
www.bulutmak.com
e-mail :
bms@bulutmak.com
Advertisement
Table of Contents
Related Manuals for Bms Bulut Makina BULUMOUNT-3
Summary of Contents for Bms Bulut Makina BULUMOUNT-3

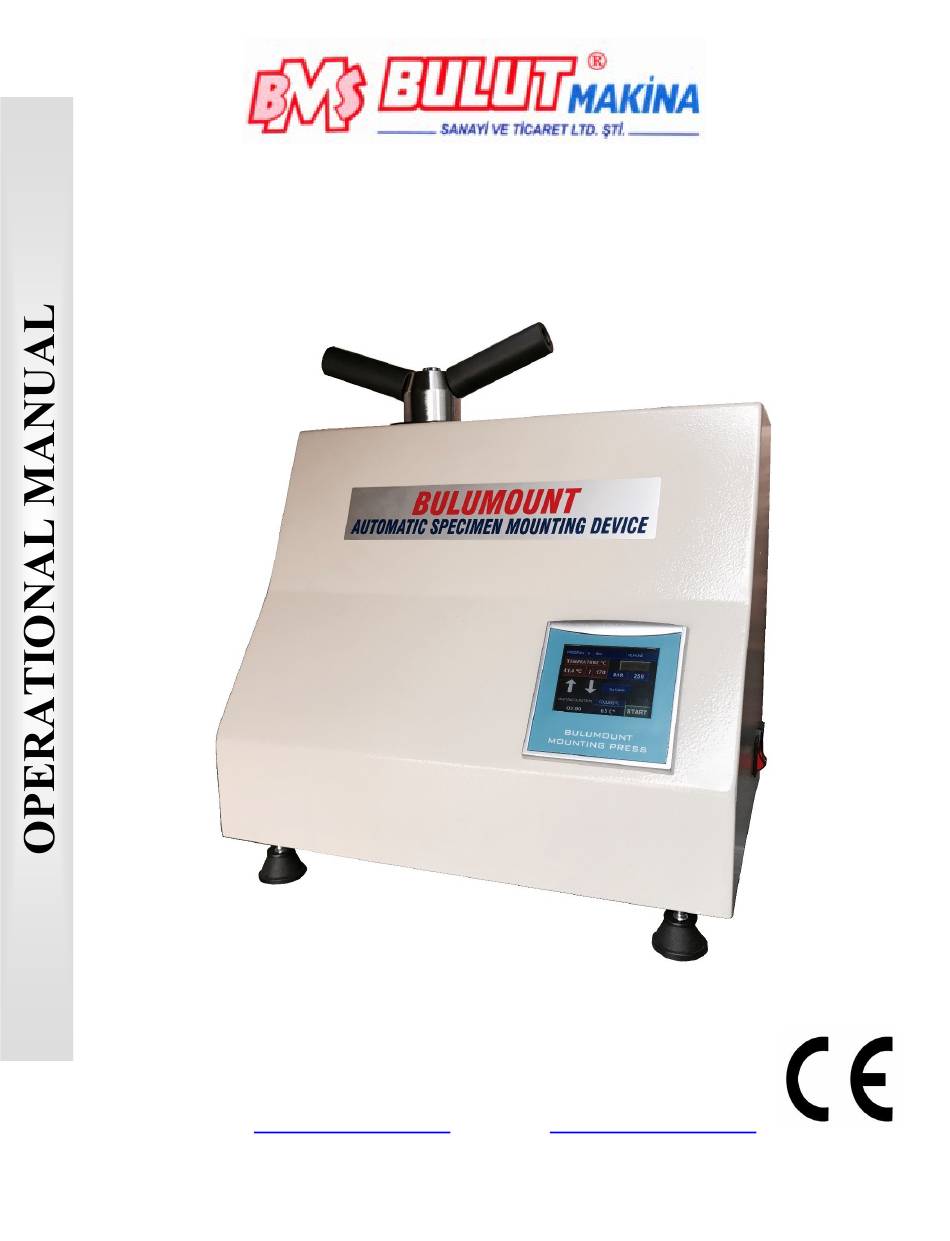

- Page 1 BULUMOUNT-3 AUTOMATIC ELECTRO HYDRAULIC SPECIMEN MOUNTING EQUIPMENT BMS Bulut Makina Sanayi Ve Ticaret Ltd. Şti. İkitelli Organize Sanayi Bölgesi Dolapdere Sanayi Sitesi Ada 4 No : 7-9 Başakşehir/ İSTANBUL Tel : 0 212 671 02 24 - 25 Fax : 0 212 671 02 26 web : www.bulutmak.com...
-
Page 2: Table Of Contents
Technical Specifications ..........................3 Standard Accessories..........................3 MAIN SCREEN .............................. 4 Operation ................................. 5 Placement of Sample and Bakelite Powder....................5 . Removing the Sample ..........................6 Selecting Parameters on the Digital Display ....................6... -
Page 3: Technical Specifications
Technical Specifications Machine dimension 42x37x50 cm Case dimension 50x45x55 cm Weight (net/gross) 45/70 kg Mains 220V-50Hz Mold heater capacity 1250 Watt Max. system pressure 250 bar Entering heating, cooling & preheating values Manual cooling, alarm indicator for cycle completion ... -
Page 4: Main Screen
2 MAIN SCREEN ADJUSTMENT OF EQUIPMENT WORK REQUIRED PARAMETERS TEMPERATURE START/STOP INSTANT TEMPERATURE SEE ON SCREEN DURING ANALYTIC PRESSURE COOLING PROCESS REQUIRED SEE ON THE SCREEN DURING TEMPERATURE HEATING PROCESS WAITING TIME UNTIL SEE ON THE SCREEN DURING THE REACH TO THE HYDRAULIC DISCHARGE AND REQUESTED LOADING PROCESS... -
Page 5: Operation
1) - Temperature: Required temperature settled temp.value (°C) 2) - Waiting time: Waiting time in required settled temperature (min.) 3) - Cooling set: Required cooling settled temp.value (°C) 4) - Pre-heat set: Temperature when machine is on. (°C), but not functioned. 5) - Pressure set: Adjustment of max.pressure required (Bar) Recommended pressure between 150-200 bars depending on sample. -
Page 6: Removing The Sample
Then press START / STOP icon. Molding process will start and end automatically. (Make sure to enter the parameters correctly before starting this process.) You can stop the process by pressing the key when prompted. 3.2 . Removing the Sample SAMPLE Fig.5 At the end of the process, remove the mold lock lever by rotating the mold lock arm counterclockwise. - Page 7 CLICK TO CHOOSE THE REQUESTED TEMPERATURE THAN INTRODUCE TEMPERATURE VALUE (EXAMPLE: 150) AND CONFIRM WITH ENTER PRESS SETTING ICON THAN PRESS TEMPERATURE SETTINGS TO OPEN RETURN TO SETTINGS PRESS OR PRESS ICON. (THE SYSTEM WILL WARN YOU WITHIN THE AUDIENCE WHEN TEMPERATURE IS ON REQUIRED TEMPERATURE).
- Page 8 THEN ON THE RECORD PAGE YOU CAN FILL THE BOX BY KEYBOARD AFTER SAVING THE INFO USING SAVE ICON YOU CAN LEAVE THE PAGE USING EXIT ICON PROGRAM ÇAĞIR VE KAYDET BÖLÜMÜNDEN MEVCUT AYARLARI PROGRAMA KAYDET TIKLANIR PARAMETERS THAT YOU CHOOSE, AFTER PRESS THE ICON, YOU WILL ORIENT AUTOMATICLY...
