Anchor TM15-v2856-01 User Manual

Fixed Flat Panel TV Mount for 24-55" Televisions
User's Guide for Model TM15-v2856-01
Warnings
• The wall mounted parts of the TV mount must be firmly attached to a concrete/
brick/solid wood wall, or wall studs behind drywall.
• Tighten screws so that the wall plate is firmly attached, but do not overtighten.
Overtightening can damage the screws and increase the chances of failure.
• Do not remove or loosen any screws until they are no longer engaged with the
mount. Doing so may cause the screen to fall.
• It is highly recommended to have this mount professionally installed.
• Supports VESA mounts up to 400 x 400mm (100 x 100mm for 24" TVs).
• This mount is designed to hold a maximum of 88 lbs (40 kg).
WARNING: This product can expose you to chemicals including lead,
which is known to the State of California to cause cancer and birth
defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov. This product meets and complies with
required Federal product guidelines.

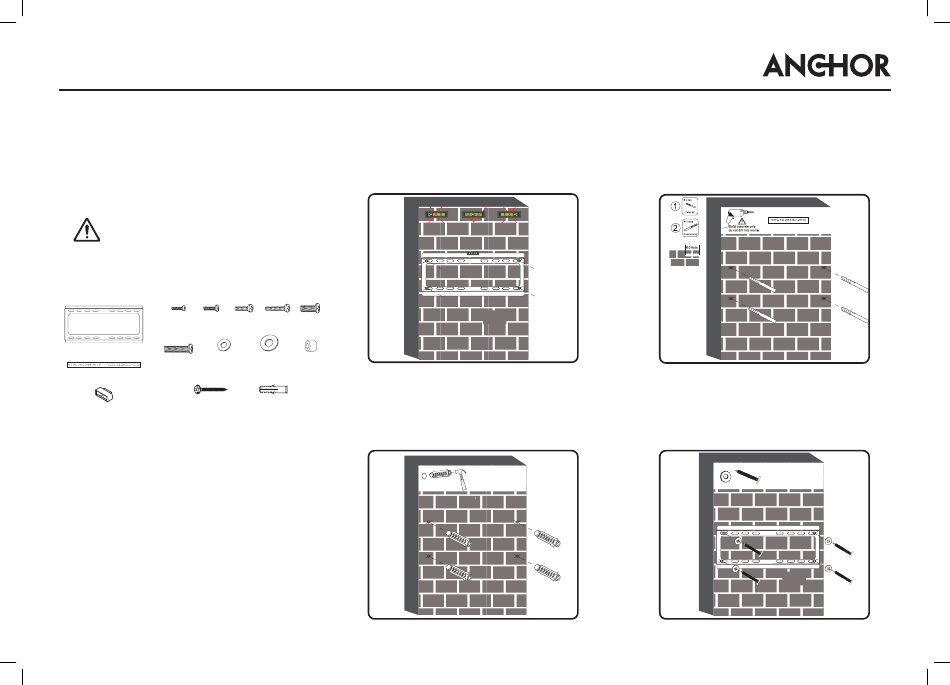

Parts List
M4x20 (x4) M5x20 (x4) M6x20 (x4)
Horizontal Base Plate
(M-A) (M-B) (M-C)
TV Mounting Bracket x 2
M8x45 (x4) D6 Washer (x4)
(M-D) (M-E)
Bubble Level x 1 (M-I)
ST6x50 (x4)
(M-G)
Tools
The following tools are recommended for this installation:
• Drill
• 3/16" drill bit for drywall
• 3/8" or 10mm drill bit for concrete
• Stud finder
• Phillips screwdriver
Step 1
Pre-drill Holes for Base Plate to Wall Attachment
Drill 4 holes for the Horizontal Base Plate to attach to the wall, using exact
measurements based on where you want to mount the Horizontal Base Plate.
Only drill into a solid wall, or studs (behind drywall). DO NOT DRILL AND
HANG THE BASE PLATE ON DRYWALL OR SHEETROCK. It is not strong
enough to support a TV and will cause damage.
M6x30 (x4) M8x20 (x4)
(M-C) (M-D)
D8 Washer (x4) Spacer (x4)
(M-E) (M-F)
If drilling into drywall, use a stud finder to locate studs. ONLY DRILL INTO
STUDS!!
Use a 3/16" drill bit
Concrete anchor (x4)
Step 3
(M-H)
Insert concrete anchors into the 4 drilled holes (use a hammer to tap into
place).
Concrete/Brick wall shown above.
Use a 3/8" or 10mm drill bit
Step 2
Attach Base Plate to Wall
Drill holes: Using a 5mm or 3/16" drill bit.
Attach the Horizontal Base Plate to the wall using the holes drilled in Step 2.
Use the included level to ensure the Horizontal Base Plate is correctly aligned
and square.
Step 4
Secure the mount to the wall by screwing in the ST6 screws into the wall
anchors using a screwdriver.
Insert wall anchors into the holes drilled in Step 1, then screw the base plate
firmly to the wall with the supplied screws.
