Anchor TM35 User Manual

Tilting Flat Panel TV Mount for 37-80" Televisions
User's Guide for Model TM35 v2350-01
Warnings
• The wall mounted parts of the TV mount must be firmly attached to a concrete/brick/solid wood wall, or wall studs
behind drywall.
• Tighten screws so that the wall plate is firmly attached, but do not overtighten. Overtightening can damage the
screws and increase the chances of failure.
• Do not remove or loosen any screws until they are no longer engaged with the mount. Doing so may cause the
screen to fall.
• It is recommended to have this mount professionally installed.
WARNING : This product can expose you to chemicals including lead, which
is known to the State of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.P65Warnings.ca.gov. This
product meets and complies with all Federal regulations.

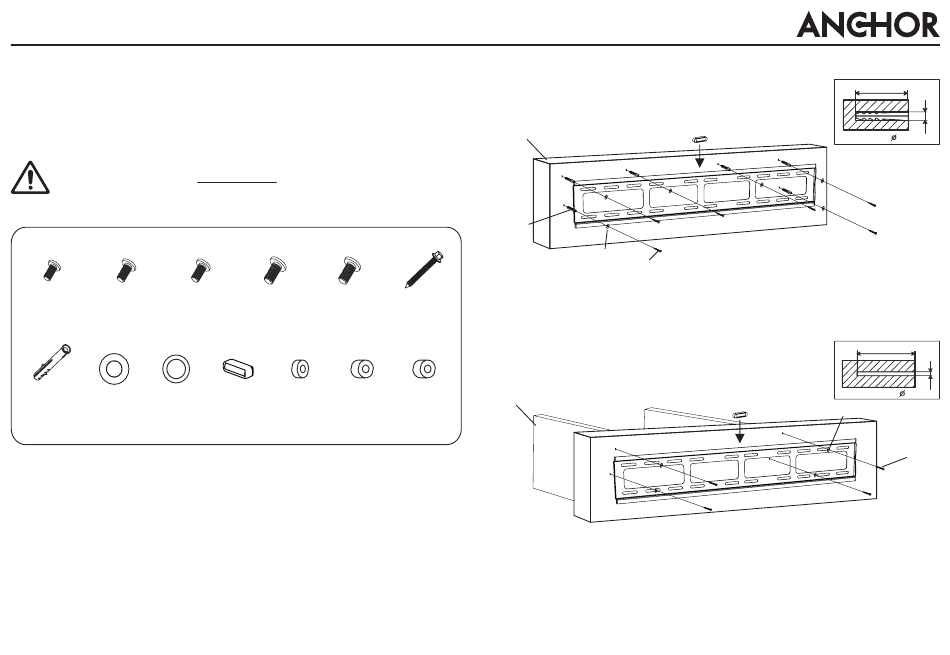

Parts
M4X20MM M5X20MM M6X20MM
A(4PCS) B(4PCS) C(4PCS)
M6 ø6 ø8
F(6PCS) G1(10PCS) G2(4PCS)
Tools
The following tools are recommended for this installation:
• Drill
• 5/32" or 4mm drill bit for drywall
• 3/8" or 10mm drill bit for concrete
• Stud finder
• Phillips screwdriver
• Tape measure
M8X25MM M8X50MM
D1(4PCS) D2(4PCS)
bubble level ø8x5 ø8x10
G3(1PCS) H1(4PCS) H2(4PCS)
Dimensions & Weights
• 840 x 520 x 62mm / 33 x 20.5 x 2.44"
• Supports VESA up to 800 x 500mm.
• This mount is designed to hold a maximum of 132
lbs (60 kg).
• For TV size 37"-80"
Step 1A: Concrete Wall Mounting
Concrete Wall
F
M6
E(6PCS)
Step 1B: Drywall with Wooden Stud Mounting
Wood Stud
behind drywall
ø8x20
H3(4PCS)
Only drill into wooden studs behind drywall. Use a stud finder to locate studs
if needed. DO NOT DRILL AND HANG THE BASE PLATE ON DRYWALL OR
SHEETROCK WITHOUT STUDS. It is not strong enough to support a TV and
will cause damage.
1
bubble level
G3
G1
E
bubble level
G3
60mm
10mm
Pre-drill holes and use
included wall anchors
(Part F).
60mm
3mm
G1
E
