ADE CK 1702, CK 2307-1, CK 2307-2 Manual

Introduction

You have chosen to purchase a high-quality product from the brand ADE, which combines intelligent functions with an exceptional design. With this radio-controlled clock, you always have the exact time in view. The many years of experience of the brand ADE ensures a high technical standard and proven quality. We wish you easy timing at any time! Your ADE Team

General information

About this manual

This operating manual describes how to safely use and care for your products. Keep this operating manual in a safe place in case you would like to refer to it later. If you pass this item on to someone else, pass on this manual as well.
Failure to observe the recommendations in this operating manual can lead to injuries or damage to your product.

Explanation of symbols

	This symbol, combined with the word DANGER, warns against serious injury.
	This symbol, combined with the word WARNING, warns against moderate and mild injuries.
	This symbol, combined with the word NOTE, warns against material damage.
	This symbol signifies additional information and general advice.

Scope of delivery

• ‚ DCF Radio-controlled clock
• ‚ 2 batteries type LR6 (AA), 1.5 V ‚
• Operating Manual

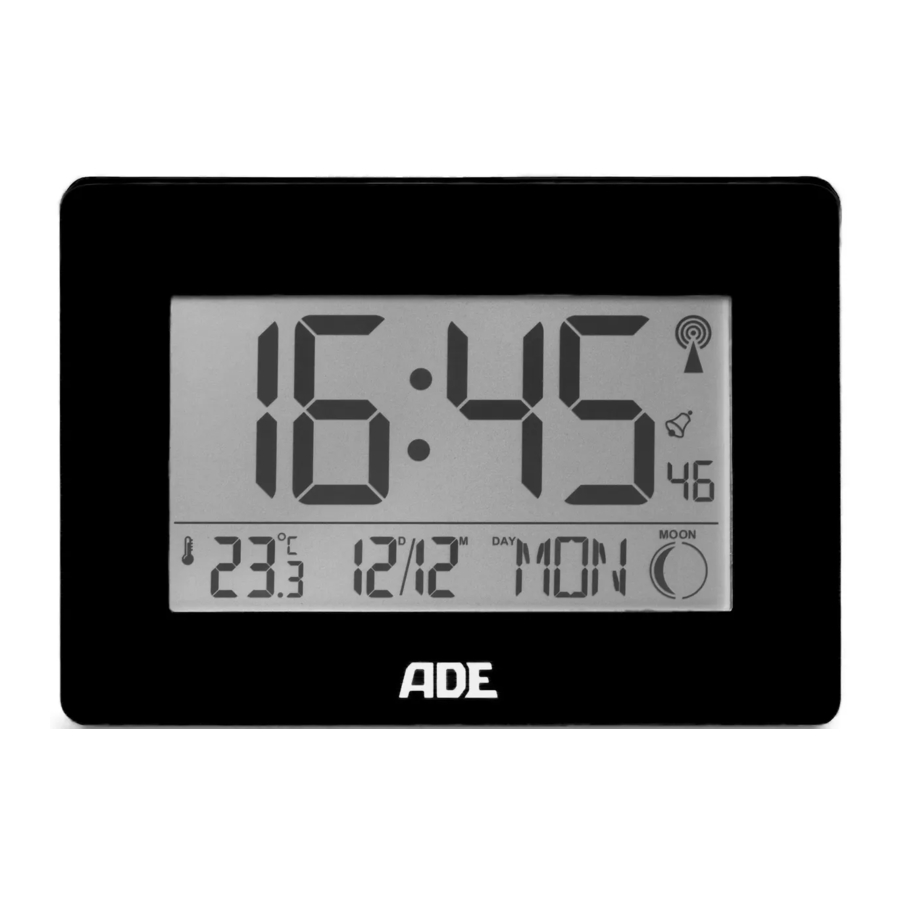

Overview

1. Symbol for radio reception for time signal transmitter DCF77
2. Symbol for active alarm function
3. Current moon phase
4. Date and week day acronym
5. Indoor temperature in °C or °F
6. Time
7. Hanging loop
   Operating buttons:
   • ‚ SET: activates setting mode, saves settings
   • ‚ ALARM: activates/deactivates alarm function
8. • ‚ UP: increases values
   • ‚ DOWN: reduces values
   • ‚ WAVE: Manually starting signal reception to the time signal transmitter
   • SNOOZE: interrupts the alarm for 5 minutes
9. Battery compartment
10. Fold out support foot

Start-up

For use, you will need two LR6 (AA), 1.5V batteries.

1. Push in a bit the closing flap and remove the lid of the battery compartment.
2. Insert 2 batteries of the type LR6 (AA)/1.5 V as depicted on the bottom of the battery compartment. Pay attention to the correct polarity (+/-).
3. Replace the lid of the battery compartment and fold it down. The closing flap must engage audibly.
   Once the batteries are inserted, the clock switches to the receiving mode, see next chapter.

Notes on changing the battery:

• ‚ Only use the type of battery that is specified in the "Technical Data".
• ‚ Always exchange all of the batteries at the same time.
• ‚ Dispose of batteries in an environmentally appropriate way (see "Disposal").

Receiving the time signal

When the batteries are inserted in the radio-controlled clock, all displays are shown for a brief moment and a beep is heard. The measured room temperature is displayed shortly afterwards.

The device then switches to receiving-mode, during which the number of radio waves indicates the quality of the reception: The more radio waves shown on the display, the better is the reception.
As soon as the signal has been received in sufficient strength, the display also shows

• ‚ the time,
• ‚ the date,
• ‚ the day of the week, and
• ‚ the current moon phase is shown.

The radio-controlled clock automatically switches to receiving mode several times every night. During this process, the displayed time is compared with that received from the time signal transmitter and, if necessary, corrected.
If a sufficiently strong signal has not been received, the radio-controlled clock will cancel the receiving process after a few minutes and the radio tower symbol goes out. The receiving process is started again at a later point in time.
In this case, the time proceeds as usual (beginning with the start time of "00:00").

Checklist when data is missing in the display

No data display from the time signal transmitter

1. Check whether the location of the radio-controlled clock is suitable, see "Choosing a location".
2. Restart reception manually, see "Manually starting signal reception".
3. Wait until the radio-controlled clock automatically switches to receiving mode at a later point in time. The reception is usually better at night.
4. Manually perform the settings if reception is not possible at your location, see "Setting the time and date manually".

Setting the time and date manually

If there is more than approx. 30 seconds between two pushes of a button, the setting process automatically ends and you will have to repeat it.

1. Press and hold the SET button until the indicator for the 12- and 24-hour time format blinks on the display.
2. Using the UP and DOWN buttons, set the desired time format ("12 Hr" or "24 Hr").
3. Press SET in order to save the settings. "00" flashes in the display for the time zone you are in ("00" is the default setting for the European mainland).
4. Proceed as previously described.
   • Press the UP or DOWN button to set the desired value.
   • Press SET each time to save the settings.
5. You should set the following:
   • Hours
   • Minutes
   • Date format
   • Year
   • Month
   • Day
   • Language (relates exclusively to the weekday indicator)
6. Finally, press SET to conclude the procedure.

Starting signal reception of the time signal manually

If the radio signal symbol to the left is no longer displayed, the radio signals from the time signal transmitter are no longer being received. The time indicator nevertheless continues precisely.

• Press the WAVE button. The signal reception is thus started manually.

Pay attention to the following:

• ‚ If the reception was not successful, the reception symbol fades out after a few minutes and the time on the display continues normally.
• ‚ Upon successful signal reception, the radio-controlled clock adjusts itself to the time of the time signal transmitter. If you have already carried out manual time and date settings, these will be automatically adjusted.

Choosing a location

NOTE on material damage

• ‚ Protect the radio-controlled clock from dust, shocks, extreme temperatures, direct sunlight and moisture. Only place the radiocontrolled clock in a dry, closed room.
• ‚ Maintain distance from TV sets, computers, and monitors. Base stations of cordless telephones should also not be in the immediate vicinity of the radio-controlled clock.

• ‚ Depending on your location, it may occur in rare individual cases that the radiocontrolled clock receives signals from another time signal transmitter or even alternately from two time signal transmitters. This is not a fault in the device. In this case, change the location for the radio-controlled clock.
• ‚ The weather, e.g. a heavy storm, can cause interference with the reception.
• ‚ Temporary shutoffs of the transmitter can sometimes happen, e.g. because of maintenance work.

Setting up/hanging the radio-controlled clock
The radio-controlled clock has a hanging loop and a fold-out stand on the back.

• Hang or place the radio-controlled clock as near as possible to a window. Here, the reception will generally be best.

About the time signal transmitter DCF77

This radio-controlled clock receives its radio signals from the time signal transmitter DCF77. This broadcasts the precise and official time of the Federal Republic of Germany on the long-wave frequency of 77.5 kHz.
The transmitter is located in Mainflingen near Frankfurt am Main and, with its range of up to 2000 km, supplies the majority of radio-controlled clocks in western Europe with the necessary radio signals.
As soon as the radio-controlled clock is supplied with power, it switches to receiving mode and searches for the signal from the transmitter DCF77. If the time signal is received in sufficient strength, the display shows the date, time and day of the week.
The radio-controlled clock switches on several times a day and synchronises the time with the radio signal from the transmitter DCF77. In the event the signal is not received, e.g. during a strong storm, the device continues to run precisely and then switches to receiving mode again at the next scheduled time.

Alarm

Setting the alarm time

1. Briefly press the ALARM button once.
   A beep will sound and a bell symbol will appear on the display.
2. Press and hold the ALARM button for a few seconds until "AL" is displayed and the alarm time indication blinks.
3. Using the UP and DOWN buttons, set the desired alarm hour.
   If you press and hold UP or DOWN, the displayed values will be increased or decreased more quickly.
4. Press ALARM.
   The minute indicator for the alarm time blinks on the display.
5. Using the UP and DOWN buttons, set the desired alarm minute.
6. Finally, press ALARM to end the procedure.

Being awakened

At the set time you will be woken by an alarm signal, which will become more intense as the waking time increases.

Interrupting the alarm for 24 hours

• Press the UP, DOWN or WAVE buttons to interrupt the alarm.
  After 24 hours, the alarm will be triggered again.

Auto-stop function
If you do not press a button, the alarm switches off automatically after 2 minutes. After 24 hours, the alarm will be triggered again.

Repeat alarm (snooze function)

• Press the SNOOZE button once when the alarm signal sounds.
  The alarm signal is cut off and the bell symbol and z^Z are blinking on the display.

After 5 minutes, the device switches on again and wakes you up again. This procedure can be repeated multiple times.

Switching the alarm function off and on
Starting from normal time display:

• Press the ALARM button once.

Once the alarm symbol goes out, the alarm function is deactivated and you will not be alarmed any more. Pressing ALARM again reactivates the alarm function.

Other functions

Change temperature unit

• Press the DOWN button to display the temperature in °Celsius or °Fahrenheit.

Switching between summer and winter time

Switching between summer and winter time, or vice versa, takes place automatically with good time signal reception.
When daylight saving time is active, the display shows "DST" (Daylight Saving Time).

Resetting the radio-controlled clock to factory setting

Reset the radio-controlled clock to its factory setting if the display shows unusual or obviously incorrect values.

1. Remove the batteries from the battery compartment and wait a moment.
2. Re-insert the batteries.
   Pay attention to the correct polarity of the batteries (+/-).
3. Proceed as described in the chapter "Receiving the time signal".

Cleaning

NOTE on material damage

• Do not immerse the clock in water or other liquids.
• Never use harsh or abrasive cleaning agents or the like to clean the clock. If you do, the surface could be scratched.

• Remove dust from the radio-controlled clock by a soft, dry cloth as needed. The glass can also be cleaned with commercially available glass cleaners.

Fault/Remedy

Safety

• ‚ This item can be used by children 8 years of age and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge, if they are supervised or have been instructed in the safe use of the item and understand the dangers that may arise.
• ‚ Children must not play with the item.
• ‚ Cleaning and user maintenance must not be carried out by children, unless they are 8 years of age or older and are being supervised.
• ‚ Batteries, when swallowed, can be life-threatening. Therefore, keep the clock and battery out of the reach of small children. If a battery is swallowed, medical assistance must be sought immediately.

for children

• ‚ Keep children away from packaging material. Risk of choking if swallowed. Also beware that children do not pull the packaging material over their heads.

RISK of fire/burning and/or explosion

• ‚ Risk of explosion if batteries are improperly exchanged. Replace the batteries only with one of the same or a similar type. Pay attention to the "Technical Data".
• ‚ Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited. Otherwise there is an increased risk of explosion and of leakage; furthermore, gases may escape.
• ‚ Avoid contact of the battery fluid with skin, eyes, and mucosa. If you do come into contact with it, rinse the affected areas immediately and thoroughly with clean water and consult a doctor immediately.

BEWARE of material damage

• ‚ Protect the clock from strong impacts and vibrations.
• ‚ Remove the batteries from the clock, if these are used up or you are not going to use the clock for a long period. You will thus avoid damage that may result from the leakage of battery acid.
• ‚ When inserting and changing batteries, pay attention to the correct polarity (+/-).
• ‚ Do not subject the batteries to extreme conditions by, for example, storing them on heaters or under direct sunlight.
• Increased risk of leakage!
• ‚ Clean the battery and device contacts, as needed, before inserting the battery.
• ‚ Do not make any modifications to the item. Only allow repairs to be carried out at a specialist workshop. Repairs carried out incorrectly can considerably endanger the user.

Intended Use

This DCF radio-controlled clock is intended to display the time. It also displays other data (e.g. the room temperature) and has an alarm function. The item is designed for private use and for use in dry areas.

Technical Data

Model:	DCF Radio-controlled clock CK 1702, CK 2307-1, CK 2307-2
Battery:	2x LR6 (AA), 1.5 V
Rated current:	< 55 mA
Temperature measuring range:	-9.9°C ~ 59.9°C (14°F ~ 140°F)
Distributor (no service address):	GRENDS GmbH Stahltwiete 23 22761 Hamburg, Germany
