GENERAL DESCRIPTION

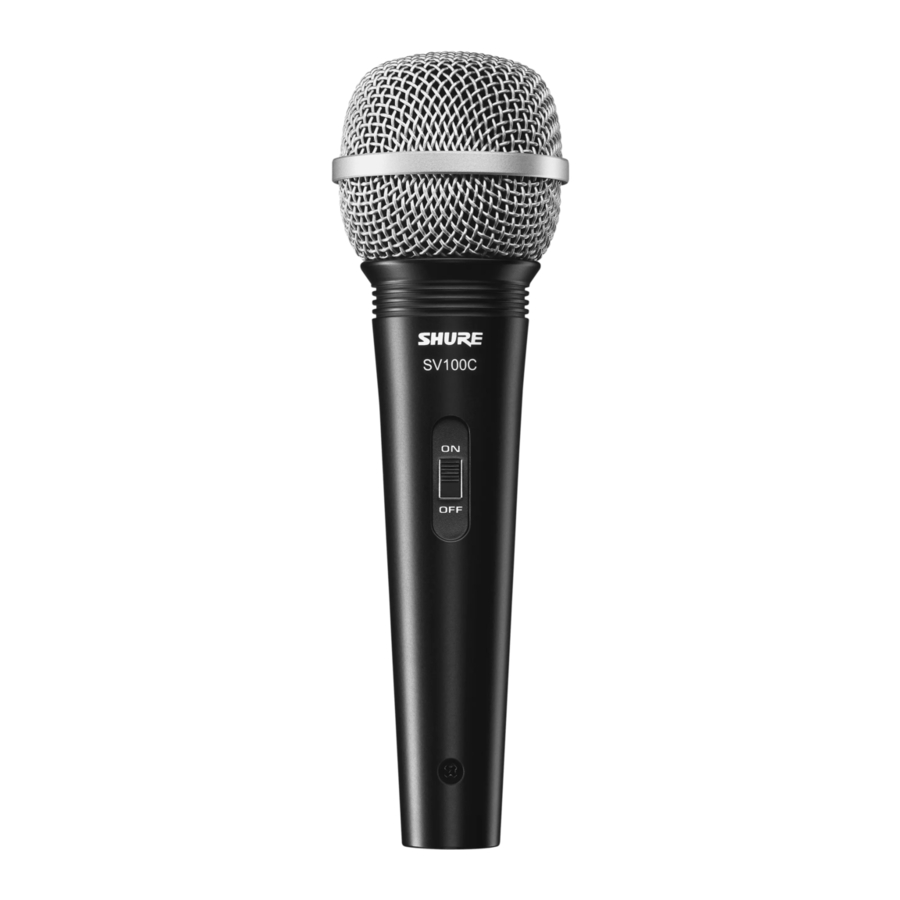

This Shure microphone can be used for karaoke, sound reinforcement, and recording applications. Its wide frequency response, unidirectional pickup pattern, and high output make vocal performances sound clear and vibrant. It is also suitable for instrument pickup.
FEATURES
- Unidirectional (cardioid) pickup pattern to minimize feedback (howling)
- Durable metal construction
- Wide frequency response
- Neodymium magnet for high output
- On/Off switch
CONNECTING AND DISCONNECTING THE CABLE
DEVICE USE
Turn on the microphone by sliding the switch to "ON". Turn off the microphone by sliding the switch to "OFF". Keep the switch in the "OFF" position while connecting or disconnecting the microphone from the karaoke machine, mixer or other device.
SPECIFICATIONS
| Type | Dynamic (moving coil) |
| Frequency Response | 50 to 15,000Hz |
| Polar Pattern | Cardioid |
| Output Impedance | 600 Ω |
| Sensitivity (at 1 kHz, open circuit voltage) | −52 dBV/Pa (2.5 mV) 1 Pascal=94 dB SPL |
| Weight | Net: 244 g (0.54 lb) |
| Connector | Three-pin professional audio (XLR), male |
ACCESSORIES AND PARTS
Optional Accessories
