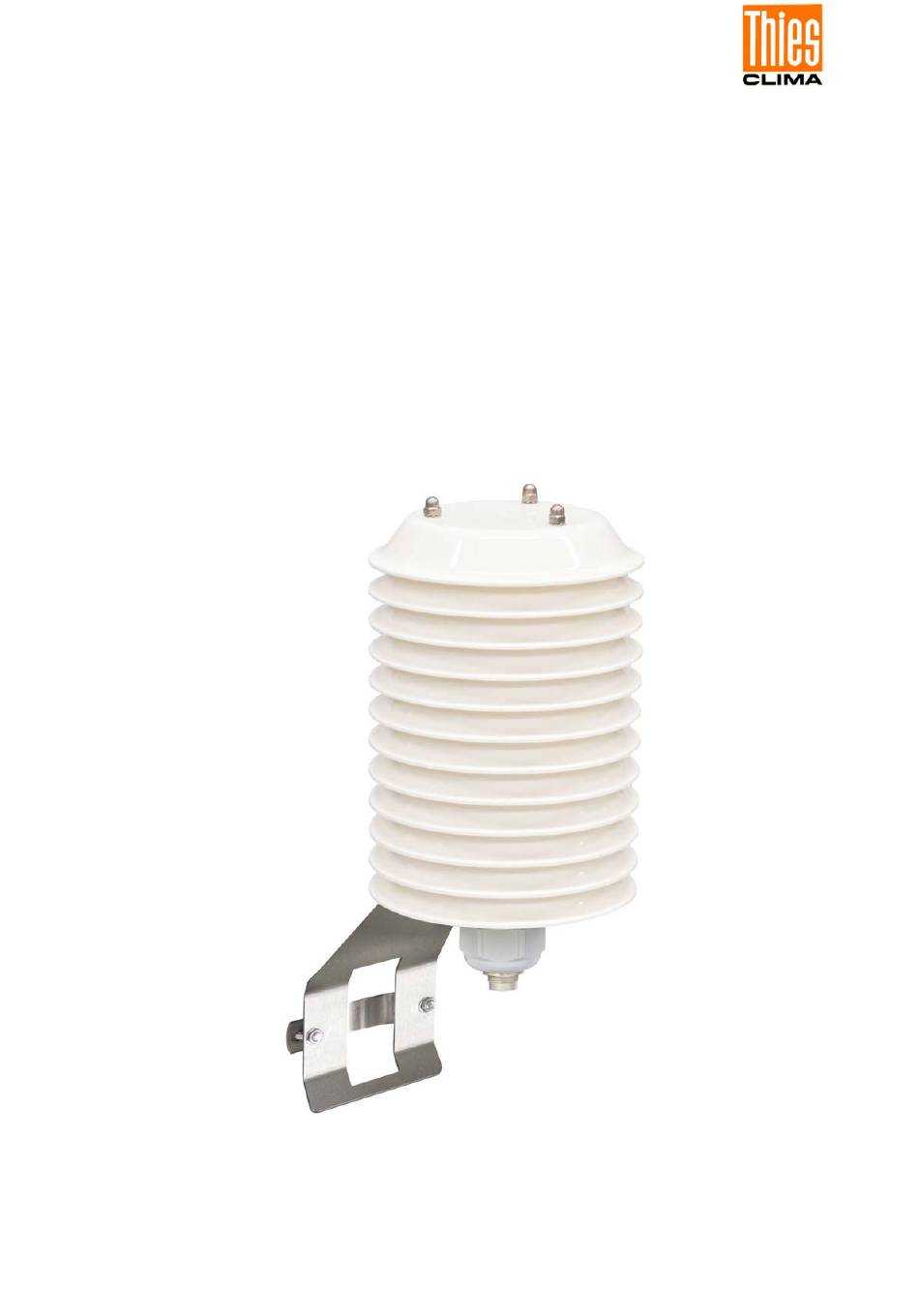

- Page 1 Particulate Matter-Hygro-Thermo-Baro Sensor Compact Instructions for Use 1.1007.54.78x From software version V3.13 Doc. No. 022032/07/24 T H E W O R L D O F W E A T H E R D A T A...
- Page 2 Safety Instructions • Before operating with or at the device/product, read through the operating instructions. This manual contains instructions which should be followed on mounting, start-up, and operation. A non-observance might cause: - failure of important functions - endangerment of persons by electrical or mechanical effects - damage to objects •...
-
Page 3: Table Of Contents
Table of contents Models ..........................4 Application ........................5 Setup and Mode of Operation ..................5 Measurements at high humidity and fog ................6 Recommended Installation Site ..................7 Electrical Installation ....................... 8 Connection of the measurement electronics .............. 8 6.1.1 Connection Diagram .................. -
Page 4: Models
11.2 Telegram 2 ......................36 11.3 Telegram 3 ......................38 11.4 Telegram 4 ......................39 11.5 Telegram 5 ......................40 11.6 Telegram 6 ......................41 12 Technical Data .......................42 13 Dimensional Drawing .....................44 14 Accessories (optional) ....................45 15 Appendix ........................45 15.1 Calibration of the Sensor .................. -
Page 5: Application
2 Application The Particulate matter-hygro-thermo-baro sensors from our COMPACT series are designed to measure the particulate matter values PM10 and PM 2.5, relative humidity, air temperature and barometric air pressure. The sensors are primarily intended for use in distributed particulate matter measurement net- works outdoors. -
Page 6: Measurements At High Humidity And Fog
The absolute air pressure is measured at the altitude of the sensor (measuring altitude, see drawing). Measuring altitude Particulate-Hygro- Thermo-Baro / 1.1007.54.78x (Cable end) Par- ticulate-Hygro- Thermo-Baro / 1.1007.54.78x Figure 1: Example Pressure Equalization The ambient air is sucked in at the lower end of the device for the particulate matter meas- urement. -
Page 7: Recommended Installation Site
Particulate matter meas- Description urement quality indica- Very high concordance High concordance Possibly reduced concord- ance Probably reduced concord- ance Undefined / Error Table 1: Particulate matter measurement quality indicator 5 Recommended Installation Site The particulate-hygro-thermo-baro sensor must be mounted at a location that is representa- tive for climate measurements. -
Page 8: Electrical Installation
6 Electrical Installation The electrical installation of the particulate matter-hygro-thermo-baro sensor is divided into two parts. The measuring electronics are connected via a plug connection, which is used both for the power supply and for communication. The ventilation of the weather and radia- tion protection is connected via a cable that is permanently connected to the device. -
Page 9: Connection Diagram
A cable for the measurement electronics is included. If a different cable is used, respect the following points. with cable assembly from Thies Clima. Depending on the variant, the unused cores may not be pre- sent. © Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 022032/07/24 Phone +49 551 79001-0 ·... -
Page 10: Plug And Cable Mounting (Optional)
The cable to be connected should have 4 wires, minimal wire cross-section 0.25mm² (AWG 23), cable diameter 6 … 8mm, resistant to ultraviolet rays, overall shielding. The following procedure is recommended for using the cable shield: Connect the cable shield between the sensor and the data acquisition system (e.g., datalog- ger) on both sides. -
Page 11: Connection Of The Ventilation
6.2 Connection of the ventilation 6.2.1 Cable assignment The permanently connected cable for the ventilation is assigned as follows: Figure 3: Ventilation connection diagram 6.2.2 Fan status The status output indicates the condition of the fan. A high signal expresses that the fan is working correctly, if the output is 0V there is a malfunction. -
Page 12: Maintenance
7 Maintenance The particulate-hygro-thermo-baro sensor compact is supplied adjusted and calibrated. The weather and radiation protection contains a plug-in module for measuring relative humidity and air temperature (Hygro-Thermo module). The PT 1000 sensor is optimally aligned at the factory. It should not be bent any other way. Although dust deposits do not damage the humidity sensor, they may impair the dynamic behaviour. - Page 13 Do not touch the highly sensitive hygro-thermo sensor element on the sensor surface. Sensor PT1000 Sensor surface Protective jacket Figure 7: Hygro-thermo Measuring Element The white protective jacket on the hygro-thermo sensor element must not be removed. If used with a filter cap, this should also be cleaned or replaced as required. When the pro- tective cap or filter cap has been removed, the Hygro-Thermo module can also be pulled up to clean or replace it.
-
Page 14: Firmware Update
Particular attention must be paid to the correct seating of the hygro-thermo module and the protective or filter cap, as these also ensure the tightness of the device. The particulate matter sensor does not have to be serviced, but is automatically cleaned. Sensor cleaning only takes place regularly when the power supply is uninterrupted. -
Page 15: Interface
10 Interface The interface to the sensor consists of an RS485 connection (half duplex mode) with the fol- lowing interface parameters • 9600 baud • 8 data bits • No parity bit • 1 stop bit • Data in ASCII format (command interpreter: THIES) •... - Page 16 Parameter: Parameter value with 1 to 10 places (decimal value in ASCII format di- rectly following the command without blanks) <CR>: Carriage return (13 ; 0x0D) The identification number 'id' can be used to operate several devices together in the bus sys- tem.
-
Page 17: Telegram Formats
Examples: command. 00ID00005<CR> Echo telegram (Parameter valid and password OK). !05ID00005<CR><LF> command. 00ID00004<CR> Echo telegram (Parameter valid but key incorrect). !00ID00000<CR><LF> command. 00EFS1<CR> Echo telegram (Parameter valid but key incorrect) !00CE00008<CR><LF> command. 00OL1000<CR> Echo telegram (parameter incorrect but key correct). !00CE00008<CR><LF>... -
Page 18: Generation Of The Check Sum
Calculation of the checksum, composition of the status word and the control characters/sepa- rators used in the telegrams are described below. Control characters: CR – Carriage Return (13 ; 0x0D) LF – Line Feed (10 ; 0x0A) STX – Start of Text (2 ;... -
Page 19: Command Br
Command Initial value MODBUS Description Password Factory Register setting address Read Write 40005 Baud rate Without User Calibration Status Without 40013 Command interpreter Without User 40045 Manual particulate matter sensor Without User maintenance Extended error status Without User 40001 Quick start Without User 40003... -
Page 20: Command Cf
10.3.2 Command CF <id>CF<parameter><CR> Calibration status Access: Read Description: The calibration status is queried with the CF command. In the case of calibrated hygro-thermo measuring elements, the cali- bration status is set to one at the factory. When replacing the hygro-thermo measuring element later, the error "invalid re- placement of hygro-thermo measuring element"... -
Page 21: Command Ci
10.3.3 Command CI <id>CI<parameter><CR> Selection of the command interpreter Access: Read / write Description: The command interpreter is set with the command CI. Note: If the identification number (ID) is greater than 98, it is automatically set to 0 when switching to the THIES interpreter! Note: If the identification number (ID) is 0, switching to the MODBUS-RTU inter- preter is not possible! -
Page 22: Command Efs
10.3.5 Command EFS <id>EFS<parameter><CR> Status of the sensor (Extended Fault Status) Access: Read Description: The command returns the status of the Particulate Matter - Hy- gro-Thermo-Baro sensor. For each module of the device the tel- egram sends a line with the name of the module followed by the status. - Page 23 Particulate matter error: Bit 0: Sensor not found Bit 1: Readings delayed Bit 2: Fan speed out of range Bit 3: Fan error Bit 4: LASER error Hygro thermo module error: Bit 0: Module initialization error Bit 1: I2C error Bit 2: EEPROM read error Bit 3: EEPROM Page1 invalid Bit 4: Module mode error...
- Page 24 Temperature and humidity errors: Bit 0: Measured value initialized but not yet a valid measured value Bit 1: write timeout Bit 2: read timeout Bit 3: CRC error Bit 4: calculation error Bit 5: Diagnostic mode, measurement invalid Bit 6: Calibration value invalid Bit 7: Invalid self-calibration parameter (humidity only) Bit 8: Initialization error 2 Bit 9: Calculation error 2...
-
Page 25: Command Fb
10.3.6 Command FB <id>FB<parameter><CR> Quick start mode Access: Read / write Description: The command is used to select the quick start mode or to query the set mode. In the quick start modes, the bootloader immediately jumps into the firmware and does not output any data. If the quick start mode is inactive, the bootloader outputs its software version, 9 times the character C and the current settings of the parame- ters BR, SF, CI and ID. -
Page 26: Command Ky
10.3.8 Command KY <id>KY<parameter><CR> Key/password Access: Read / write Description: The access level is set with this command. After the device starts, the access level User (read-only) is active. Other levels return to this level either after 120 s without input or by entering the command KY0. -
Page 27: Command Or
10.3.10 Command OR <id>OR< > Telegram output interval (Output Rate) parameter Access: User mode Description: With independent telegram output this parameter is used to specify the time interval in which telegrams are sent via the se- rial interface. Specification is in milliseconds. If the output speed is higher than the data can be transmitted, the available output is discarded. -
Page 28: Command Rd
10.3.12 Command RD <id>RD<parameter> Response Delay Access: Read / write Description: With this command the minimum delay between the reception of a command and the sending of the answer telegram is con- figured. Range of values: 0 ... 1000 Initial value: Unit: 10.3.13 Command RS <id>RS<parameter><CR>... -
Page 29: Command Sf
10.3.14 Command SF <id>SF<parameter><CR> Frame format Access: Read / write Description: The frame format of the interface is set with the command SF Parameter type: Unsigned integer Parameter: 8N1 (8 data bits, no parity, 1 stop bit) 8N2 (8 data bits, no parity, 2 stop bits) 8E1 (8 data bits, even parity, 1 stop bit) 8E2 (8 data bits, even parity, 2 stop bits) 8O1 (8 data bits, odd parity, 1 stop bit) -
Page 30: Command Sn
10.3.16 Command SN <id>SN<parameter><CR> Serial number Access: Read Description: The command enables the serial number to be read. Parameter type: Parameter: Type Return value: Unsigned integer Return value: xxxxxxxxxx: serial number Range of values: xxxxxxxxxx Initial value: 10.3.17 Command TA <id>TA<parameter><CR>... -
Page 31: Command Tr
10.3.18 Command TR <id>TR<parameter><CR> Measurement data request Access: Read Description: The command initiates the transmission of the current data tele- gram. The data telegrams are described in section 11 Data Tel- egrams. Parameter type: Unsigned integer Parameter: Query data telegram 1 …... -
Page 32: Command Interpreter Modbus Rtu
10.4 Command Interpreter MODBUS RTU If the MODBUS RTU command interpreter is selected, the transferred bytes are interpreted according to the MODBUS specification (http://www.modbus.org/). The sensor represents a MODBUS slave here. Data transfer takes place in packets known as frames, max. 256 bytes in size. Each packet contains a 16bit CRC checksum (Initial value: 0xffff). -
Page 33: Measured Values (Input Register)
10.4.1 Measured Values (Input Register) All measured values of the sensor occupy 32bit, i.e. 2 MODBUS register addresses. The fol- lowing table shows the assignment of the measured value to an register address, with the measured values being sorted as given below: •... - Page 34 (1 Decimal place, e.g. 234 ≙ 31613 Particulate matter density 1/cm³ Value / 10 up to 2,5 µm (35025) 23.4 1/cm³) (1 Decimal place, e.g. 567 ≙ 31615 Particulate matter density 1/cm³ Value / 10 up to 4 µm (35027) 56.7 1/cm³) (1 Decimal place, e.g. 700 ≙ 31617 Particulate matter density 1/cm³...
-
Page 35: Commands (Holding Register)
(1 Decimal place, e.g. 567 ≙ 35025 Particulate matter density 1/cm³ Value / 10 up to 2,5 µm (61613) 56.7 1/cm³) (1 Decimal place, e.g. 600 ≙ 35027 Particulate matter density 1/cm³ Value / 10 up to 4 µm (31615) 60.0 1/cm³) (1 Decimal place, e.g. 673 ≙ 35029 Particulate matter density 1/cm³... -
Page 36: Data Telegrams
11 Data Telegrams 11.1 Telegram 1 The sensor responds to the command "00TR1\r" with the compact measurement data tele- gram. The telegram contains the most important measured values including the particulate matter values PM2.5 and PM10. The telegram structure is shown in the following table: Position Length Sample... - Page 37 Position Length Sample Description 1012.3 Reduced air pressure at sea level QNH in hPa (see command SH) Separation sign (’;’) 045.3 Rel. humidity in % Separation sign (’;’) +24.3 Air temperature in degrees Celsius Separation sign (’;’) +03.4 Dew point degrees Celsius Separation sign (’;’) 011.5 Abs.
-
Page 38: Telegram 3
11.3 Telegram 3 The sensor responds to the command "00TR3\r" with the complete measurement data tele- gram. The telegram structure is shown in the following table: Position Length Sample Description Start sign (start of text). Identification number (ID) xx: 0 ... 98 Separation sign (’;’) 1002.3 Absolute air pressure QFE in hPa... -
Page 39: Telegram 4
Position Length Sample Description Line feed End of text Table 10: Data telegram 3 11.4 Telegram 4 The sensor responds to the command "00TR4\r" with the complete data telegram. In addition to the measurement values, internal supply voltage is included. The telegram structure is shown in the following table: Position Length... -
Page 40: Telegram 5
Position Length Sample Description Separation sign (’;’) Particulate matter measurement quality indicator (see chapter 4 Measurements in high humidity and fog) Separation sign (’;’) 0000 Sensor status (see status information) Checksum identifier (*) Exclusive or linked checksum in hexadecimal representation x: high nibble checksum in HEX y: low nibble checksum in HEX Carriage return... -
Page 41: Telegram 6
11.6 Telegram 6 The sensor responds to the "00TR6\r" command with the complete data telegram. This tele- gram specifies the temperature and pressure values with one more decimal place and should be used to calibrate the hygro, thermo and baro sensors. The telegram structure is shown in the following table: Position Length... -
Page 42: Technical Data
Position Length Sample Description Exclusive or linked checksum in hexadecimal representation x: high nibble checksum in HEX y: low nibble checksum in HEX Carriage return Line feed End of text Table 12: Data telegram 6 12 Technical Data Relative Humidity Measuring range 0 …... - Page 43 Particulate matter: 0.1µg/m³ Measurement rate 1 s Accuracy See above Supply voltage Voltage: 12 ... 30V DC Measuring electronics via plug socket Ventilation via permanently connected cable Power consumption Measurement electronics: typ. 450mW max. 500mW Ventilation: Further information Cable for measurement LiYCY 4 x 0.25mm²...
-
Page 44: Dimensional Drawing
13 Dimensional Drawing [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [KS] 1.1007.54.78x Ø120 317 Ø35-50 Ø15-21 H = Sensor diameter; KS = Key size in mm © Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 022032/07/24 Phone +49 551 79001-0 ·... -
Page 45: Accessories (Optional)
14 Accessories (optional) Replacement hygro-thermo 510487 Replacement humidity and temperature measuring module measuring element Please contact us for other accessories such as cables, power supply units, masts, as well as for additional mast- or system-constructions. 15 Appendix 15.1 Calibration of the Sensor It is possible to calibrate the sensor for the measured values temperature, rel. - Page 46 15.4 Table and Figures Overview Table overview: Table 1: Particulate matter measurement quality indicator ............ 7 Table 2: Socket assignment of the connection cable 510641 ..........9 Table 3: Status word ......................18 Table 4: List of commands ....................19 Table 5: MODBUS Frame ....................32 Table 6: MODBUS Exceptions .....................32 Table 7: MODBUS Input Register ..................35 Table 8: Data telegram 1 ......................36...
-
Page 47: Ec-Declaration Of Conformity
16 EC-Declaration of Conformity Manufacturer: Adolf Thies GmbH & Co. KG Hauptstraße 76 37083 Göttingen, Germany http://www.thiesclima.com Product: FineDust-Hygro-Thermo-Baro Sensor Compact Doc. Nr. 2019-45076_CE Article Overview : 1.1007.54.780 1.1007.54.781 The indicated products correspond to the essential requirem ent of the follow ing European Directives and Regulations: 2014/30/EU 26.02.2014 DIRECTIVE 2014/30/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 26 February 2014 on the harm onisation of the law s of... -
Page 48: Ca-Declaration Of Conformity
17 UK-CA-Declaration of Conformity Manufacturer: Adolf Thies GmbH & Co. KG Hauptstraße 76 37083 Göttingen, Germany http://www.thiesclima.com Product: FineDust-Hygro-Thermo-Baro Sensor Compact Doc. Nr. 2019-45076_CA Article Overview : 1.1007.54.780 1.1007.54.781 The indicated products correspond to the essential requirem ent of the follow ing Directives and Regulations: 1091 08.12.2016 The Electrom agnetic Com patibility Regulations 2016... -
Page 49: More Information / Documents As Download
18 More Information / Documents as download Further information can be found in the short instructions for use. This document and also the instruction for use are available for download under the following links. Short instruction for use https://www.thiesclima.com/db/dnl/1.1007.54.78x_Particulate_Hygro_Thermo_Baro_Com- pact_FirstSteps_eng Instruction for use https://www.thiesclima.com/db/dnl/1.1007.54.78x_Particulate_Hygro_Thermo_Baro_Com- pact_eng.pdf... - Page 50 Please contact us for your system requirements. We advise you gladly. ADOLF THIES GMBH & CO. KG Meteorology and environmental metrology Hauptstraße 76 · 37083 Göttingen · Germany Phone +49 551 79001-0 · Fax +49 551 79001-65 info@thiesclima.com www.thiesclima.com © Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 022032/07/24 Phone +49 551 79001-0 ·...
