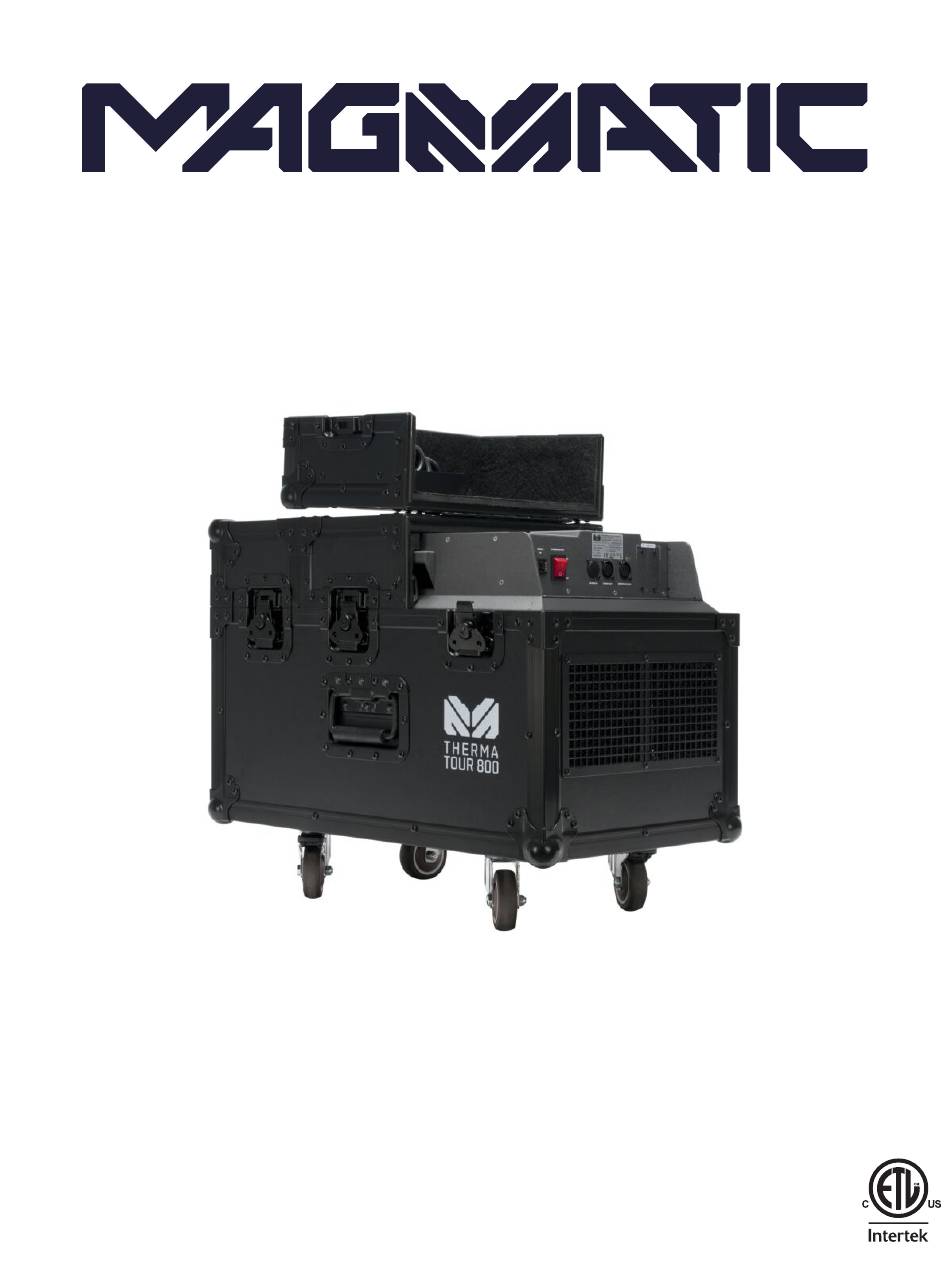

- Page 1 THERMA TOUR 800 User Manual US SKU#: TST801 UPC#: 810008261552 5011471...
- Page 2 MAGMATIC EFFECTS and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
CONTENTS General Information Limited Warranty (USA Only) Warranty Returns (USA Only) Safety Guidelines Overview Set Up Remote Control Remote Device Management (RDM) Control Panel System Menu Preset Mode DMX Traits Trouble Shooting Cleaning & Maintenance Specifications Dimensional Drawings FCC Statement... -
Page 4: General Information
BOX CONTENTS Twist-locking power cable (x1) Haze outlet cap (x1) CUSTOMER SUPPORT Contact MAGMATIC customer service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments, or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | sales@magmaticeffects.com... -
Page 5: Limited Warranty (Usa Only)
No accessories should be shipped with the product. If any accessories are shipped with the prod- uct, Magmatic Effects shall have no liability what so ever for loss and/or or damage to any such acces- sories, nor for the safe return thereof. -
Page 6: Warranty Returns (Usa Only)
(double-box and foam) that provides ample product protection for ground and/or air freight transit, and must be shipped freight pre-paid and insured to MAGMATIC in Los Angeles, CA or a MAGMATIC Authorized Service Center. The RMA number must be clearly written on the outside of the return box, and a brief description of the problem and the RMA number must be documented and included in the box. -
Page 7: Safety Guidelines
This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. Magmatic Effects is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the informa- tion printed in this manual. - Page 8 SAFETY GUIDELINES - CAUTION: Fog machines may set off smoke alarms! - Do not attempt installation and/or operation of this device without proper knowledge of how to do so. - Do not point or direct fog output in an unsafe direction. - Do not touch the front nozzle while the machine is in operation, or immediately after the device has been shut down, as the nozzle may get hot during operation.
- Page 9 SAFETY GUIDELINES GROUNDING INSTRUCTIONS This product must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This product is equipped with a cord that includes a grounding wire with an appropriate grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinanc- WARNING –...
-
Page 10: Overview
OVERVIEW 1. Control Panel Lid 9. Power Switch 2. Haze Outlet/Filler Lid 10. Cooling Vent 3. Directional Blower 11. DMX In 4. Haze Outlet w/ Cap 12. DMX Out 5. Tank Fill 13. Wired Remote Port 6. Tank Level Gauge 14. -
Page 11: Set Up
Never run the device on anything other than purified water or an approved, MAGMATIC branded fluid, as doing so can result in severe damage to your device. 5. Plug the device into a matching power supply and flip the power switch to the ON position. -
Page 12: Remote Control
REMOTE CONTROL This unit can be operated using the MagRemote VIDI remote control, which is a 4-pin, wired remote that can be used to control the volume, intensity, duration, and interval. Please note that the MagRe- mote VIDI is a universal remote, and some remote functions may not be applicable to all units. To operate the device using this remote, simply connect the remote’s 4-pin male connector to the matching 4-pin female port on the back of the unit, which is labeled “Remote In.”... -
Page 13: Remote Device Management (Rdm)
REMOTE DEVICE MANAGEMENT (RDM) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems. Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data standard for lighting, allowing the DMX systems of the fixtures to be modified and monitored remotely. -
Page 14: Control Panel
CONTROL PANEL This unit includes a system menu with an easy to navigate touch screen control panel where all neces- sary settings and adjustments are made. When first powering on the machine, the main menu will be displayed (see Main Menu Screen below). Press the main menu icon you would like to access. -
Page 15: System Menu
SYSTEM MENU DMX Addr 1 - 512 DMX address etting 1-Ch DMX Mode DMX Mode Setting DMX SET 3-Ch Displays name of phone when phone MagApp Name 0 - xxxxx is connectedly to the device via MagApp First four digits of password must be “0000”. - Page 16 SYSTEM MENU Never Set period of inac- 1min LCD Set Screen OFF tivity before screen 2min turns off 5min 10min 20min Magfly Channel Magfly Channel 0 - 14 setting Magfly Set* Magfly On / Off Magfly switch Connected PERSONALITY MagRF module fre- MagRF Learn* (continued) Connection Failed...
- Page 17 SYSTEM MENU Preset 1 Duration: 40 min Interval: 20 min Fog: 100% Fan: 100% Preset 2 Duration: 30 min Interval: 15 min Fog: 100% Fan: 100% Preset 3 Duration: 20 min Interval: 10 min Fog: 100% Use triangle icon to Fan: 100% PRESET start or stop...
- Page 18 SYSTEM MENU MagApp not con- Null nected to another device MagApp connected Phone to phone MagApp Connect MagApp connected Route to router MagApp module not installed Current IP set by MagApp IP No / 0 ~ 255, 0 ~ 255, 0 ~ 255, 0 ~ 255 the user Current MagFly MagFly Ch.
-
Page 19: Preset Mode
PRESET MODE Preset Mode Duration Interval Fog Output Fan Intensity 40 min 20 min 100% 100% 30 min 15 min 100% 100% 20 min 10 min 100% 100% 10 min 5 min 100% 100% 5 min 5 min 100% 100% PRESET SCREEN... -
Page 20: Dmx Traits
DMX TRAITS CHANNEL VALUES FUNCTION 1-CH 3-CH 000 - 005 Off 006 - 255 On Duration 000 - 005 Off (0s) 006 - 255 On, 1s - 250s (steps of 1s) Interval 000 - 005 Off (0s) 006 - 255 On, 10s - 2500s (steps of 10s) -
Page 21: Trouble Shooting
If all the above factors do not appear to be causing the issue, and the unit still fails to operate correctly, it will require service. Please contact Magmatic Effects for assistance. -
Page 22: Cleaning & Maintenance
It is highly advisable to run the machine at least once every 3-4 months when stor- ing for long periods of time. Long periods of inactivity can severely shorten the life of your device. Only run Magmatic’s Atmosity fluid (SKU# ARH or AAH) through your machine. - Page 23 CLEANING & MAINTENANCE SILENCER REPLACEMENT 1. Remove the top cover of the flight case and 2. Position the device with its side facing towards remove the device. Set it down in a stable you, and the fan openings facing to the right, surface, making sure that the surface has a as shown below.
-
Page 24: Specifications
SPECIFICATIONS KEY FEATURES SIZE / WEIGHT 800 Watt low power consumption Length: 24.45 in. (621.13mm) Over 30 hours of run time Width: 15.34 in. (389.63mm) Haze lasting up to 3 hours after the machine is off Height: 19.87 in. (504.76mm - With Casters) Rugged mobile road case design Weight: 93 lbs. -
Page 25: Dimensional Drawings
DIMENSIONAL DRAWINGS Dimensions may not be drawn to scale. -
Page 26: Fcc Statement
F C C S TAT E M E N T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 27 This page intentionally left blank.
