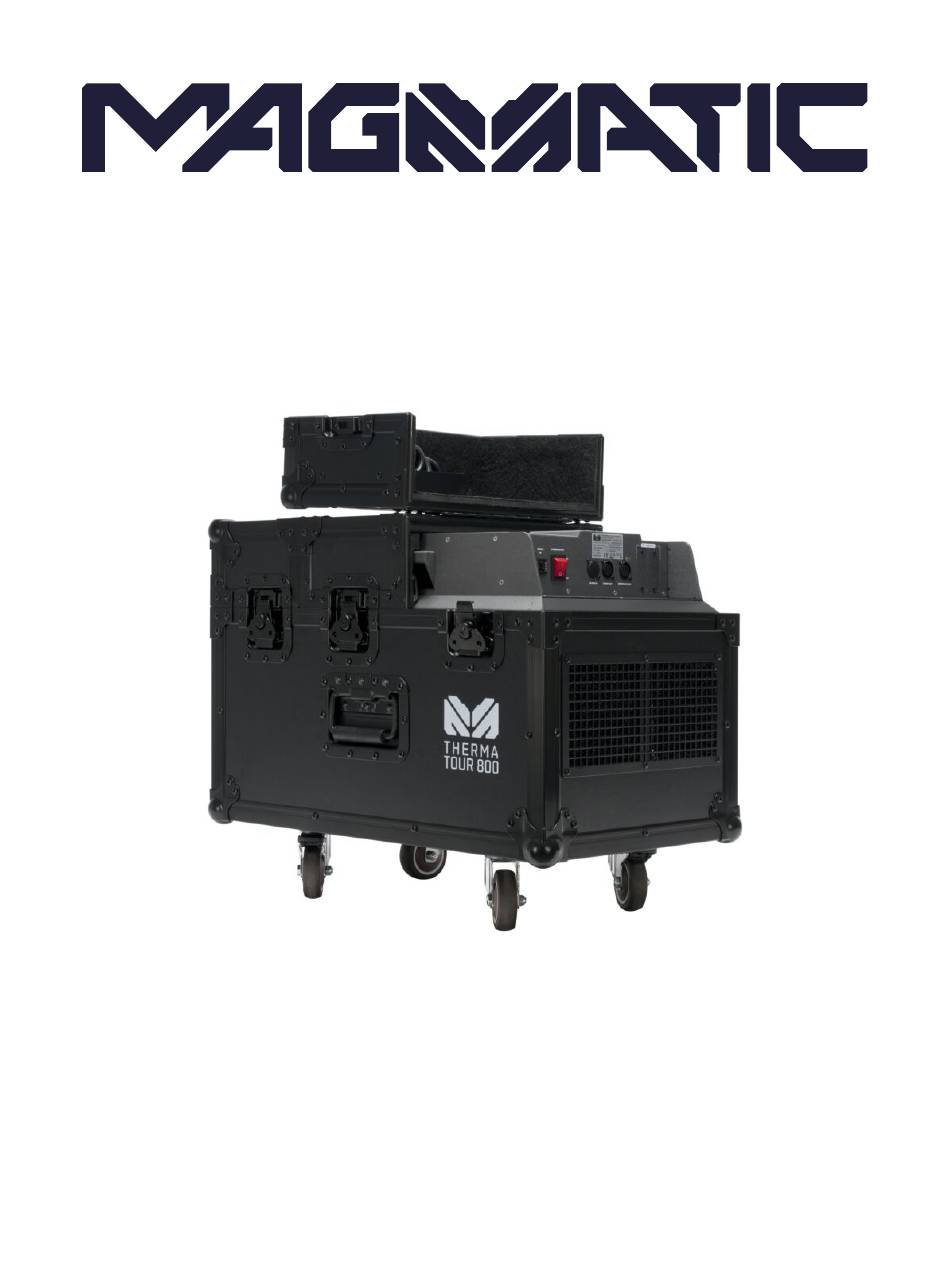

- Page 1 THERMA TOUR 800 User Manual US SKU#: TST801 UPC#: 810008261552...
- Page 2 MAGMATIC EFFECTS and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
CONTENTS General Information Limited Warranty (USA Only) Warranty Returns (USA Only) Safety Guidelines Overview Set Up Control Panel System Menu Preset Mode DMX Traits Trouble Shooting | Cleaning & Maintenance Specifications Dimensional Drawings... -
Page 4: General Information
BOX CONTENTS Twist-locking power cable (x1) Haze outlet cap (x1) CUSTOMER SUPPORT Contact MAGMATIC customer service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments, or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | sales@magmaticeffects.com... -
Page 5: Limited Warranty (Usa Only)
No accessories should be shipped with the product. If any accessories are shipped with the prod- uct, Magmatic Effects shall have no liability what so ever for loss and/or or damage to any such acces- sories, nor for the safe return thereof. -
Page 6: Warranty Returns (Usa Only)
(double-box and foam) that provides ample product protection for ground and/or air freight transit, and must be shipped freight pre-paid and insured to MAGMATIC in Los Angeles, CA or a MAGMATIC Authorized Service Center. The RMA number must be clearly written on the outside of the return box, and a brief description of the problem and the RMA number must be documented and included in the box. -
Page 7: Safety Guidelines
This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. Magmatic Effects is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the informa- tion printed in this manual. - Page 8 SAFETY GUIDELINES - CAUTION: Fog machines may set off smoke alarms! - Do not attempt installation and/or operation of this device without proper knowledge of how to do so. - Do not point or direct fog output in an unsafe direction. - Do not touch the front nozzle while the machine is in operation, or immediately after the device has been shut down, as the nozzle may get hot during operation.
-
Page 9: Overview
OVERVIEW 1. Control Panel Lid 8. Breaker 2. Haze Outlet/Filler Lid 9. Power Switch 3. Directional Blower 10. Cooling Vent 4. Haze Outlet w/ Cap 11. DMX In 5. Tank Fill 12. DMX Out 6. Tank Level Gauge 13. Wired Remote Port 7. -
Page 10: Set Up
4. Fill the tank only with approved ATMOSITY fluid (SKU# ARH and AAH only), and replace the reservoir cap. Never run the device on anything other than an approved, MAGMATIC branded fluid, as doing so can result in severe damage to your device. -
Page 11: Control Panel
CONTROL PANEL This unit includes a system menu with an easy to navigate touch screen control panel where all neces- sary settings and adjustments are made. When first powering on the machine, the main menu will be displayed (see Main Menu Screen below). Press the main menu icon you would like to access. -
Page 12: System Menu
SYSTEM MENU DMX Addr 1 - 512 DMX address etting 1-Ch DMX Mode DMX Mode Setting DMX SET 3-Ch Displays name of phone when phone MagApp Name 0 - xxxxx is connectedly to the device via MagApp First four digits of password must be “0000”. - Page 13 SYSTEM MENU Never Set period of inac- 1min LCD Set Screen OFF tivity before screen 2min turns off 5min 10min 20min Magfly Channel Magfly Channel 0 - 14 setting Magfly Set* Magfly On / Off Magfly switch Connected PERSONALITY MagRF module fre- MagRF Learn* (continued) Connection Failed...
- Page 14 SYSTEM MENU Preset 1 Duration: 40 min Interval: 20 min Fog: 100% Fan: 100% Preset 2 Duration: 30 min Interval: 15 min Fog: 100% Fan: 100% Preset 3 Duration: 20 min Interval: 10 min Fog: 100% Use triangle icon to Fan: 100% PRESET start or stop...
- Page 15 SYSTEM MENU MagApp not con- Null nected to another device MagApp connected Phone to phone MagApp Connect MagApp connected Route to router MagApp module not installed Current IP set by MagApp IP No / 0 ~ 255, 0 ~ 255, 0 ~ 255, 0 ~ 255 the user Current MagFly MagFly Ch.
-
Page 16: Preset Mode
PRESET MODE Preset Mode Duration Interval Fog Output Fan Intensity 40 min 20 min 100% 100% 30 min 15 min 100% 100% 20 min 10 min 100% 100% 10 min 5 min 100% 100% 5 min 5 min 100% 100% PRESET SCREEN... -
Page 17: Dmx Traits
DMX TRAITS CHANNEL VALUES FUNCTION 1-CH 3-CH 000 - 005 Off 006 - 255 On Duration 000 - 005 Off (0s) 006 - 255 On, 1s - 250s (steps of 1s) Interval 000 - 005 Off (0s) 006 - 255 On, 10s - 2500s (steps of 10s) -
Page 18: Trouble Shooting | Cleaning & Maintenance
If all the above factors do not appear to be causing the issue, and the unit still fails to operate correctly, it will require service. Please contact Magmatic Effects for assistance. CLEANING & MAINTENANCE When storing your device, be sure to store in a cool area. -
Page 19: Specifications
SPECIFICATIONS KEY FEATURES 800 Watt low power consumption Over 35 hours of run time Haze lasting up to 3 hours after machine is off Rugged mobile road case design Soundproof insulation for indoor use DYNAMIC EFFECTS Output: 5600 cu.ft / Min External Visual Fluid Level Detection COMPATIBLE FLUID Atmosity ARH (Oil based fluid) -
Page 20: Dimensional Drawings
