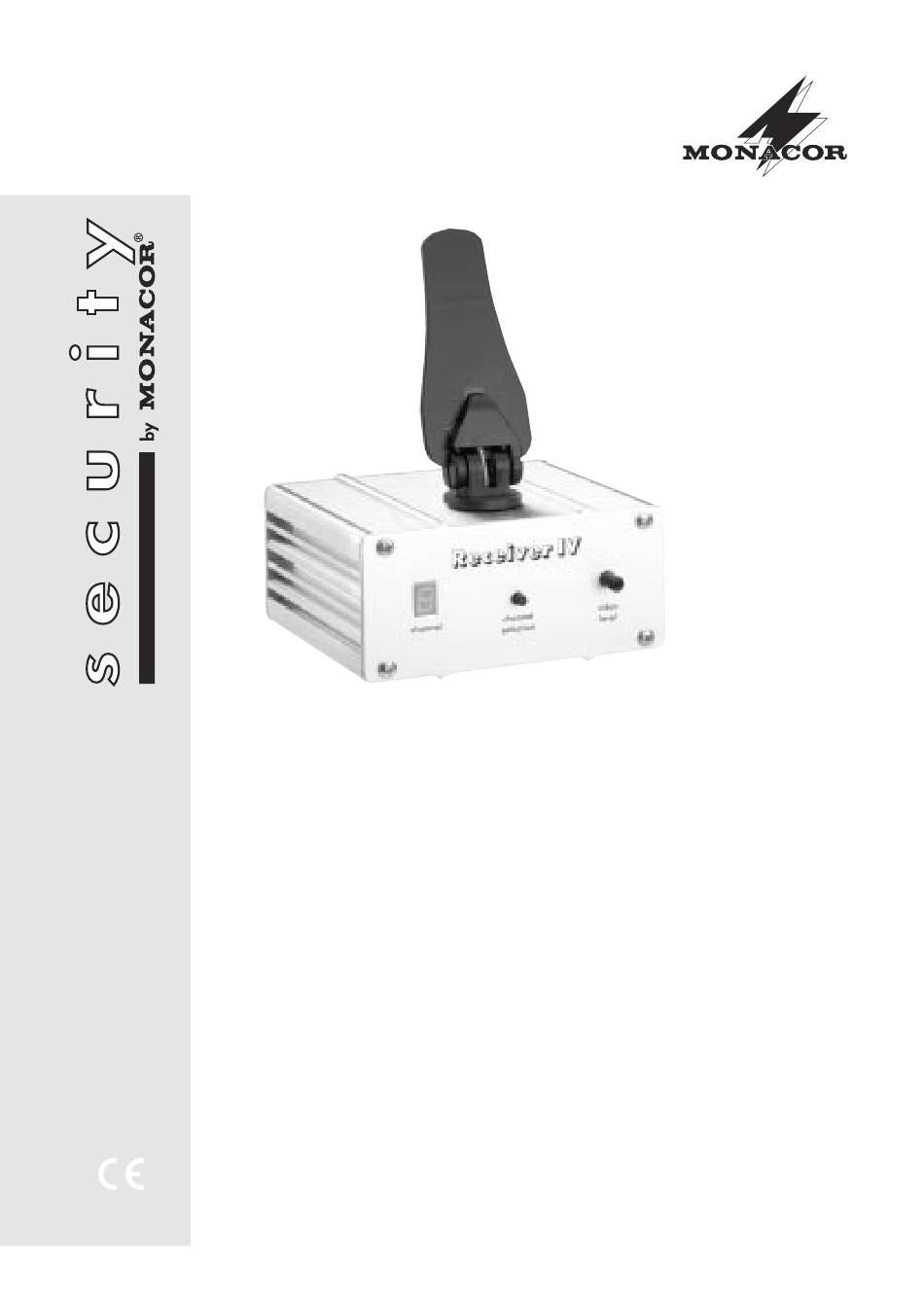

  • Page 1 2,4-GHz-FUNKSYSTEM EMPFÄNGER 2.4 GHz WIRELESS TRANSMISSION SYSTEM ® RECEIVER AV-3050R Best.-Nr. 19.5070 AV-3050RDX Best.-Nr. 19.5080 BEDIENUNGSANLEITUNG INSTRUCTION MANUAL MODE D’EMPLOI...
  • Page 3 Bevor Sie einschalten ... Wir wünschen Ihnen viel Spaß mit Ihrem neuen Gerät von MONACOR. Dabei soll Ihnen diese Bedienungsanleitung helfen alle Funktionsmög- lichkeiten kennen zu lernen. Die Beachtung der Anleitung vermeidet außerdem Fehlbedienun- gen und schützt Sie und Ihr Gerät vor eventuel- len Schäden durch unsachgemäßen Gebrauch.
  • Page 5 A audio B DC 7-30V antenna switching channel out max. 80 mA AV-3050R(DX) 0 – 15 V switching channel out Nutzung des Schaltkanals Use of the control channel Utilisation du canal de commutation...
  • Page 6: Übersicht Der Bedienelemente Und Anschlüsse

    Bitte klappen Sie die Seite 5 heraus. Sie sehen 3 Einsatzmöglichkeiten dann immer die beschriebenen Bedienelemente Die Empfänger AV-3050RDX und AV-3050R dienen in und Anschlüsse. Verbindung mit einem Sender oder einer Funk-Über- wachungskamera der Serie „AV-...“ von MONACOR zur drahtlosen Übertragung von Ton und Bild. Mit zusätzlichen Geräten aus dem Programm von...
  • Page 7: Technische Daten

    über die Buchse „antenna“ (6) ange- Antenne schlossen wird. Aus der Serie „DX-...“ von MONACOR AV-3050R: ..Platinenantenne sind verschiedene Antennen mit unterschiedlichem AV-3050RDX: ..extern über SMA-Buchse Antennengewinn verfügbar.
  • Page 8: Operating Elements And Connections

    1.2 Rear panel lel. For this purpose, the antenna (2) of model 5 2-pole terminal strip for the control channel output AV-3050R can be folded out vertically and turned to to connect a signal device or another additional optimum reception.
  • Page 9: Specifications

    Antenna Power supply for this antenna amplifier is effected by AV-3050R: ..PCB antenna the receiver via the antenna line. AV-3050RDX: ..external, via SMA jack (with 5 V power supply 4.2.5 Power supply...
  • Page 10: Eléments Et Branchements

    5 Barrette 2 pôles pour la sortie du canal de com- parallèle. A cet effet, sur le AV-3050R, l’antenne (2) mutation permettant de brancher un avertisseur est repliable verticalement et peut être orientée pour ou un autre appareil supplémentaire...
  • Page 11: Caractéristiques Techniques

    Antenne serait supérieure à 4 m, un amplificateur d’antenne AV-3050R: ..antenne platine est recommandé, par exemple DXC-1AMP de AV-3050RDX: ..externe via prise SMA MONACOR.
  • Page 12 Copyright by MONACOR International GmbH & Co. KG, Bremen, Germany © ® All rights reserved. www.monacor.com 11.01.03...
