Instruction Manual
D500248X012
Fisherr POSI-SEAL™ A31D Double-Flange
High-Performance Butterfly Valve
Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Anti-Blowout Design, Packing, Valve Shaft,
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Introduction

Scope of Manual

This instruction manual includes installation, maintenance, and parts ordering information for Fisher POSI-SEAL A31D
double-flange high-performance butterfly valves (see figure 1). Refer to separate instruction manuals for information
covering the actuator and accessories.
Do not install, operate, or maintain an A31D valve without being fully trained and qualified in valve, actuator, and
accessory installation, operation, and maintenance. To avoid personal injury or property damage, it is important to
carefully read, understand, and follow all the contents of this manual, including all safety cautions and warnings. If you
have any questions about these instructions, contact your Emerson Process Management sales office before
proceeding.
www.Fisher.com
. . . . . . . . . . . . . . . . . . . . .
. . . . .
. . . . . . . . .
. . . . . . . . .
. . . . . . . . . . . .
. . . . . . . . . . . . .
. . . . . . . . . . . . .

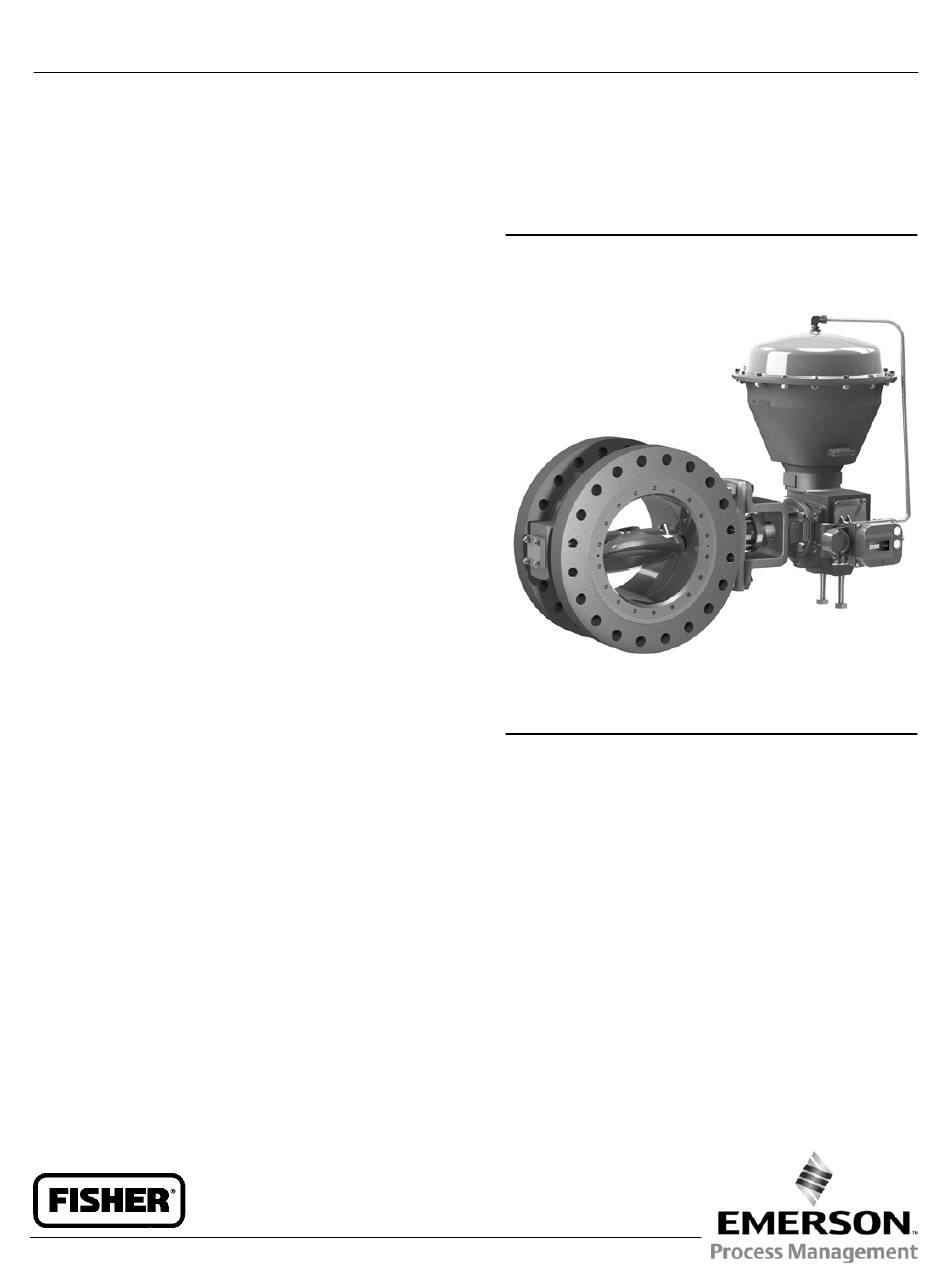

Figure 1. Fisher A31D Valve with 2052 Actuator
1
1
2
2
2
3
5
5
7
7
8
10
10
11
11
12
12
14
17
X0704
20
22
23
25
A31D Valve
April 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fisher POSI-SEAL A31D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Emerson Fisher POSI-SEAL A31D

Summary of Contents for Emerson Fisher POSI-SEAL A31D

  • Page 1: Table Of Contents

    ........Introduction Scope of Manual This instruction manual includes installation, maintenance, and parts ordering information for Fisher POSI-SEAL A31D double-flange high-performance butterfly valves (see figure 1). Refer to separate instruction manuals for information covering the actuator and accessories.

  • Page 2: Description

    Fisher spring­and­diaphragm or pneumatic double-acting or spring-return piston actuators. Maximum inlet pressure/temperature ratings are consistent with ASME CL150 and CL300. Educational Services For information on available courses for the Fisher POSI-SEAL A31D valve, as well as a variety of other products, contact: Emerson Process Management Educational Services - Registration P.O.

  • Page 3: Installation

    Emerson Process Management sales office. 1. Isolate the control valve from the line pressure, release pressure from both sides of the valve body, and drain the process media from both sides of the valve.
  • Page 4 7. If necessary, attach a grounding strap from the valve body or pipeline to the valve shaft. For additional information on grounding procedures, contact your Emerson Process Management sales office.

  • Page 5: Valve Orientation

    Instruction Manual A31D Valve D500248X012 April 2014 Table 2. Stud Bolt and Cap Screw Chart for Double-Flange Valves A31D, CL150, ISO 5752 BUTTERFLY SHORT SERIES VALVE SIZE, NPS No. of Through Holes No. of Tapped Holes - - - Size-Dia. Inch & Thread 5/8 - 11 5/8 - 11 3/4 - 10...
  • Page 6 Instruction Manual A31D Valve D500248X012 April 2014 Figure 2. Available Seal Configurations BACKUP BODY BODY RING SEAL RING RETAINING RING RETAINING RING NOVEX SEAL RING HIGH PRESSURE VALVE DISK AT SHUTOFF HIGH PRESSURE VALVE DISK AT SHUTOFF NOVEX SEAL SOFT SEAL WITH BACKUP O-RING BODY BACKUP...

  • Page 7: Adjusting The Actuator Travel Stops Or Travel

    Instruction Manual A31D Valve D500248X012 April 2014 Table 4. Valve Weights SIZE CL150 CL300 1240 1303 1556 1307 2881 An A31D valve is normally shipped as part of an assembly with an actuator and other accessories such as a valve positioner.

  • Page 8: Packing Adjustment And Shaft Bonding

    Instruction Manual A31D Valve D500248X012 April 2014 Refer to table 2 for the quantity and size of line bolting required to install the valve in the pipeline. CAUTION To avoid damage to the valve disk during installation, the valve must be in the fully closed position. If the A31D valve is equipped with a fail-open actuator, remove the actuator before installing the valve/actuator assembly or cycle the valve into the fully closed position.
  • Page 9 Instruction Manual A31D Valve D500248X012 April 2014 Figure 4. Optional Shaft-to-Valve Body Bonding Strap Assembly ACTUATOR VALVE BODY 37A6528-A A3143-2 VIEW A-A CAUTION For non-ENVIRO-SEAL packing: Tighten the packing follower nuts only enough to prevent shaft leakage. Excessive tightening will accelerate wear of the packing and could produce higher friction loads on the valve stem. 2.

  • Page 10: Maintenance

    Instruction Manual A31D Valve D500248X012 April 2014 Note Standard PTFE packing is composed of a partially conductive carbon-filled PTFE female adaptor with PTFE V-ring packing. Standard graphite packing is composed of all conductive graphite ribbon packing. Alternate shaft-to-valve body bonding is available for hazardous service areas where the standard packing is not sufficient to electrically bond the shaft to the valve (see the following step).

  • Page 11: Packing Maintenance

    Instruction Manual A31D Valve D500248X012 April 2014 Packing Maintenance The A31D valve is designed so the packing can be replaced without removing the valve from the process pipeline. CAUTION For non-ENVIRO-SEAL packing: Tighten the packing follower nuts only enough to prevent shaft leakage. Excessive tightening will accelerate wear of the packing and could produce higher friction loads on the valve stem.

  • Page 12: Seal Maintenance

    Instruction Manual A31D Valve D500248X012 April 2014 CAUTION Damage to the valve disk can occur if the disk is not closed when the valve is being removed from the pipeline. If necessary, stroke the actuator to place the disk in the closed position while removing the valve from the pipeline. 3.

  • Page 13: Ptfe Seals

    CL300: NPS 18 and 20 CL300: NPS 24 Note: These values are based upon standard materials, S66286/N07718 screws and ASTM A193GRB6 bolts. For other special fastener materials, please contact your Emerson Process Management sales office. Table 6. Torque Values for Gasket Retainer Bolts...

  • Page 14: Novex, Phoenix Iii And/Or Phoenix Iii Fire-Tested Seals

    Instruction Manual A31D Valve D500248X012 April 2014 2. Install the seal ring and O-ring assembly in the valve body. The wider outside diameter of the seal ring, as marked in figure 5, goes into the T-slot area of the body. Start the edge with the wider diameter into the T-slot of the valve body using a blunt-end tool.
  • Page 15 Instruction Manual A31D Valve D500248X012 April 2014 WARNING Avoid personal injury or property damage caused by the impact of a falling or tipping of a large valve. Support large valves during maintenance. 6. To complete this step, stand the valve up. Support the valve securely using methods appropriate for the valve size. If a vise or other clamps are being used, be sure to not damage the flange gasket sealing area of the valve body.
  • Page 16 Instruction Manual A31D Valve D500248X012 April 2014 Figure 6. Anti-Blowout Design Details PACKING SHAFT FLANGE ANTI- BLOWOUT RING PACKING ANTI- FLANGE HEX NUT BLOWOUT PACKING FLANGE FOLLOWER ANTI-BLOWOUT STUD FLANGE HEX NUT SHAFT TYPICAL VALVE PACKING SHOULDER PACKING BODY FOLLOWER TYPICAL PTFE V-RING PACKING C0766...

  • Page 17: Disk, And Bearing Maintenance

    Do not attempt to remove the bearing stop which is found in the drive shaft bearing bore immediately after the packing box. The bearing stop is pressed into the bearing bore. If the bearing stop needs replacement, contact your Emerson Process Management sales office for more information.
  • Page 18 Instruction Manual A31D Valve D500248X012 April 2014 Note It is not necessary to remove the retaining ring and valve seal when removing the shaft(s) and disk. 2. Properly secure the valve on a suitable worktable so it cannot slip, twist, or fall during maintenance. 3.

  • Page 19: Installing A One-Piece Shaft

    Instruction Manual A31D Valve D500248X012 April 2014 b. After screwing the rod into the pin, slide the spacer over the rod and pin. Thread the nut onto the rod and tighten it. As the nut is tightened, the nut will drive the spacer against the disk. The increasing force will draw the pin from the disk.
  • Page 20 Instruction Manual A31D Valve D500248X012 April 2014 CAUTION To avoid damage to the taper key, tangential pins, valve disk, or shaft(s) resulting from the application of excessive force, use appropriate care when driving the key or pins into the disk hub and shaft(s). Use the right tool. Do not use excessive force.
  • Page 21 Instruction Manual A31D Valve D500248X012 April 2014 Key numbers in this procedure are shown in figure 9, 10, or 11 unless otherwise indicated. 1. Properly secure the valve on a suitable worktable so it cannot slip, twist, or fall during maintenance. Be prepared to support the valve disk.

  • Page 22: Gasket Retainer

    Instruction Manual A31D Valve D500248X012 April 2014 7. Place the flat side of the disk on a flat surface and insert wooden blocks to raise the disk approximately 50.8 mm (2 inches) from the worktable surface. Then, suspend the valve body over the disk so the seal/T-slot area is facing up. Align the shaft bores through the disk with the drive shaft and follower shaft bores.

  • Page 23: Parts Ordering

    Typical parts are shown in figure 9, 10, or 11. When corresponding with your Emerson Process Management sales office about an A31D valve, please identify the valve as an A31D and provide the valve serial number. For valve/actuator combinations assembled at the factory, the valve serial number is stamped on the nameplate attached to the actuator.

  • Page 24: Repair Kits

    CL150 38.1 (1-1/2) RRTYX000192 CL300 57.2 (2-1/4) RRTYX000202 CL150 44.5 (1-3/4) RRTYX000212 CL300 63.5 (2-1/2) RRTYX000222 CL150 50.8 (2) RRTYX000182 CL150 63.5 (2-1/2) RRTYX000222 1. Shaft diameter: Diameter through the packing box. 2. Contact your Emerson Process Management sales office.

  • Page 25: Parts List

    Graphite CL150 Note NPS 3 V111021X012 Part numbers are shown for recommended spares only. For part NPS 4 V143697X012 numbers not shown, contact your Emerson Process Management sales NPS 6 V143698X012 office. NPS 8 V143698X012 NPS 10 V111025X012 NPS 12...
  • Page 26 Instruction Manual A31D Valve April 2014 D500248X012 Description Part Number Description Part Number NPS 4 13B8816X042 NPS 24 V124867X012 NPS 6 13B8816X082 Cap Screw - Actuator (4 req'd) (not shown) NPS 8 13B8816X082 Hex Nut - Actuator (4 req'd) (not shown) NPS 10 13B8816X102 Nameplate (not shown)
  • Page 27 Instruction Manual A31D Valve D500248X012 April 2014 Figure 8. ENVIRO-SEAL Packing Systems 14B0095-A STACKING ORDER OF 34B7524-B PTFE PACKING RINGS PTFE PACKING SYSTEM 14B0086-A 34B7524-B STACKING ORDER OF GRAPHITE PACKING RINGS GRAPHITE PACKING SYSTEM NOTE: VALVES WITH SHAFTS LARGER THAN 38.1 mm (1-1/2 INCH) USE GRAPHITE RINGS...
  • Page 28 Instruction Manual A31D Valve April 2014 D500248X012 Key 5* Seal Ring VALVE SIZE, NPS SOFT SEAL PHOENIX III SEAL METAL SEAL PTFE UHWMPE S31600/PTFE NOVEX CL150 S31600 V143521X012 V143521X022 V143525X012 V158982X042 V143539X012 V143539X022 V143490X012 V158984X042 V143443X012 V143443X022 V143456X012 V158987X042 V143645X012 V143645X022 V143648X012 V158992X022...
  • Page 29 Instruction Manual A31D Valve D500248X012 April 2014 Key 6* Backup RIng VALVE SIZE, NPS NITRILE CHLOROPRENE Soft Seal PTFE / UHMWPE CL150 V143826X012 V143826X022 V143826X032 V143826X042 V110183X012 V110183X022 V110183X032 V110183X042 V110190X022 V110190X012 V110190X032 V110190X042 V110195X012 V110195X022 V110195X032 V110195X042 V110199X012 V110199X022 V110199X032 V110199X042 V110203X012...
  • Page 30 Instruction Manual A31D Valve April 2014 D500248X012 Key 7* Bearing VALVE SIZE, NPS QUANTITY NEEDED PEEK 316 / NITRIDE CL150 V166262X012 V166484X012 V166300X012 V166485X012 V166284X012 V166462X012 V166285X012 V167379X012 V166266X012 V167380X012 V166267X012 V166460X012 V161474X022 V111398X032 V157057X012 V157058X012 V161472X022 V157059X012 V131700X022 V157060X012 V169414X012 V157061X012 V127742X032...
  • Page 31 Instruction Manual A31D Valve D500248X012 April 2014 Key 21* Gasket SOFT SEAL METAL / PHOENIX III VALVE SIZE, NPS Standard and NACE Standard CL150 16B0782X022 16B0782X012 V165568X022 V165568X012 V165568X022 V165568X012 V165568X022 V165568X012 V124605X022 V124605X012 V165568X022 V165568X012 V125000X022 V125000X012 V125001X012 V125001X012 V125002X022 V125002X012 V124604X022...
  • Page 32 Instruction Manual A31D Valve D500248X012 April 2014 Figure 9. Fisher A31D Valve Body Assembly, NPS 3-8 CL150 and NPS 3-6 CL300 USE ONLY WITH SOFT SEAL AND PHOENIX III SEAL USE WITH NOVEX SEAL, PHOENIX III SEAL, AND CRYOGENIC VALVES NOT SHOWN: KEYS 27, 28, 32, 33, 111, 112, 113 GE57850-A...
  • Page 33 Instruction Manual A31D Valve D500248X012 April 2014 Figure 10. Fisher A31D Valve Body Assembly, NPS 10-12 CL150 and NPS 8-12 CL300 USE ONLY WITH SOFT SEAL AND PHOENIX III SEAL USE WITH NOVEX SEAL, PHOENIX III SEAL, AND CRYOGENIC VALVES INCLUDED IN FIND NUMBER 35 (DISK SHAFT ASSEMBLY NPS 12 CL300) GE57889-A NOT SHOWN: KEYS 27, 28, 32, 33, 111, 112, 113...
  • Page 34 Instruction Manual A31D Valve D500248X012 April 2014 Figure 11. Fisher A31D Valve Body Assembly, NPS 14-24 CL150 and CL300 USE ONLY WITH SOFT SEAL AND PHOENIX III SEAL PARTS NOT SHOWN: KEYS 26, 29, 32, 33, 38, 111, 112, 113 GE62596-A...
  • Page 35 Instruction Manual A31D Valve D500248X012 April 2014...
  • Page 36 Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user. Fisher, POSI-SEAL, and ENVIRO-SEAL are marks owned by one of the companies in the Emerson Process Management business unit of Emerson Electric Co.
