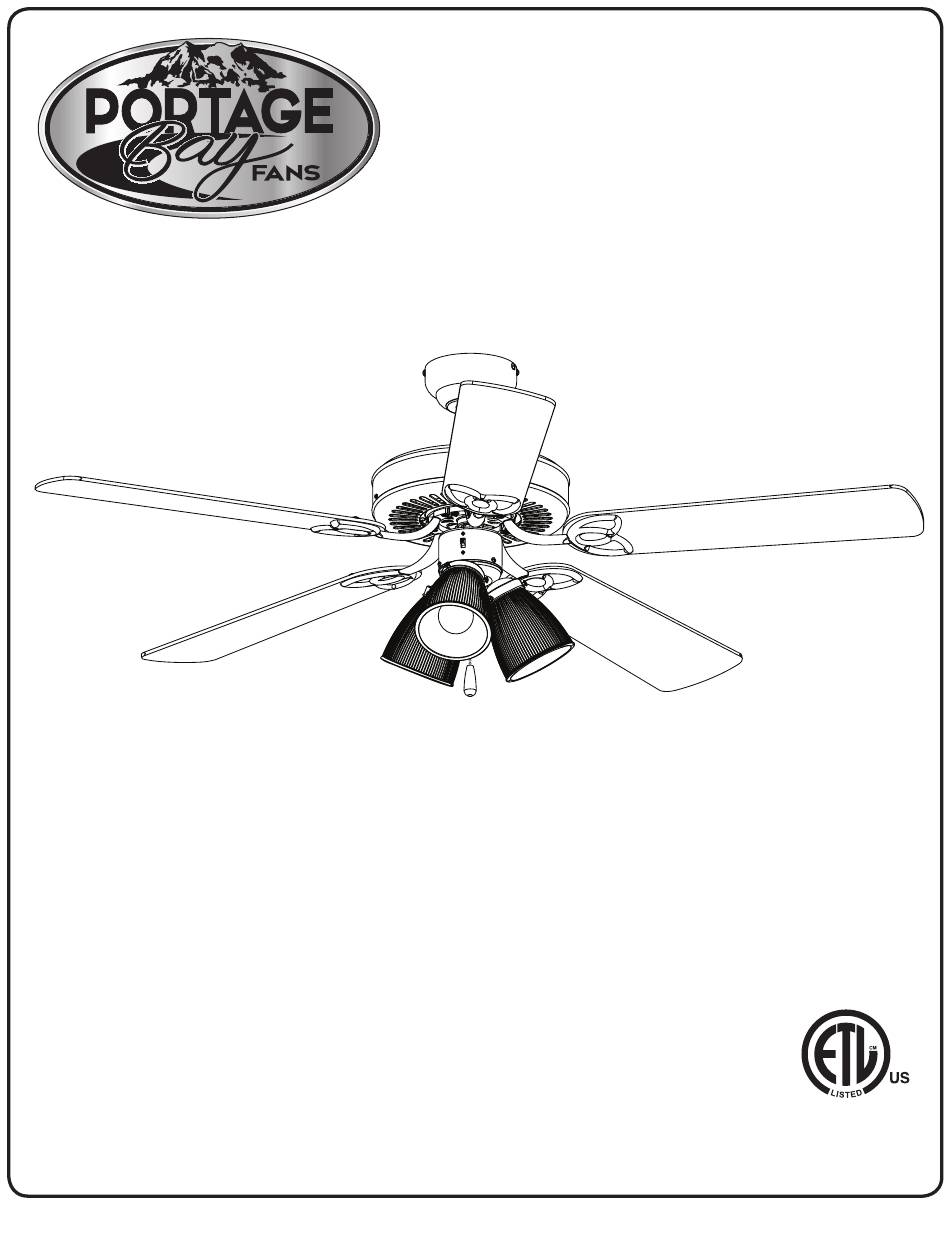

- Page 1 Stannor Ceiling Fan Owner’s Manual Model #50256 If you are experiencing difficulty in installation, please contact Customer Service: 1-877-706-3267. 9292 • 012218...
-
Page 2: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: PACKAGE CONTENTS 1. Canopy 12. Switch Housing 2. Canopy Cover 13. Switch Housing Screw (x 3) 3. Mounting Bracket Screw 14. Light Kit (x 4) 15. -
Page 3: Mounting Options
DIMENSION REFERENCE A. 17.89 in. B. 10.79 in. C. 11.06 in. D. 5.13 in. MOUNTING OPTIONS Three Mounting Options Closemount Downrod Mount Angled Ceiling Mount (Up to 16 degrees) Choose one of the following mounting options: Closemount method is best suited for ceilings lower than 8 feet. It does not utilize the downrod. Downrod Mount is best suited for ceilings 8 ft. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE FAN AND SAVE INSTRUCTIONS. CAUTION: All set screws of the fan must be checked and retightened where necessary before installation. To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing the blades or cleaning fan. - Page 5 ASSEMBLY INSTRUCTIONS 1. Turn OFF the electrical power at the main fuse or circuit breaker. 2. Remove the canopy from the mounting bracket by Mounting removing the two mounting bracket screws from the Bracket Screw round holes in the canopy and save for later use. Then loosen the other two mounting bracket screws from the L-shaped slots.
- Page 6 ASSEMBLY INSTRUCTIONS 5. Feed the wires coming from the yoke through the yoke cover, canopy and downrod. Downrod Canopy Yoke Cover Yoke 6. Insert the downrod into the yoke and reinstall the Downrod downrod pin and downrod clip. Then re-tighten the two Yoke set screws.
- Page 7 ASSEMBLY INSTRUCTIONS 9. Raise the canopy, ensure the two mounting bracket Mounting L-shaped Slot Bracket Screw screws are aligned with the L-shaped slots in the canopy. Then turn the canopy counter clockwise until the mounting bracket screws are completely engaged in the L-shaped slots.
- Page 8 ASSEMBLY INSTRUCTIONS 13. Remove the three switch housing screws from the light kit. Then, connect the single-pin connectors from the switch housing to the single-pin connectors from the light kit -- blue to black and white to white. Single-pin Connector Secure the light kit to the switch housing using the three Switch switch housing screws.
- Page 9 ASSEMBLY INSTRUCTIONS 17. Attach the pull chain extensions to the pull chains. Assembly is complete. Turn on the circuit breakers and the wall switch to the fan supply lead wires. OPERATING INSTRUCTIONS 1. Use the fan reverse switch, located on the switch housing to optimize your fan for seasonal performance.
-
Page 10: Troubleshooting
TROUBLESHOOTING If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing difficulty in installation, please contact the Service Department: 1-877-706-3267, 9 a.m.- 5 p.m. -
Page 11: Limited Lifetime Warranty
Model Name: 52” Stannor Ceiling Fan Model No: 50256 - Brushed Nickel Subject to the limitations set forth below, Hong Kong China Electric appliance Company (HKC) warrants the fan motor for this ceiling fan to be free from defects in workmanship and material for the life of the product.
