Summary of Contents for PORTAGE BAY FANS 50252

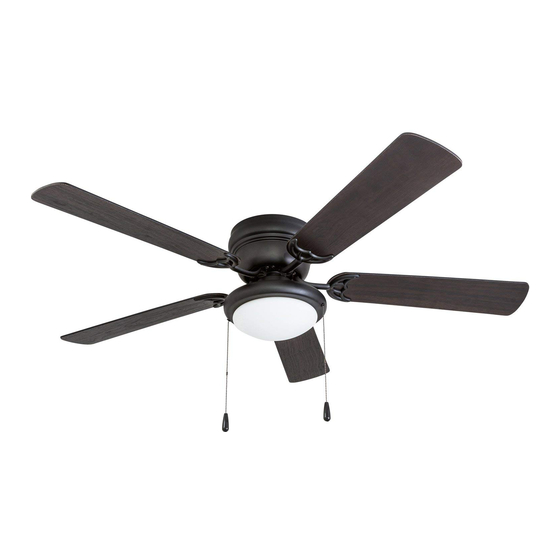

- Page 1 West Hill Ceiling Fan Owner’s Manual Models # 50251, 50252, 50254 If you are experiencing difficulty in installation, please contact Customer Service: 1-877-706-3267. 9300 • 012218...
-
Page 2: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: PACKAGE CONTENTS 1. Motor Housing 10. Blade (x 5) 2. Mounting Bracket 11. Blade Arm (x 5) 3. Lower Bracket 12. Hardware Kit 4. Motor 13. - Page 3 EXPLODED VIEW DETAIL Mounting Bracket Motor Housing Lower Bracket Motor Blade Switch Housing Blade Arm Light Kit Bulb Glass Bowl Switch Housing Cap DIMENSION REFERENCE A. 11.47 in. B. 8.19 in. C. 6.11 in. D. 8.88 in.
-
Page 4: Safety Instructions
SAFETY INSTRUCTIONS READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE FAN AND SAVE INSTRUCTIONS. CAUTION: To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing the blades or cleaning fan. Do not insert foreign objects in between rotating fan blades. Before changing the fan direction, turn off the fan and wait for the fan blades to stop completely. - Page 5 ASSEMBLY INSTRUCTIONS 1. Turn OFF the electrical power at the main fuse or circuit breaker. 2. Secure the mounting bracket to the outlet box (not included) using the two mounting screws and washers supplied with outlet box. Warning: To reduce the risk of fire, electrical shock, or personal injury, mount the fan to the outlet box marked “acceptable for fan support”.
- Page 6 ASSEMBLY INSTRUCTIONS 5. Secure the lower bracket to the mounting bracket with the three bracket screws. Bracket Screws 6. Use wire connectors to connect the fan wires to the power supply wires according to the wiring diagram and the following instructions: •...
- Page 7 ASSEMBLY INSTRUCTIONS 9. Secure the blade arm to the underneath side of the motor using the previously removed motor screws. Completely secure each blade arm to motor before moving to the next. To install the fan without the light kit, skip to Step 16. Motor Screw Blade Arm 10.
- Page 8 ASSEMBLY INSTRUCTIONS 13. Lift glass bowl into the light kit. Ensure the clips on inner edge of the light kit slide inside the glass bowl. The glass bowl should snap into place. Spring Clip Glass Bowl 14. Feed pull chains through the grommets on each side of the light kit.
- Page 9 OPERATING INSTRUCTIONS 1. Use the fan reverse switch, located on the switch housing to optimize your fan for seasonal performance. Using a ceiling fan will allow you to raise your thermostat setting in summer and lower your thermostat setting in Reverse Switch winter without feeling a difference in your comfort.
-
Page 10: Troubleshooting
TROUBLESHOOTING If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing difficulty in installation, please contact Customer Service: 1-877-706-3267. -
Page 11: Limited Lifetime Warranty
1-877-706-3267. Model Name: 52” West Hill Ceiling Fan Model No: 50251 - Matte Black 50252 - Brushed Nickel 50254 - White Subject to the limitations set forth below, Hong Kong China Electric appliance Company (HKC) warrants the fan motor for this ceiling fan to be free from defects in workmanship and material for the life of the product.
Need help?
Do you have a question about the 50252 and is the answer not in the manual?
Questions and answers
Changing bulbs
To change bulbs in the PORTAGE BAY FANS model 50252:
1. Turn Off Power – Ensure the main power is turned off before starting.
2. Remove the Glass Bowl – Lift the glass bowl from the light kit. Ensure the clips on the inner edge of the light kit slide out of the glass bowl.
3. Replace the Bulb – Remove the old bulb and insert a new one into the socket of the light kit.
4. Reattach the Glass Bowl – Lift the glass bowl back into place, ensuring it snaps into the clips securely.
5. Restore Power – Turn the power back on at the main fuse or circuit breaker.
This answer is automatically generated
