by Great Planes
®
AMMO 24mm PO
AMMO 24mm PO
WER SYSTEM
WER SYSTEM

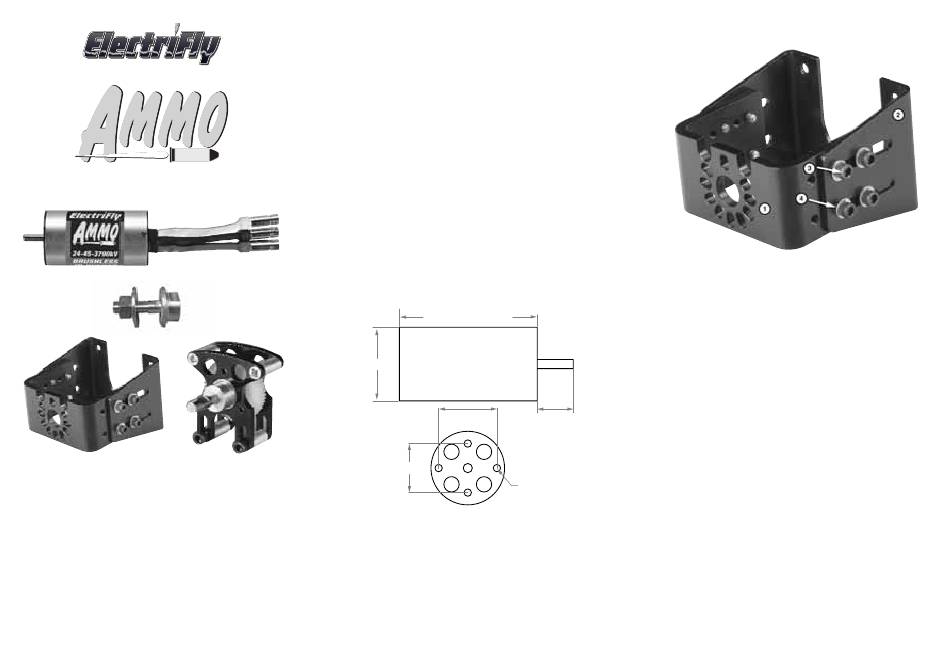

Congratulations, you have just purchased the
Ammo 24mm power system components. All
the components are sold separately to allow
you to customize your power system to your
airplane. The components needed to assemble
your Ammo 24mm power system are: Ammo
24mm motor, 24mm small gear drive, small
motor mount, propeller, propeller adapter and
brushless speed control. This instruction sheet
explains how to determine what you will need
and how to assemble each component.
™
Model
24-33-2500 ...............GPMG5150
24-33-3180 ...............GPMG5155
™
24-33-3500 ...............GPMG5160
24-33-4040 ...............GPMG5165
24-33-4875 ...............GPMG5170
24-45-2350 ...............GPMG5175
24-45-2900 ...............GPMG5180
24-45-3790 ...............GPMG5185
The Ammo motors are labeled to provide the
most information at a glance. For example, the
24-45-2350kV is 24mm in diameter, 45mm
long and has a kV (rpm-per-volt) of 2350 rpm.
24mm
16mm
Motor Output Shaft
Diameter x Length: 3x11.7mm [0.12" x 0.48"]
Weight (33mm): 67g [2.4oz.]
Weight (45mm): 101g [3.6oz.]
MOTORS
Stock #
33mm
45mm
OR
19mm
11.7mm
3mm
MOUNTING
SCREW
BRUSHLESS SMALL MOTOR MOUNT
1. Front Plate (1)
2. Back Plate (1)
3. 4-40x1/4" SHC Screw (8)
4. #4 Flat Washer (8)
Not Shown:
5. 3x8mm SHC Screw (4)
6. 3mm Flat Washer (4)
The ElectriFly Brushless Small Motor Mount
combines ease of installation with the
adjustability to fit most motor applications.
Advertisement
Related Manuals for GREAT PLANES electriFly Ammo
Summary of Contents for GREAT PLANES electriFly Ammo
- Page 1 MOTORS BRUSHLESS SMALL MOTOR MOUNT ™ Model Stock # by Great Planes ® 24-33-2500 ....GPMG5150 24-33-3180 ....GPMG5155 ™ 24-33-3500 ....GPMG5160 24-33-4040 ....GPMG5165 24-33-4875 ....GPMG5170 24-45-2350 ....GPMG5175 24-45-2900 ....GPMG5180 AMMO 24mm PO AMMO 24mm PO WER SYSTEM WER SYSTEM 24-45-3790 ....GPMG5185 The Ammo motors are labeled to provide the most information at a glance.
- Page 2 3. 2.5x17mm FH Mach Screw (2) props. Due to the large range of propellers 4. 5.5x11mm Alum Spacer (4) The ElectriFly Ammo motors have high kVs and the constant addition of new sizes, visit 5. 40 Tooth Spur Gear (1) meaning that they like to run at very high rpm.
-
Page 3: Electronic Speed Control (Esc)
ElectriFly offers a full line of NiMH and LiPo BATTERIES: CHEMISTRY batteries. Airplanes that use the Ammo 24mm The Ammo Motor/Silver Series ESC combination motors will typically use batteries with a capacity can use NiMH or LiPo batteries. Typically, NiMH of 910 to 2100mAh, with the higher capacity batteries are heavier but much cheaper for the batteries delivering more flying time but also... - Page 4 In addition to these two procedures, you can also visit the Great Planes ElectriFly web site for descriptions of the power PROCEDURE #1: If you know the size of the propeller you...
- Page 5 Front Plate using 3mm machine screws. If you are using a Out-runner motors can be mounted inside the front plate in different gear drive other than the Great Planes gear drive, some situations using three 3x8mm SHC screws, but most of the hole locations may need to be modified.
-
Page 6: Important Precautions
• Never attempt to use a damaged motor (having mechanical or electrical defects). INSTALL THE BRUSHLESS ESC • Great Planes carries a complete line of Ammo (in-runner style) and Rimfire (out-runner style) brushless motors, Because most of the power systems using the 24mm...
