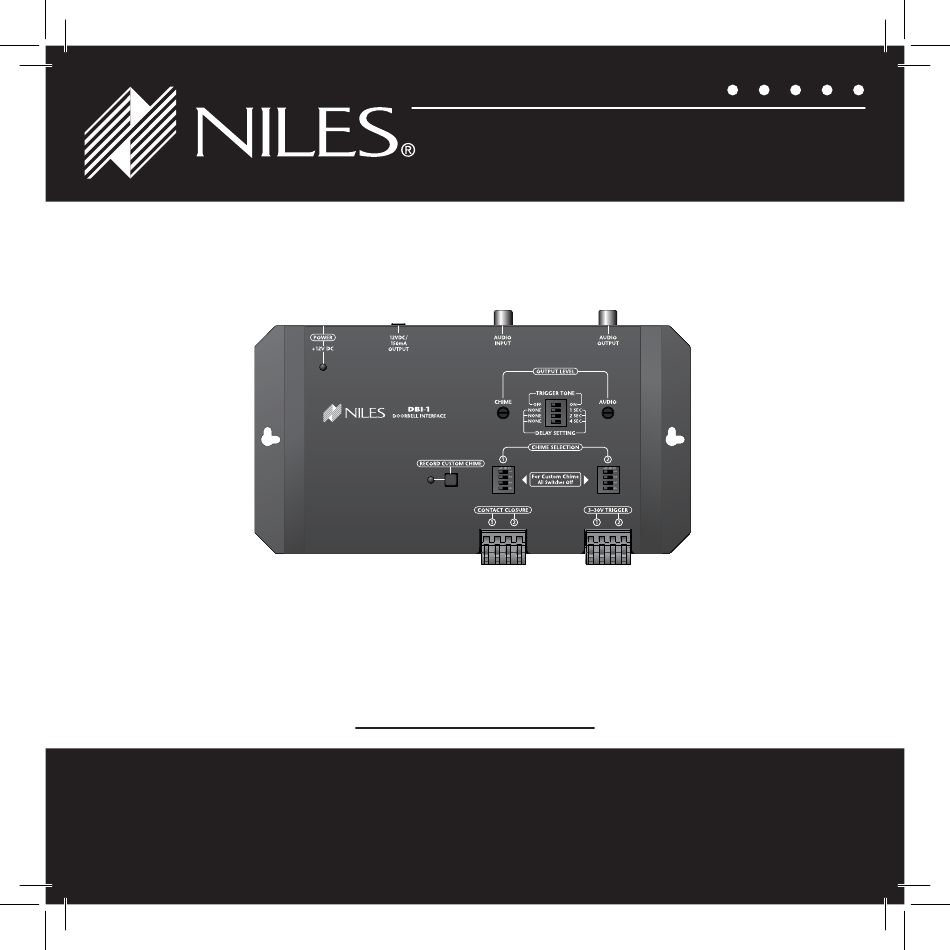

I N S T A L L A T I O N G U I D E
D O O R B E L L I N T E R F A C E
DBI-1
DS00364E-0 DBI-1.indd 1
11/14/08 11:33:24 AM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DBI-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Niles DBI-1

Summary of Contents for Niles DBI-1

  • Page 1 I N S T A L L A T I O N G U I D E D O O R B E L L I N T E R F A C E DBI-1 DS00364E-0 DBI-1.indd 1 11/14/08 11:33:24 AM...
  • Page 2 Niles. With proper installation and opera- tion, you should enjoy years of trouble-free use. Niles manufactures the industry’s most complete line of custom installation components and accessories for audio/video systems. To see the complete Niles product assortment, visit us on the www.nilesaudio.com Internet at: DS00364E-0 DBI-1.indd 2...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction Features and Benefits Parts Guide Operation Overview Description Installation Considerations Installation Installation Settings Specifications Limited Warranty Warranty Registration NILES AUDIO CORPORATION – 1-800-BUY-HIFI – 1-305-238-4373 NILES AUDIO CORPORATION – 1-800-BUY-HIFI DS00364E-0 DBI-1.indd 3 11/14/08 11:33:24 AM...

  • Page 4: Introduction

    Niles MultiZone Control Systems. The DBI-1 includes a choice of four pre-recorded and one recordable custom chime to provide the appropriate doorbell chime for any home. A UL-listed, universal voltage power supply is included for convenience.

  • Page 5: Features And Benefits

    FEATURES AND BENEFITS NILES AUDIO CORPORATION – 1-800-BUY-HIFI – 1-305-238-4373 DS00364E-0 DBI-1.indd 5 11/14/08 11:33:24 AM...

  • Page 6: Parts Guide

    The DBI-1 package includes the following parts: After unpacking and before installation, the installer should carefully inspect the contents. If any damage is discovered due to shipping, the installer should contact Niles Audio for assistance (see back cover contact information).

  • Page 7: Operation Overview

    OPERATION OVERVIEW NILES AUDIO CORPORATION – 1-800-BUY-HIFI – 1-305-238-4373 DS00364E-0 DBI-1.indd 7 11/14/08 11:33:25 AM...

  • Page 8: Description

    Chime 1 and 2 Voltage Triggers Chime 1 and 2 Contact Closure Triggers Chime Selection 1 DIP Switches Custom Chime Record Button and Record Indicator Rubber Feet for Table Top Mounting UL-listed, Universal Voltage Power Supply DS00364E-0 DBI-1.indd 8 11/14/08 11:33:25 AM...
  • Page 9 DESCRIPTION (Continued) Figure 1 NILES AUDIO CORPORATION – 1-800-BUY-HIFI – 1-305-238-4373 DS00364E-0 DBI-1.indd 9 11/14/08 11:33:26 AM...

  • Page 10: Installation Considerations

    INSTALLATION CONSIDERATIONS Figure 1 Figure 2 Figure 2 Figure 2 Figure 2 Figure 3 DS00364E-0 DBI-1.indd 10 11/14/08 11:33:26 AM...

  • Page 11: Installation

    The DBI-1 can be either mounted on the back of a cabinet or on a wall using screws (not included). Also, it can be placed on a shelf using the included adhesive rubber feet (see Figure 1 on page 7).
  • Page 12 Figure 2 DS00364E-0 DBI-1.indd 12 11/14/08 11:33:28 AM...
  • Page 13 Figure 3 Lighted Button NILES AUDIO CORPORATION – 1-800-BUY-HIFI – 1-305-238-4373 DS00364E-0 DBI-1.indd 13 11/14/08 11:33:29 AM...

  • Page 14: Installation Settings

    When in Lighted Doorbell Mode the DBI-1’s door number one input requires a constant Voltage and the collapse of that voltage initiates the chime. Use the DBI-1’s Trigger output to provide voltage Figure 3 to illuminate a single Lighted Doorbell Button.
  • Page 15 Turning switch 1 ON enables a trigger tone that activates the audio sensing of the Paging Input of a Niles MultiZone System. Switches 2, 3 and 4 ON enable delay times. The delay time provided for each switch is indicated in the table below.
  • Page 16 None Recorded Custom Chime Recording a Custom Chime - A mono analog audio signal can be recorded by the DBI-1 to create a Custom Chime. Analog audio signals to be recorded connect to the Audio Input. Stereo audio signals can be adapted to mono using an RCA “Y” Adapter Cable.

  • Page 17: Specifications

    7-7/8" W x 1-1/8" H x 4-1/8" D Voltage Trigger Input: 3V-30V AC/DC 20 cm W x 2.9 cm H x 10.5 cm D Contact Closure Inputs: < 100 ohms NILES AUDIO CORPORATION – 1-800-BUY-HIFI – 1-305-238-4373 DS00364E-0 DBI-1.indd 17 11/14/08 11:33:30 AM...

  • Page 18: Limited Warranty

    LIMITED WARRANTY Model_________________________ Serial No._____________________ Purchase Date____________ DS00364E-0 DBI-1.indd 18 11/14/08 11:33:30 AM...

  • Page 19: Warranty Registration

    City _______________________________State __________Zip ___________ Tel ( )_________________ Please take a moment to fill out our warranty registration card. The information helps us to get to know you better and develop the products you want DS00364E-0 DBI-1.indd 19 11/14/08 11:33:31 AM...
