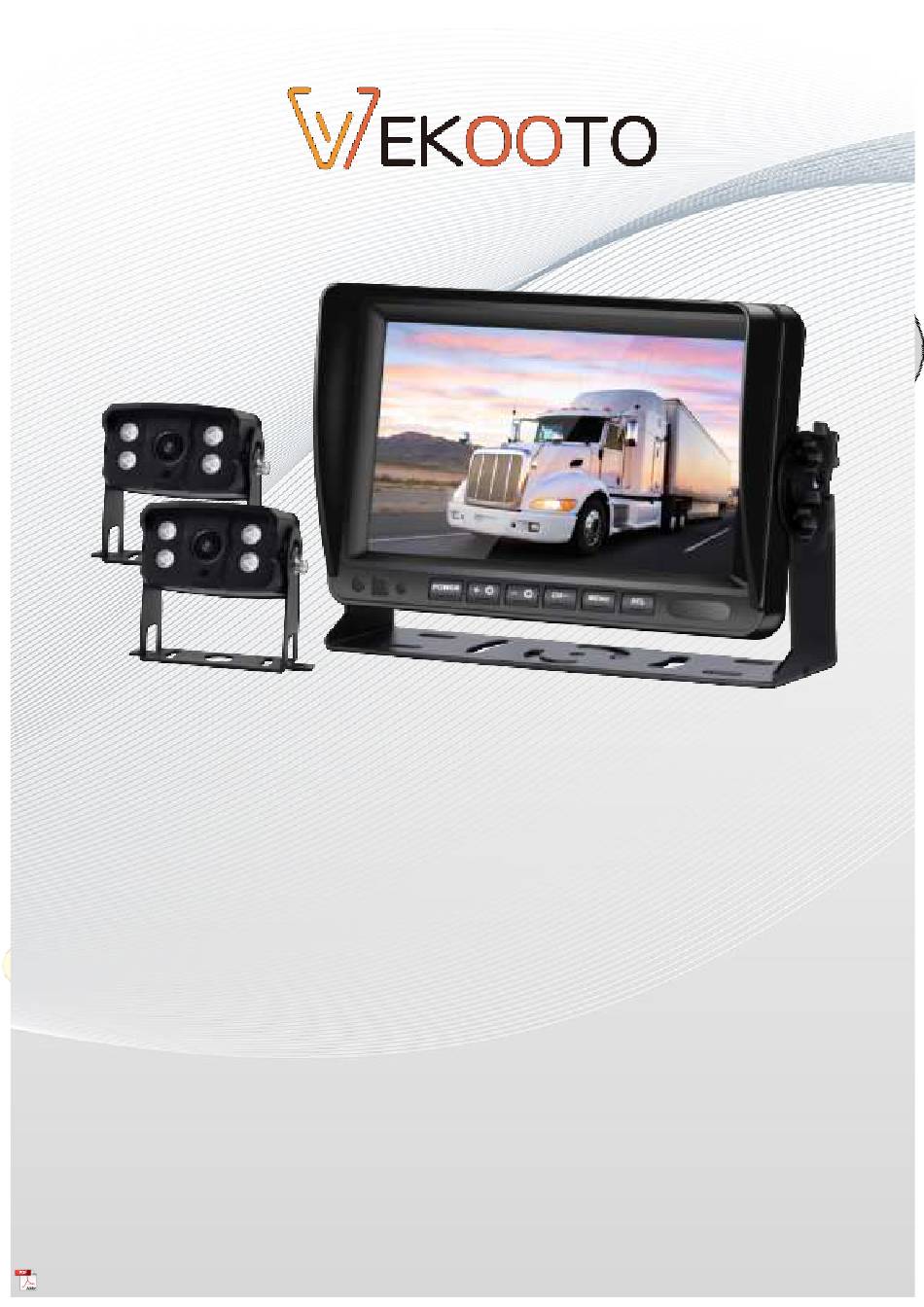

Operating Instructions & Installation Guide
N72
Backup Camera with 7"Monitor and DVR
Before Operating This Set
Please Read These Instructions Completely
USER MANUAL
Thank You for Buying VEKOOTO Product.
Read This User Manual Before Installing and Using It.
Pls keep this instruction or write down our email Vekooto@outlook.com
So you can find us once you have any question.
You are Always the First for us.
1
Advertisement
Related Manuals for VEKOOTO N72
Summary of Contents for VEKOOTO N72
- Page 1 Thank You for Buying VEKOOTO Product. Read This User Manual Before Installing and Using It. Pls keep this instruction or write down our email Vekooto@outlook.com So you can find us once you have any question. You are Always the First for us.
-
Page 3: Monitor Introduction
Monitor introduction The user can perform the manipulation of the guest power segment on the display parameters through the following nuclear health operations. ①IR: Infrared connector ②POWER: Turn the monitor on or off ③+: Increase button ④-: Decrease button ⑤CH-: Switch channel ⑥MENU: Setting menu ⑦SEL: Confirm button... -
Page 4: Remote Controller Introduction
1. Remote Controller introduction (1).Standby: Power ON/OFF (2).Video Select: Channel switch (3).Menu: Go in setting page (4).Mode Select: Show reversing line (5).Function Down: Reduce when in setting page (6).Function Up: Increase when in setting page Note: Button cell model: CR2025 3V 2. - Page 5 * Before installing it by professional person, please test it if works well, like image display, just in case and save your precious time. Please contact us if you have any question anytime, our email is Vekooto@outlook.com Note: 1) Before connecting, you need to confirm that the voltage of the battery is between 12 - 35V.
- Page 6 5. About Trailer installation If you need to extend the cable for your trailer, please tell us via our email: VEKOOTO@OUTLOOK.COM So we can send the extend cable for you, then you can extend it as the attached picture below shows, and you can disconnect them by Rotating the button of cable.
- Page 7 6. How to install the monitor and camera: ① Install the monitor and camera ② Choose the monitor brackets ③ Install the camera...
- Page 8 7. Basic Function Make sure Turn off the recording video function when you use the menu button into basic function. Press the SEL button of monitor let the red point disappear then the recording video function will disappear. 7.1 Date Setting 7.2 View...
- Page 9 7.3 Playback 7.4 Split Setting...
- Page 10 7.5 System (1). Reversing Lines: off / MODE 1/2/3 (2). Astern Delay: off / 3s/ 6s/ 9s That means after reversing trigger ended, it will return to monitoring page after the setting time. (3). Cyclic Record: Recording video for the certain length. (4).
- Page 11 (4). Why monitor can't use the menu and switch channel? A. Please make sure that monitor doesn't stays on recording status when you want to use other function. (5). What is the function of Trigger wire？ A. If you connect the trigger line to the reversing light, the screen will automatically switch to the camera that connected to the reversing light when you reverse.
