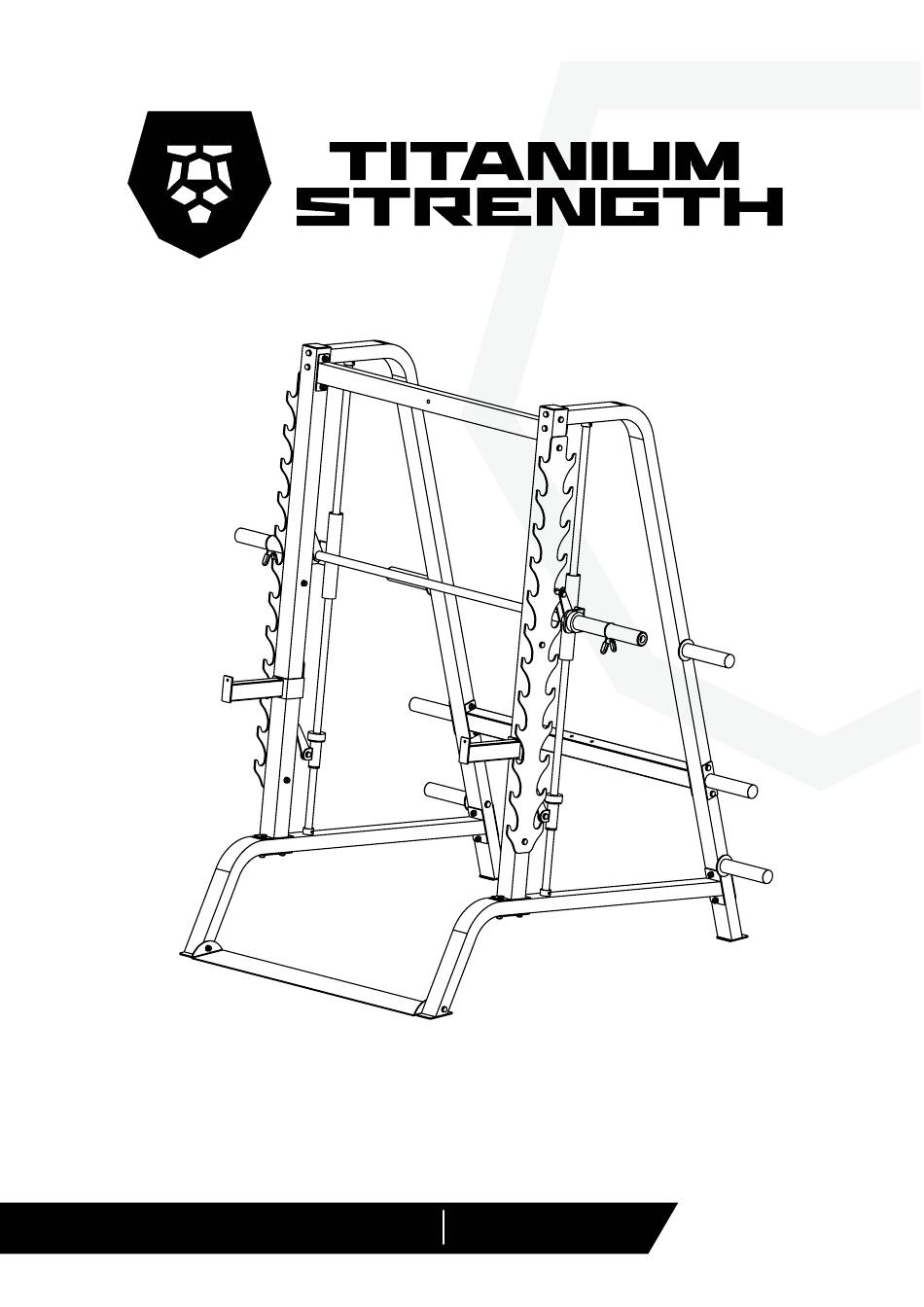

- Page 1 TOTAL SMITH MACHINE UNIT 1 USER MANUAL 160ST-UNIT 1...
- Page 2 Thank you very much for trusting us! With this purchase you are now part of the Titanium Strength Community. We hope that our products will help you gain the confidence you need to achieve all your goals. We guarantee you quality and safety.
- Page 3 ASSEMBLY INSTRUCTIONS BEFORE YOU BEGIN This exercise equipment is built for optimum safety. Be sure to read the entire manual before you assemble or operate your equipment. Please note the following safety precautions. SAFETY PRECAUTIONS Keep children and pets away from the equipment at all times. DO NOT leave children unattended in the same room with the equipment.
-
Page 4: Parts List
PARTS LIST KEY NO. DESCRIPTION OF P QUANTITY Front Upright Frame Bottom Frame Rear Right Frame Rear Left Frame Top Cross Frame Bottom Cross Frame Foot Plate Right Bearing Housing Left Bearing Housing Bar Holder Right Safety Holder Left Safety Holder Front Guide Rod Weight Bar Olympic Sleeve Plate Holder... - Page 5 PARTS LIST KEY NO. DESCRIPTION OF PART QUANTITY Linear Bearing Retaining Ring Rubber Bumper Bar Safety Support Sleeve Bottom Cross Frame Connector Dia48mm Inner Cap F70x70mm Inner Cap Big Olympic Spring Clip F6-1 M6x16mm Flat Head Bolt S8-1 M8x10mm Screw Set CH14-3 M14x25mm Cheese Head Bolt H10-2...
-
Page 6: Assembly Information
ASSEMBLY INFORMATION NOTE: It is strongly recommended that this equipment is assembled by two or more people to avoid possible injury. Tools Required for Assembling the Smith Machine: adjustable wrench, open end wrench(14mm), open end wrench(17mm), open end wrench(19mm), rubber mallet, tap measure, screwdriver and hexagonal wrench set. Ensure Carriage Bolts are inserted through the square holes on components that need to be assembled. -
Page 7: Parts Identification Chart
PARTS IDENTIFICATION CHART STEP 1 S8-1 H10-16 H10-16 22 x2 21 x2 F6-1 H10-13 H10-13 H10-16 H10- 6x N10 13x W10 Note：1,Tighten the F6-1 Bolt with Cross ScrewDriver; 2,In the Same Way to Assemble the Other Side Part. Follow us on: @titaniumstrengthofficial |... - Page 8 PARTS IDENTIFICATION CHART STEP 2 W10 x28 14x N10 6 1 - 6 1 - 7 1 - 7 1 - 6 1 - 6 1 - 2x 10 7 1 - 7 1 - 6 1 - 6 1 - W10 x4 2x N10 20 x2...
- Page 9 PARTS IDENTIFICATION CHART STEP 3 28 x2 3 - 4 1 3 - 4 1 26 x4 4x H10-2 4x W10 15 x4 Follow us on: @titaniumstrengthofficial |...
-
Page 10: Warranty
WARRANTY We warranty this product to be free from defects in workmanship and materials under normal use and conditions for a period of 1 year FOR PROFESSIONAL USE and 3 years FOR DOMESTIC USE, from the date of original purchase, provided that the product remains in the possession of the original owner. - Page 11 SEE YOU SOON! WE HOPE YOU ACHIVE ALL YOUR GOALS. Share your experience and tag @titaniumstrengthofficial FOLLOW US Follow us on: @titaniumstrengthofficial |...
