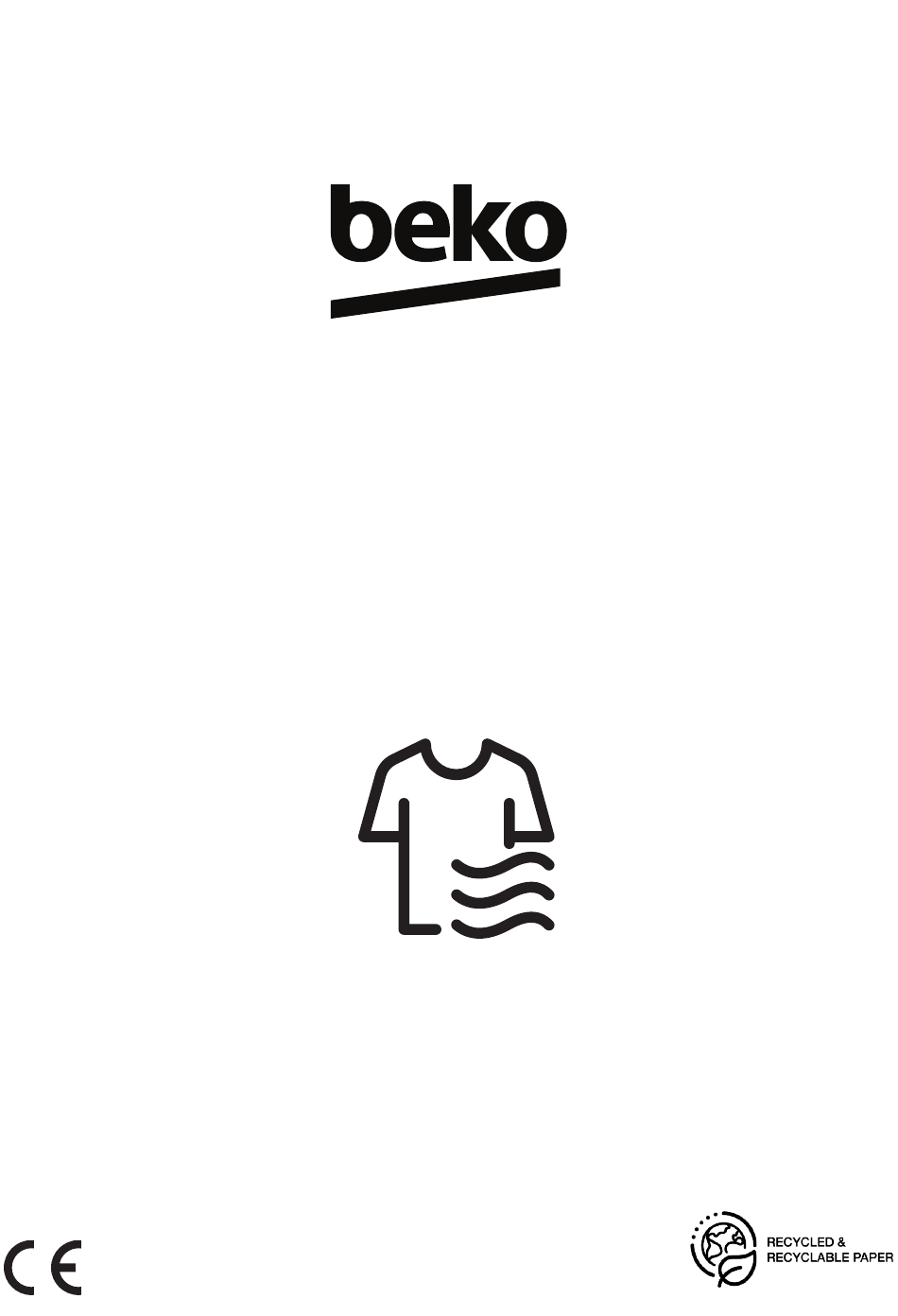

- Page 1 Dryer User Manual BTBC22XB 2960313357_EN/020622.1405...
- Page 2 Dear Customer, Please read this guide prior to use this product! Please read this guide prior to use this product! Thank you for choosing Beko Thank you for choosing Beko product. We would like you to achieve the optimal efficiency from product.
- Page 3 1 Safety Instructions .................. 5 1.1 Intended use ......................5 1.2 Safety of children, vulnerable persons and pets ............5 1.3 Electrical Safety ....................6 1.4 Transporting safety ....................6 1.5 Installing safety .....................7 1.7 Maintenance and cleaning safety ................9 1.8 Lighting safety ....................10 2 Environmental instructions..............
- Page 4 6 Running the product ................18 6.1 Control Panel ......................18 6.2 Symbols ......................18 6.3. Preparation of drying machine ................18 6.4 Program selection and consumption chart ............19 6.5 Auxiliary functions ....................21 6.6 Warning indicators ....................21 6.7 Starting the program ...................22 6.8 Child Lock ......................22 6.9 Changing the program after it is started ..............22 6.10 Cancelling the program ..................22 6.11 End of program ....................23...
- Page 5 1 Safety Instructions This section includes the safety instructions necessary to prevent the risk of personal injury or material damage. • Our company shall not be held responsible for damages that may occur if these instructions are not observed. • Installation and repair operations shall always be performed by Authorized Service.
- Page 6 • Keep the packaging materials away from children. Risk of injury and suffocation. • Keep all additives used with the product away from children. • Before disposing of the product, cut the power cord and destroy the loading door. 1.3 Electrical Safety •...
- Page 7 1.5 Installing safety • To prepare the product ready for installation, ensure that the electrical installation and water drain is proper by checking the information in the user manual. If it is not suitable for installation, call a qualified electrician and plumber to arrange the utilities as necessary.
- Page 8 • Do not plug the product to loose, broken, dirty, greasy sockets or sockets that has come out their seats or sockets with a risk of water contact. • The new hose sets supplied with the product shall be used. Do not re-use the old hose sets.
- Page 9 • If all items cannot be removed rapidly and cannot be placed where heat can dissipate, do not stop the drying machine before drying cycle completed. • The last part of the drying machine cycle is conducted without heating (cooling cycle) in order to ensure that the items are kept at a temperature that will not harm the items.
- Page 10 • Do not use materials such as household cleaning agents, soaps, detergents, gas, gasoline, alcohol, wax, etc. to clean the product. • The fibre filter shall be regularly cleaned. After each drying cycle, clean the fibre filter and the inner surface of the loading door. •...
- Page 11 2 Environmental instructions 2.1 Compliance with the WEEE Regulations and Waste Disposal This product does not contain the dangerous and prohibited materials indicated in the “Regulation on The Control of Waste Electrical and Electronic Equipment” published by Ministry of Environment and Urbanisation of Republic of Turkey. Complies WEEE Regulations.
- Page 12 3 Your drying machine 3.1 Technical specifications Height (Min. / Max.) 84,6 cm / 86,6 cm* Width 59,8 cm Depth 60,9 cm Capacity (max.) 8kg** Net weight (± %10) 34,5 kg Voltage Rated power input See type label*** Model code * Min.
- Page 13 3.2 General appearance 3.3 Scope of delivery 1. Water 6. Water discharge filling cap* hose* 2. Filter drawer 7. Pure spare Water* sponge* 8. Odour 3. User Capsule Manual Group* 4. Drying 9. Brush* basket* 5. Drying 10. Filter basket user 1.
- Page 14 4 Installation • The drying machine shall not be placed with the back side against a wall. Do not place the drying machine on Read the “Safety Instructions” first! its power cord. Before consulting the nearest Authorized Service for installing the drying machine, see 4.2 Removing the shipping safety group the information in the user guide and make sure WARNING!
- Page 15 The water discharge hose shall be fixed at maximum 80 cm height. Ensure that the water discharge hose do not get kinked, collapsed or pressed on between the discharge and the drying machine. Hose shall be connected not to NOTICE be disconnected from its location.
- Page 16 5 Preparation 5.3 Preparing the laundry to be dried Items such as coins, metal parts, needles, nails, screws, stones etc. may damage the drum group of the Read the “Safety Instructions” first! product or may cause functional operation issues. Therefore check all laundry that will be loaded to the 5.1 Laundry suitable for product.
- Page 17 • If you are using environment friendly filter, you are not required to clean the filter after every cycle. When the environment friendly icon is lit on the screen, change the filter cloth. 5.5 Correct load capacity NOTICE If the laundry in the product exceed maximum load capacity, it may not...
- Page 18 6 Running the product 6.1 Control Panel 1. On/Off/Program Selection button. 5. Low temperature selection button. 2. Start / Stand-by button. 6. Audible warning and child lock selection button. 3. End time selection button. 7. Wrinkle prevention selection button/ Drum 4.
- Page 19 6.4 Program selection and consumption chart Programmes Programme Description You can dry your heat-resistant cotton textiles with this programme. A drying setting suitable for the Cottons 1000 thickness of the products to be dried and the desired level of dryness should be selected. It dries single layer, casual cotton textiles in the most Cottons Eco 1000...
- Page 20 Daily Express Use this program to have 2 shirts ready for ironing. 1200 It is a long-term program that you can use for the clothes (baby clothes, towels, underwear, etc. cotton) you require hygeine. Hygiene is provided with high Hygiene temperature.
- Page 21 3. Press the End Time selection button and Allergy UK is the trademark of set the delay time you wish. End time LED the British Allergy Foundation. turns on. (When pressed and hold the The Seal of Approval has been button, End Time proceeds non-stop).
- Page 22 Cleaning of filter drawer/ • Press the Start/Stand-by button to start the program. heat exchanger Warning symbol flashes periodically to remind Adding and removing clothes that filter drawer must be cleaned. during stand-by If you want to add or remove clothes to/from 6.7 Starting the program the drying machine after the drying program Press the Start/Stand-by button to start the...
- Page 23 The inside of the drying machine shall be extremely hot when you cancel the program during machine operation, so run the refreshing program to allow it to cool down. 6.11 End of program When the program ends, the LED’s of End/ Wrinkle Prevention and Fibre Filter Cleaning Warning on the program follow-up indicator turn on.
- Page 24 7 Maintenance and cleaning • Clean the entire inner surface of the loading door and loading door gasket with a soft damp cloth. Service life of the product extends and frequently faced problems decrease if cleaned at regular intervals. This product must be unplugged during maintenance and cleaning works (control panel, body, etc.).
- Page 25 Tank warning symbol will flash. If this is the case, drain the water tank and press Start / Pause button to resume the drying cycle. To drain the water tank: Remove the water tank in the drawer or container carefully. Clean the condenser by applying pressurized water with...
- Page 26 8 Troubleshooting Drying operation takes too long. Fibre filter (interior and exterior filter) pores may be clogged. >>> Wash the fibre filters with warm water and dry. Condenser front side may be clogged. >>> Clean the front side of the condenser. The ventilation grills in front of the machine may be closed.
- Page 27 Wrinkle prevention icon or light is lit. Anti-Crease mode that prevents the laundry in the drier to crease may be activated. >>> Turn the drier off and remove the laundry Fibre filter cleaning icon is lit. Fibre filter (interior and exterior filter) may be unclean. >>> Wash the filters with warm water and dry.. A layer may be formed on the fibre filter pores that leads to clogging.
- Page 28 PRODUCT FICHE Complying Commission Delegated Regulation (EU) No 392/2012 BEKO Supplier name or trademark BTBC22XB Model name 7182483490 Rated capacity (kg) Air Vented Type of Tumble Dryer Condenser Energy efficiency class Annual Energy Consumption (kWh) 561,1 Automatic Type of Control...
