Q U I C K S T A R T G U I D E
KEPCO
I — INTRODUCTION
SCOPE OF MANUAL. This Quick Start Guide covers
the installation, checkout and operation of the Kepco BIT
802E Card installed in a BOP power supply. Full specifica-
tions and operating procedures are listed in the Operator
Manual that can be downloaded from the Kepco web site:
• www.kepcopower.com/support/opmanls.htm#bit
DESCRIPTION.
The Kepco BIT Card Series were
designed as an accessory for the Kepco BOP series bipo-
lar power supplies. The BIT 802E card acts as an interface
between the digital data bus and the BOP, accepting the
digital input data and converting it to an analog signal,
which in turn, controls the BOP output.
II — INSTALLATION
CAUTION: If the BIT card was not pre-installed in a
BOP at Kepco, you must install and calibrate the card
by following the instructions in the Operator Manual
which can be downloaded from the Kepco website (see
above). Failure to calibrate the unit could impact the
accuracy of settings and readbacks. It will not impact
remote operation of the unit.
CONNECT BIT 802E CARD TO NETWORK.
1. Connect the BIT 802E Interface Card to a network via
the LAN connector (see Figure 1). Use either a stan-
dard ethernet cable if using a HUB, or a crossover LAN
cable if connecting the BIT 802E directly to a computer.
The BIT 802E is not Auto-MDI-X enabled and requires
the crossover cable.
2. Apply power to BOP power supply. The BIT 802E will
beep for less than 1 second, then will be ready for use.
FINDING KEPCO POWER SUPPLIES ON THE LAN.
The PSfind utility can be downloaded from the Kepco web
site at:
www.kepcopower.com/drivers/drivers-dl3.htm#klp.
This utility finds all operational Kepco power supplies con-
nected to the LAN and then shows the MAC and IP
addresses of the models found.
KEPCO, INC.  131-38 SANFORD AVENUE  FLUSHING, NY. 11355 U.S.A. TEL (718) 461-7000  FAX (718) 767-1102
©2015, KEPCO, INC
Data subject to change without notice
An ISO 9001 Company.
BIT 802E
DIGITAL INTERFACE CARD
http://www.kepcopower.com   email: hq@kepcopower.com

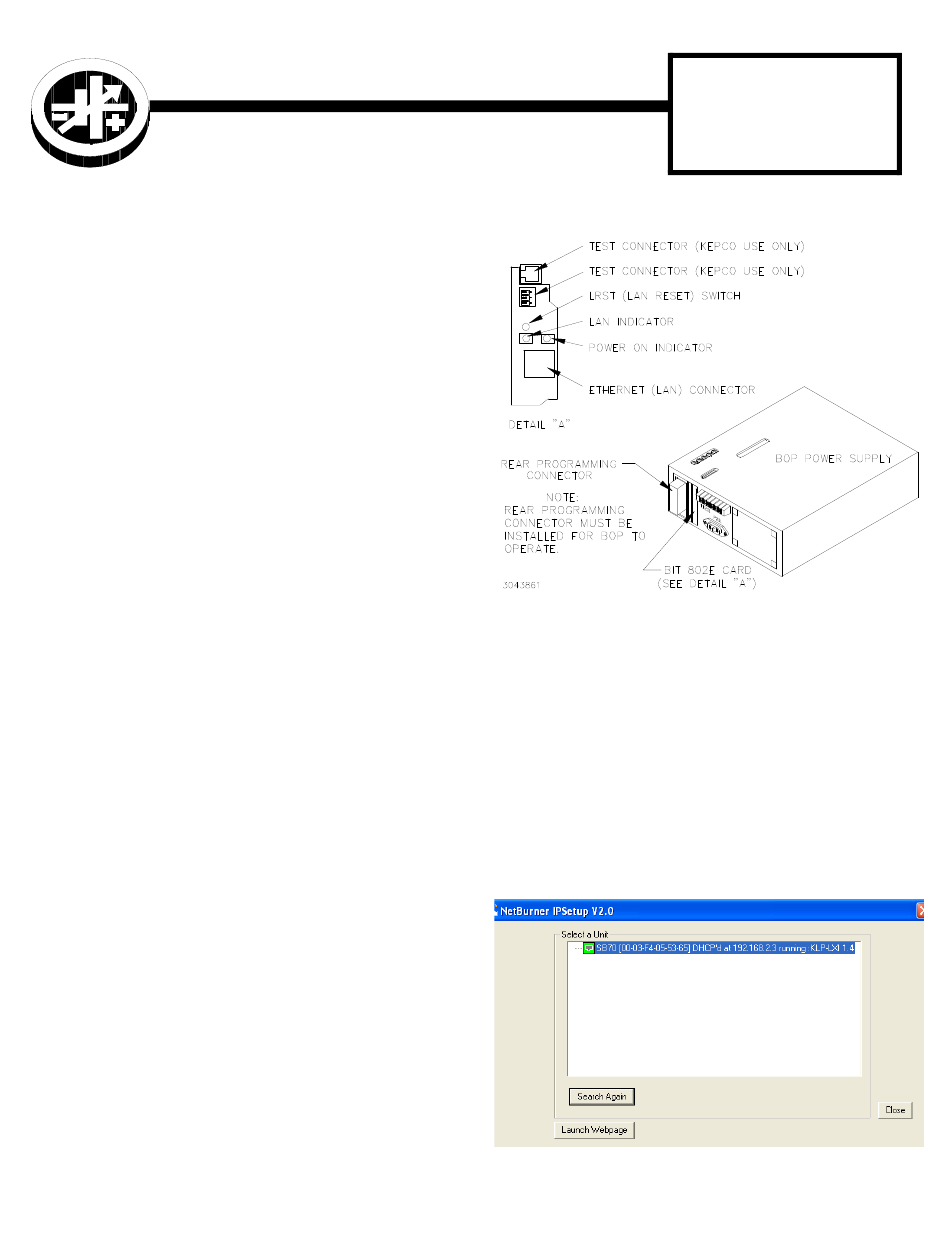

FIGURE 1. BIT 802E CARD, CONTROLS, INDICATORS, AND
To run the utility from your PC download the psfind.zip file
to your computer. Extract psfind.exe from the zip file to a
location of your choice, then double-click psfind.exe to run
the application. A separate window opens as shown on
Figure 2.Once the search is completed, all found units are
displayed in the Select a Unit window (the MAC address
appears in parentheses). If you do not see your device in
the Select a Unit window or if the icon to the left of the
selected instrument is red (not green), make sure it is
turned on and connected to the network, then click the
Search Again button.
FIGURE 2. PS FIND SCREEN
228-1807
BIT
802E
CONNECTORS
