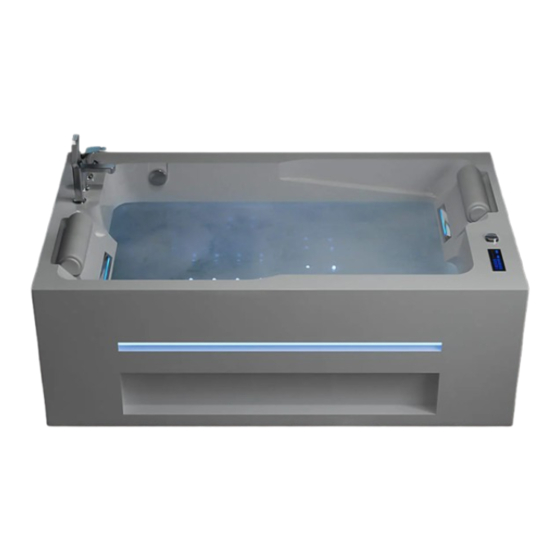

MASSAGE BATHTUB
MODEL:
EMPV-71JT802L
This product uses universal home power.
Size chart
71"
overflow
Backwater
drainer
bubble nozzles
massage jets
pillow rest
Computer-controlled
71"
3. 1"
Although all our massage bathtub are water tested before they leave our factory,
d. Insert the plug, start all the function for few minutes (which includes the
functions of massage ), inspect the tub
completely any defect must be reported to your dealer/distributor prior to
installation in order to have it covered under
warranty.
Filter
screen
The drain pipe is 31.5" long and the ground drain
should be 12" – 20" away from the bathtub drain so
12"
that the drainpipe can form an S-bend for
odor isolation
Tomaincontrolbox
H ow to connect the e le ctricity?
User needs to purchase two separate 110/120V 15amp plugs and
install the proper dedicated plug with a ground electrode to
the power line. Then insert the plug frmly.
Note: This product uses universal home power.
External circuitry is equipped with high sensitive and fast type
leakage protection switch. (Induced current rating below 15MA; trip
time should be less than 0.1 second; rated current is above 30A.)
From electrical source
The product should be installed
110-120V
alongside ground and electric leakage
Notice
switches by a licensed electrician.
Make sure the ground is connected. One side of
the ground should be connected to the ground
terminal of the motor and the stainless steel
frame; the other side should be connected to
the ground wires of the plug.
The bathtub must be connected to the ground.
The power outlet must be sealed well.
Notice
Make sure the surface of each wire is intact.
Ground terminal
The ground wire
from the switch
goes into this screw
