8 AND 10 CU.FT. 12V REFRIGERATOR WITH TOP
MOUNT FREEZER BUILT-IN
MODEL (LIPPERT PN)
ECR08DCGTA-PR-RHH (2023009175)
ECR08DCGTA-PR-LHH (2023009176)
ECR10DCGTA-PR-RHH (2023009185)
ECR10DCGTA-PR-LHH (2023009186)
TROUBLESHOOTING AND SERVICE MANUAL
This manual contains the product's basic information, safety, maintenance,
replaceable parts, fault diagnosis and basic troubleshooting procedures.

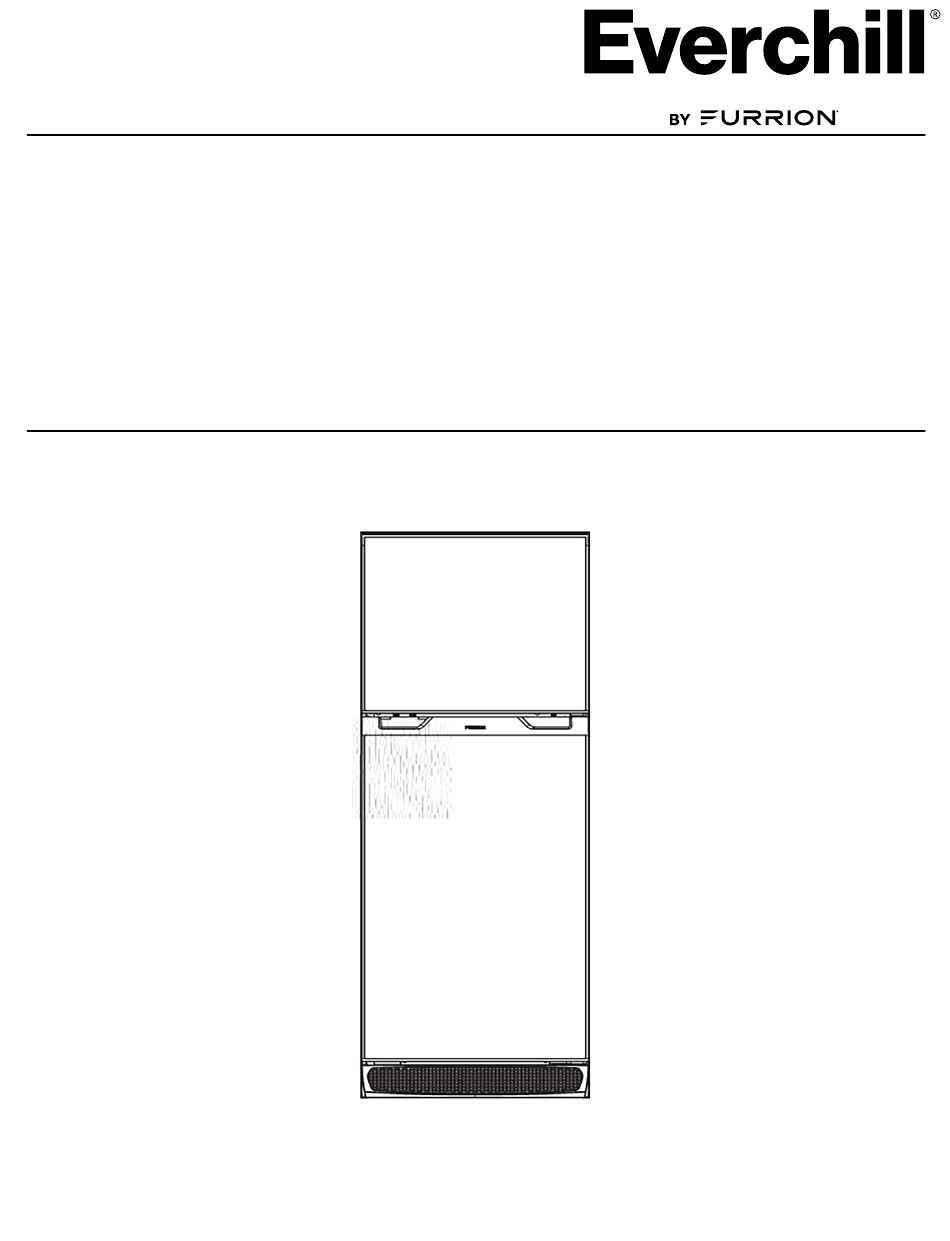

* Picture shown here is for reference only.
Advertisement
Table of Contents
Related Manuals for Lippert FURRION Everchill ECR08DCGTA-PR-RHH
Summary of Contents for Lippert FURRION Everchill ECR08DCGTA-PR-RHH
- Page 1 8 AND 10 CU.FT. 12V REFRIGERATOR WITH TOP MOUNT FREEZER BUILT-IN MODEL (LIPPERT PN) ECR08DCGTA-PR-RHH (2023009175) ECR08DCGTA-PR-LHH (2023009176) ECR10DCGTA-PR-RHH (2023009185) ECR10DCGTA-PR-LHH (2023009186) TROUBLESHOOTING AND SERVICE MANUAL * Picture shown here is for reference only. This manual contains the product's basic information, safety, maintenance,...
-
Page 2: Table Of Contents
Failure to correctly follow the provided instructions may result in death, serious personal injury, severe product and/or property damage, including voiding of the Lippert limited warranty. The "WARNING" symbol above is a sign that a procedure has a safety risk involved and may cause death or serious personal injury if not performed safely and within the parameters set forth in this manual. -
Page 3: Important Safety Instructions
The “CAUTION” symbol above is a sign that a safety risk is involved and may cause personal injury and/or product or property damage if not safely adhered to and within the parameters set forth in this manual. Always wear eye protection when performing service, maintenance or installation procedures. Other safety equipment to consider would be hearing protection, gloves and possibly a full face shield, depending on the nature of the task. -
Page 4: Power Source Requirement
Do not damage the refrigerant circuit. Do not damage the refrigerant tubing when handling, moving, or using your refrigerator. DANGER-Never allow children to play with, operate, or crawl inside your refrigerator. Risk of child entrapment. Before you throw away your old refrigerator: •... -
Page 5: Wire Connection Diagram
Wire Connection Diagram Fig. 1 Power Input: 9.6V Current: 20A Max Connect 1 terminal with Positive pole of 12V DC (Fig. 1). Connect 2 terminal with Negative pole of 12V DC (Fig. 1). If the unit is installed in an RV, the 3 GND terminal should be connected directly to the RV chassis (Fig. -
Page 6: Replacable Parts List
Replaceable Parts List Callout Part # Description Model 2021149632 ATC Blade Fuse 15A (Slow Blow) 2021124078 Drawer 2021124225 Big Door Bin 2021124221 Small Door Bin 2021124118 Freezer Door Bin 2021124113 Glass small shelf 2021128850 Spark-Free Thermostat (temperature controller) LED Light PCB (3mins time delay timer+diode 2021128864 as reverse connection protection) 2021123967... - Page 7 Callout Part # Description Model Fresher Door Assembly (8 cuft) ( door + left and ECR8DCGTA-PR-RHH 2023035368 right side cover + door sealing) ECR8DCGTA-PR-LHH Fresher Door Assembly (10 cuft) (door + left ECR10DCGTA-PR-RHH 2023035380 and right side cover + door sealing) ECR10DCGTA-PR-LHH 2021124055 Storage Lock...
-
Page 8: Troubleshooting
Troubleshooting Trouble Possible Reason Solutions Symptom Power source Check power wiring connection. connection is OK? Are breakers and Not working Check lamp working status. fuses broken? No electricity or Replace fuse. line trip? Is refrigerator stable? Adjusting refrigerator's leveling feet. Abnormal noise Does refrigerator Keep proper space between the refrigerator and walls. -
Page 9: Specifications
Specifications 8 Cu. Ft. 12 Volt Built-in 10 Cu. Ft.. 12 Volt Built-in Refrigerator Refrigerator Capacity (cu. ft.) 8 cu. ft. 10 cu. ft. Product Dimensions (W x 241/4 x 531/8 x 253/4” (616 x 1350 x 241/4 x 601/8 x 253/4” (616 x 1528 x H x D) 655mm) 655mm) -
Page 10: Warranty Request Information
If any of the following Warranty Request Information procedures are beyond the skill-set of the product's owner or installer, contact a certified technician to conduct these procedures before attempting to perform them. Attempting to perform any of the Warranty Request procedures without the proper training or skill-set can result in personal injury, product and/or property damage, including voiding of the limited warranty. - Page 11 If the refrigerator and compressor are running after fuse replacement, check amperage. Amperage should now be between 3-12 amps. Run the refrigerator for 24 hours. III. Measure freezer and refrigerator temperatures. Freezer temperature reading should be between -10 °F to 15 °F degrees. Refrigerator temperature reading should be between 32 °F to 43 °F degrees.
- Page 12 If refrigerator is NOT on: Verify unit (RV) is connected to shore power. If necessary, connect to shore power. Converter breaker is NOT tripped. If necessary, reset breaker. Coach battery is healthy. If necessary, fully charge battery. With the refrigerator on, connect a voltage/amp meter to the refrigerator and record the amp reading. If the amp reading is between 0-0.5 amps and the compressor is NOT running, check the fuse.
-
Page 13: Product Test 1
Replace the refrigerator. Record the finding on the Refrigerator Checklist for Warranty Request form. Working on an electrical appliance connected to a power supply can result in serious personal injury, product and/or property damage, including voiding of the product's limited warranty. Disconnect power to the unit (RV) and electrical appliance. -
Page 14: Product Test 3
Refrigerator temperature reading should be between 32 °F to 43 °F degrees. If freezer and refrigerator temperatures are NOT within acceptable ranges, go to Product Test 3. If freezer and refrigerator temperatures are within acceptable ranges, issue a Technical Bulletin for public viewing/download that covers a Hard Reset procedure and proper refrigeration storage. -
Page 15: Product Test 5
If the refrigerator starts up and begins to cool normally, the issue is with RV power. NOTE: Checking for, and finding, RV wiring is a diagnostic test NOT covered by Lippert Warranty. If the refrigerator does NOT start up, replace the compressor control module. -
Page 16: Troubleshooting Procedures
Troubleshooting Procedures Subject: Instructions for replacing existing inline 15A cartridge fuse with inline 15A blade fuse. Models Covered: FCR10DCDTA, FCR10DCGTA, FCR08DCGTA Service Instruction Steps: Below instructions to Replace fuse holder adds 10 minutes to current service rate for fuse cartridge replacement. De-energize the refrigerator, remove from cabinet, and remove the back cover to expose the fuse wiring in the compressor area. - Page 17 Cut the cartridge fuse out of the line (Fig. 5A), cut as close to the cartridge fuse holder (Fig. 6A) as possible to maintain good wire length to splice into. Fig. 5 Fig. 6 Cut back about 1/4" to expose bare wire on both previously cut wires (Fig. 7A). Twist the stranded wire tight together (Fig.
- Page 18 The butt splice connector has an integrated heat shrink sheathing (Fig. 10A), heat this appropriately to shrink tight to the wire. Careful of surrounding wires, and do not overheat!! Fig. 10 Inspect finished wiring (Fig. 11). Fig.11 Re-install the ‘RED’ and ‘WHITE’ blade terminals to the compressor control module (Fig. 12A). ‘WHITE’ goes to the top blade (Fig.
- Page 19 10. Restrain the wire bundle with the provided Zip-Tie (Fig. 13A). Stuff the blade fuse holder in the empty cavity area (Fig. 14A). Fig. 14 Fig. 13 11. Re-install back cover and re-energize refrigerator to check that compressor and interior light work, confirm there are no other issues.
- Page 20 SUPPORT.LCI1.COM/FURRION The contents of this manual are proprietary and copyright protected by Lippert. Lippert prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized Lippert representative has been provided. Any unauthorized use shall void any applicable warranty. ...
