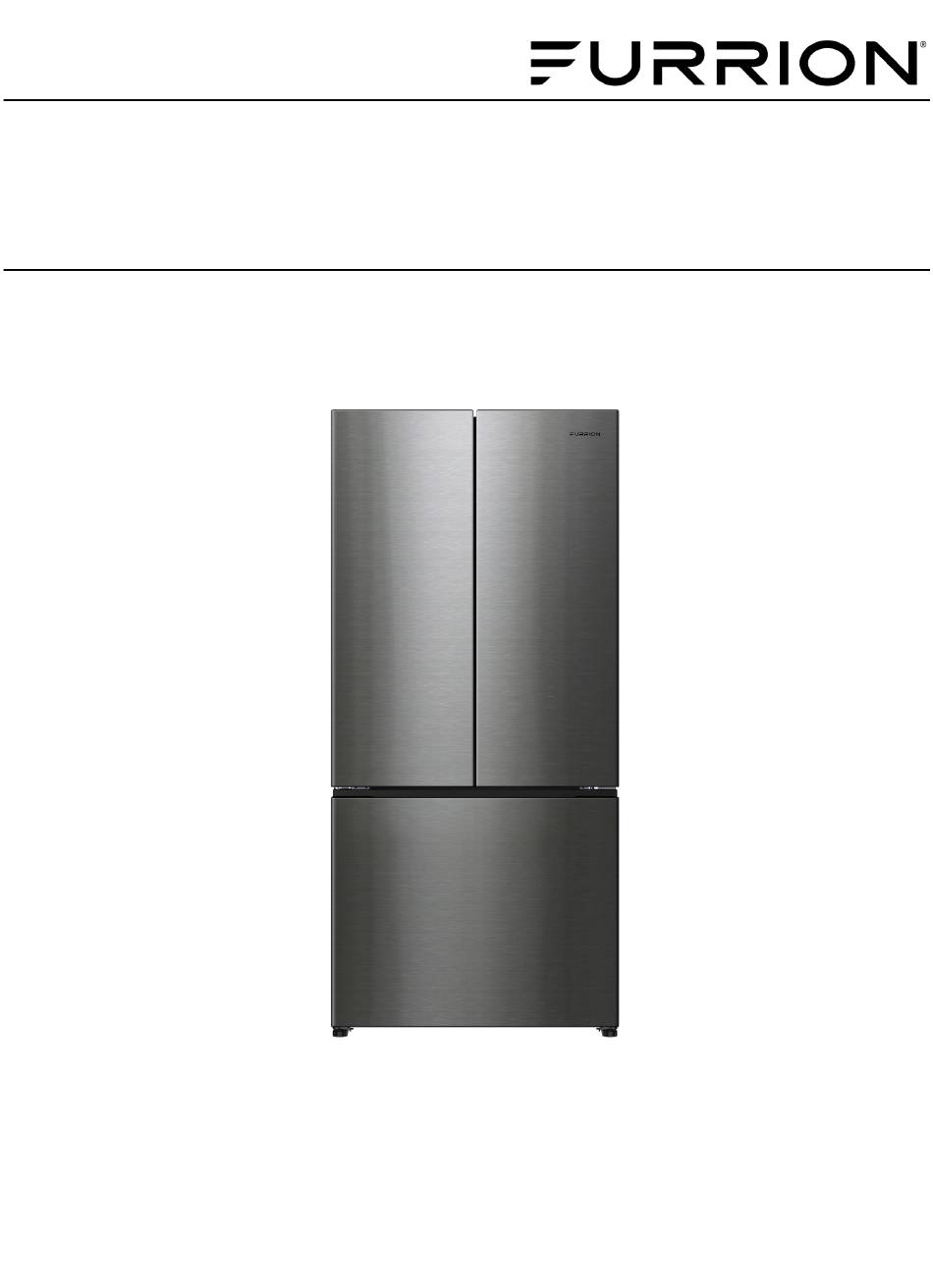

18 Cu.ft. 110V French Door Refrigerator with Ice Maker
MODEL (LIPPERT PN)
FCR18ACAFA-SV (2023056917)
INSTRUCTION MANUAL
This manual contains the product's basic information, safety, maintenance,
replaceable parts, fault diagnosis and basic troubleshooting procedures.
* Picture shown here is for reference only.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lippert FURRION FCR18ACAFA-SV
Summary of Contents for Lippert FURRION FCR18ACAFA-SV
- Page 1 18 Cu.ft. 110V French Door Refrigerator with Ice Maker MODEL (LIPPERT PN) FCR18ACAFA-SV (2023056917) INSTRUCTION MANUAL * Picture shown here is for reference only. This manual contains the product's basic information, safety, maintenance, replaceable parts, fault diagnosis and basic troubleshooting procedures.
-
Page 2: Table Of Contents
Thank you and congratulations on purchasing this Furrion product. Before operating your new product, please read these instructions carefully. This instruction manual contains information for safe use, installation and maintenance of the product. Please keep this instruction manual in a safe place for future reference. This will ensure safe use and reduce the risk of injury. -
Page 3: Important Safety Instructions
Important Safety Instructions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your refrigerator. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your refrigerator. WARNING 1. -
Page 4: Power Source Requirement
1. WARNING - Do not use electrical appliances inside the food storage compartments of the refrigerator unless they are of the type recommended by the manufacturer. 2. Maintenance - Disconnect the power source from your refrigerator before carrying out user maintenance on it. 3. -
Page 5: Features And Parts
Features and Parts Vertical Baffle Guide Block Glass Shelves Refrigerator Door Shelves Refrigerator Crisper Cover Door Seal Fruit and Vegtable Crispers Upper Freezer Drawer Lower Freezer Drawer Note: Actual refrigerator configuration may vary slightly from the image above. Note: Refrigerator will perform at optimal efficiency with all shelves, drawers and baskets in their original position. -
Page 6: Preparation And Installation
Preparation and Installation Refrigerator Unit Preparation 1. Packaging Remove all packaging, including the foam backing at the bottom of refrigerator and the tape fixing accessories in the box. 2. Standing time Place the refrigerator in a proper up-right position for more than one hour before connecting power to ensure refrigerant settling for its normal operation. - Page 7 3. Level ground To ensure proper function, the refrigerator must be placed on a flat, firm and stable surface, and rest level on four supports. Both sides are fixed with matching screws Fig. 1 4. Fixing the refrigerator to the cabinetry The refrigerator can be affixed to the RV cabinetry by installing the screws provided (Fig.1), or a similar Pan Head type where the shank connects into the backer support by 1"...
-
Page 8: Installation Guide Of Door Shelves
Installation Guide of Door Shelves tray off upward. Fig. 2 Fig. 3 Place the tray above the mounting position on the inside of the refrigerator door (Fig.2) and slide the shelf down toward the bottom of the door until it locks into place (Fig.3). Reverse for removal of shelf. -
Page 9: Ice Maker
Ice Maker ● After turning on your refrigerator, the ice will start to be made between 12 and 24 hours. ● The ice maker produces 3.5 lbs of ice per day, depending on the temperature of the freezer, how often the door opens, and other using conditions (amount of food in the freezer, etc). -
Page 10: Operational Instructions
Operational Instructions 1. Operational Precautions ● Do not operate the appliance below the operating temperature range for extended periods of time. This might effect the appliance's performance in the long term. ● The internal temperature could be affected by factors like the location of temperature and frequency of door opening, etc. - Page 11 3. Energy Saving Tips ● Let hot foods cool to room temperature before placing in the refrigerator. ● Be sure to wrap foods properly, and wipe containers dry before placing them in the refrigerator. This cuts down on frost build-up in the refrigerator. ●...
-
Page 12: Functions And Operation
Functions and Operation 1. Setting the functions ● The LED display turns bright when the door is open. Push the "Select" button to set functions. ● Entering the quick freezing mode: Push the "Select" button (Flashing 5 times). When the quick freezing pattern turns bright, it is in the quick freezing mode. -
Page 13: Maintenance And Cleaning
Fig. 9 Humidity Control Maintenance and Cleaning 1. Replacement of LED Light ● When the lighting is damaged, please remove the cover first and then replace the LED lighting. ● The specific operations are shown in the following diagram: Fig. 10 1. -
Page 14: Troubleshooting
Carefully wipe dry the door gasket and clean the groove. After cleaning, fix the four corners of the door gasket first and then embed it segment by segment into the door groove. 3. Shelf and Crisper Removal ● Refrigerator Shelf - When removing the shelf, lift it up first and then pull it out; when installing the shelf, place it into position before putting it down. - Page 15 Normal Condition Cause and/or Solution When the ambient temperature is too high or put too much fresh Compressor long time running foods into the refrigerator, it will take a longer time to cool down until the appliance runs at the setting temperature. Odorous foods shall be packaged tightly;...
-
Page 16: Specifictions
Note: if the above descriptions are inapplicable to troubleshooting, do not disassemble and repair it yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact the local store where your purchase was made. This product should be serviced by an authorized technician and only genuine parts should be used When the refrigerator is not in use for long periods, disconnect from the power source, empty, clean and keep doors open to prevent unpleasant odors. - Page 17 FURRION.COM The contents of this manual are proprietary and copyright protected by Lippert. Lippert prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized Lippert representative has been pro- vided. Any unauthorized use shall void any applicable warranty. ...
Need help?
Do you have a question about the FURRION FCR18ACAFA-SV and is the answer not in the manual?
Questions and answers
I would also like to know how to power on and off this frig.
To power on or off the Lippert FCR18ACAFA-SV refrigerator, press the power button for 2 seconds.
This answer is automatically generated
How do I turn it off for storage?
To turn off the Lippert Furrion FCR18ACAFA-SV for storage:
1. Clean the appliance.
2. Block the door open or remove it if necessary.
3. Store the appliance in a dry, ventilated place away from heat sources.
4. Do not place heavy objects on top.
5. Ensure the unit is not accessible to children.
This answer is automatically generated
How do you turn the fridge on and off?
