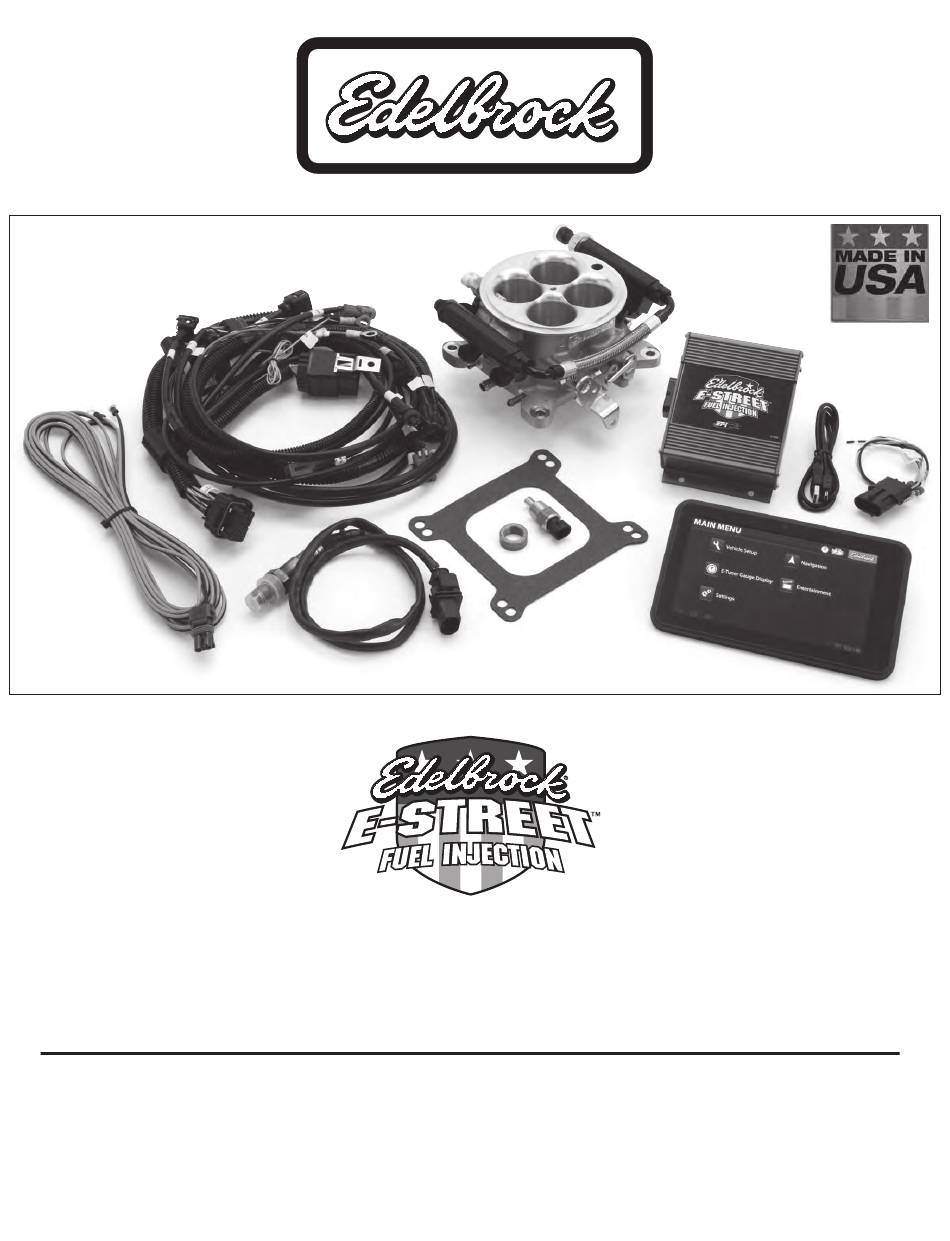

- Page 1 ® Edelbrock E-Street Electronic Fuel Injection System Installation Instruction Manual for #3600, 3601, 3602 & 3606...
-
Page 2: Table Of Contents
Please see the Owner's Manual included with the Tablet for step by step instructions on updating your E-Street software. It’s also a good idea to visit the Edelbrock Tech Page to verify you have the latest E-Street EFI installation manual (www. -
Page 3: Part #3600, 3601, 3602, 3606
It is suggested that the 02 sensor threaded fitting be installed by a professional muffler shop prior to the installation of the Edelbrock E-Street EFI system. DO NOT drive the vehicle with the 02 sensor installed and not plugged in. An 02 sensor threaded fitting plug is provided for your convenience. -
Page 4: Primary Kit Components
HARNESS BAG #2 Tach Input Harness E-Street Main Harness Fuel Pump Harness Fuel Pump Harness Fan/AC Trigger Pigtails (3) Tie Wraps (10) ©2013 Edelbrock LLC Part #3600, 3601, 3602, 3606 E-Street EFI Installation Instructions Brochure No. 63-3600 Rev. 03/13/13 - QT/mc... -
Page 5: Tablet Components
High-Heat Anti-Seize Compound or A/C kick up - one relay required for each accessory) Throttle, Cruise Control & Trans. Kick-Down Mounting Bracket (See general Edelbrock catalog if necessary) ©2013 Edelbrock LLC Part #3600, 3601, 3602, 3606 E-Street EFI Installation Instructions Brochure No. -
Page 6: Components Layout
COMPONENT LAYOUT The Edelbrock E-Street EFI system delivers fuel and air to the engine via an induction system consisting primarily of a 4-barrel throttle body, dual fuel rails, and four fuel injectors. The induction system is fully assembled, tested, pressure checked, and flowed at the Edelbrock Factory. -
Page 7: Fuel Injectors
If necessary, the ECU may also be moved inside the driver's compartment. Adjustments to the battery and ground leads may be required. ©2013 Edelbrock LLC Part #3600, 3601, 3602, 3606 E-Street EFI Installation Instructions Brochure No. 63-3600 Rev. 03/13/13 - QT/mc... -
Page 8: Main Harness Layout
Coolant Temp LR / RR Fuel PSI Manifold Air Temp Manifold Absolute Pressure (MAP) Idle Air Control (IAC) Valve Throttle Position (TPS) ©2013 Edelbrock LLC Part #3600, 3601, 3602, 3606 E-Street EFI Installation Instructions Brochure No. 63-3600 Rev. 03/13/13 - QT/mc... -
Page 9: Electrical Connections
ELECTRICAL CONNECTIONS The Edelbrock E-Street EFI system interprets overall engine operating conditions and fuel requirements based on readings from sensors that measure specific engine conditions. These sensors, with the exception of the O2 sensor and Coolant Temperature sensor, are designed as an integral part of the EFI system and require no installation. The O2 sensor must be installed in the exhaust system using an 02 sensor threaded fitting. -
Page 10: Wideband Oxygen (O2) Sensor Installation
NOTE: It is suggested that the 02 sensor threaded fitting be installed by a professional muffler shop prior to the installation of the Edelbrock E-Street EFI system. do NoT drive the vehicle with the 02 sensor installed and not plugged into the E-Street main harness. -
Page 11: E-Street Installation
10. Attach throttle linkage and verify it moves freely without from the fuel system. interference. NOTE: Skip Steps 2-4 if using an Edelbrock Fuel Sump System (#3605, 3606, 3607 or 36052). Applications using Low Pressure Electric fuel pumps may already have a block off plate installed. The Edelbrock Fuel Sump is compatible with Low Pressure Electric fuel pumps (6 PSI max). - Page 12 Tach Input connector on the Main MUST BE LOADED TO THE E-STREET ECU BEFORE Harness. STARTING THE VEHICLE. ©2013 Edelbrock LLC Part #3600, 3601, 3602, 3606 E-Street EFI Installation Instructions Brochure No. 63-3600 Rev. 03/13/13 - QT/mc...
-
Page 13: Tablet Initial Setup And Startup Procedure
WARNING: The Edelbrock E-Tuner Tablet is intended as a hands free tuning display gauge and should only be used as such while driving. Any function that requires prolonged attention should only be performed after coming to a complete stop. distracted driving is extremely dangerous and illegal in most states. - Page 14 See Fig. 4. and allow adequate time for the self learning feature Fig. 4 to complete. If you have any questions, please contact the Edelbrock Tech Hotline at 1-800-416-8628 Monday-Friday from 7:00AM to 5:00PM PST. ©2013 Edelbrock LLC...
-
Page 15: Getting Familiar With E-Street Efi
Fault Warning Screen with a fault necessary or an incorrect setup may have been loaded. description and option to CANCEL or IGNORE the fault. Please contact the Edelbrock Tech Support Line for Selecting CANCEL will disregard the fault for 20 seconds. If assistance (1-800-416-8628). -
Page 16: Advanced Setup Menu
Engine RPM is less than 1400 RPM. Engines with larger Camshaft Duration will generally require richer Air Fuel Ratios at Idle. Suggested Idle AFR Range 11.8 – 13.8. ©2013 Edelbrock LLC Part #3600, 3601, 3602, 3606 E-Street EFI Installation Instructions Brochure No. 63-3600 Rev. 03/13/13 - QT/mc... - Page 17 50 RPM increments. When Engine RPM exceeds the set point the Fuel Injectors will be shut off until engine speed drops below the setpoint. ©2013 Edelbrock LLC Part #3600, 3601, 3602, 3606 E-Street EFI Installation Instructions Brochure No. 63-3600 Rev. 03/13/13 - QT/mc...
-
Page 18: E-Street Main Menu Icons
Fig. 10 clear all the self learn values. WARNING! - Loading a custom map should only be done if directed by the Edelbrock Tech Support Team. e. The Home Icon - The Red House icon seen on the lower left corner of Figure 11 is the home key. -
Page 19: Troubleshooting
Getting Familiar w/ E-Street EFI section on Page 14 of recommended that this action be preformed until this instruction manual. you have become proficient at using the Edelbrock E-Tuner Application. IDLE HUNT OR SURGING • Is the idle speed screw on the throttle body properly set? b. - Page 20 - If the idle speed screw is properly set, and the TPS is this instruction manual. not at 10° when the engine is idling, you may have a faulty TPS sensor. Please contact the Edelbrock Tech Support team at 1-800-416-8628 for further assistance.
-
Page 21: Fan / Ac Trigger Installation
- Refer to the Adjust 02 Setpoints section on Page 15, Step 2 of this instruction manual, or in the Advanced Setup section of the tablet. IMAGE A IMAGE B ©2013 Edelbrock LLC Part #3600, 3601, 3602, 3606 E-Street EFI Installation Instructions Brochure No. 63-3600 Rev. 03/13/13 - QT/mc... -
Page 22: Fan / Ac Trigger Diagram
FAN #1 PIN 29 (30A) E-STREET MAIN HARNESS FAN #2 PIN 30 (30A) E-STREET MAIN HARNESS PIN #7 AC COMPRESSOR CLUTCH ACTIVATION SIGNAL ©2013 Edelbrock LLC Part #3600, 3601, 3602, 3606 E-Street EFI Installation Instructions Brochure No. 63-3600 Rev. 03/13/13 - QT/mc... -
Page 23: Main Harness Schematics
MAIN HARNESS SCHEMATIC PINOUT DIAGRAM -AMP Harness side of connector. ©2013 Edelbrock LLC Part #3600, 3601, 3602, 3606 E-Street EFI Installation Instructions Brochure No. 63-3600 Rev. 03/13/13 - QT/mc... -
Page 24: Warranty
In the best interest of Edelbrock LLC to provide our customers with the highest quality performance products. Edelbrock warrants the Edelbrock E-Street EFI System to be free from defects in both workmanship and materials for a period of one year from date of purchase, provided that the product is properly installed and subjected to normal use and service, is not used for racing or competition purposes and that the product is not modified or altered in any way unless specified by our instructions.
