PLEASE study these instructions carefully before beginning this installation. Most installations can be accomplished with common tools and procedures.
However, you should be familiar with and comfortable working on your vehicle. If you do not feel comfortable performing this installation, it is
recommended to have the installation completed by a qualified mechanic.
If you have any questions, please call our Technical Hotline at: 1-800-416-8628, 7:00 am - 5:00 pm, Pacific Standard Time, Monday through Friday.
IMPORTANT NOTE: Proper installation is the responsibility of the installer. Improper installation
will void your warranty and may result in poor performance, engine damage, transmission damage, or vehicle damage.
BEFORE YOU BEGIN:
Verify contents of the kit.
Check to confirm you've received the correct components for your
vehicle.

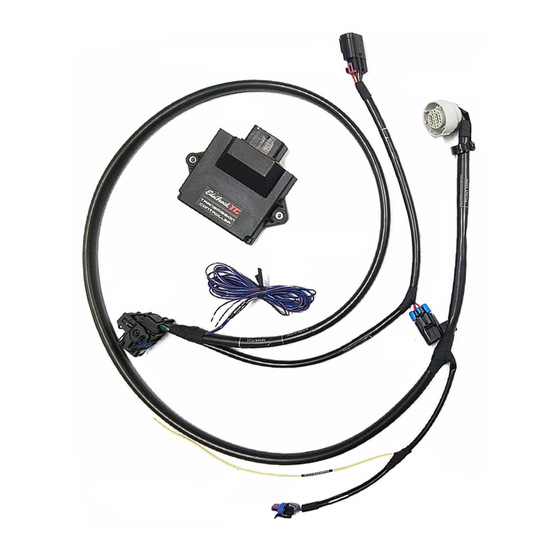

• Transmission Controller (TCU)
• TCU Main Harness
• Engine Sub-harness
Inspect the transmission. Make sure your transmission is in
good mechanical condition. A malfunctioning transmission may
harm the Edelbrock TCU and will void warranty. It is recommended
to have the transmission inspected by a qualified technician.
Transmission Main Plug. The Edelbrock TC is compatible with
4L60E & 4L80E Transmissions. Early GM 4L80E transmissions had
two (2) types of main body connectors: the later version is still
available, but the older version (pre-1994) has been discontinued.
While the Edelbrock TC is NOT compatible with the early connector
for the discontinued model, fortunately all 4L80 transmissions
can be easily upgraded to the internal wiring harness & plug
from a late-model GM 4L80E. The harness can be order from
General Motors (Part No. P/N24200161) and installed by a qualified
transmission shop.
Download the App. You can calibrate and tune your transmission controller from the convenience of your smartphone or tablet.
To begin, search for the free "Edelbrock TC Tuner"
device communicate via Bluetooth connection.
Catalog #36212
Rev. 7/28/21 - BB
Part# 36211(Universal w/ CAN), 36212 (Pro-Flo 4), 36213 (Carbureted)
®
app in the Google Play or Apple App store. The TCU and Android or Apple

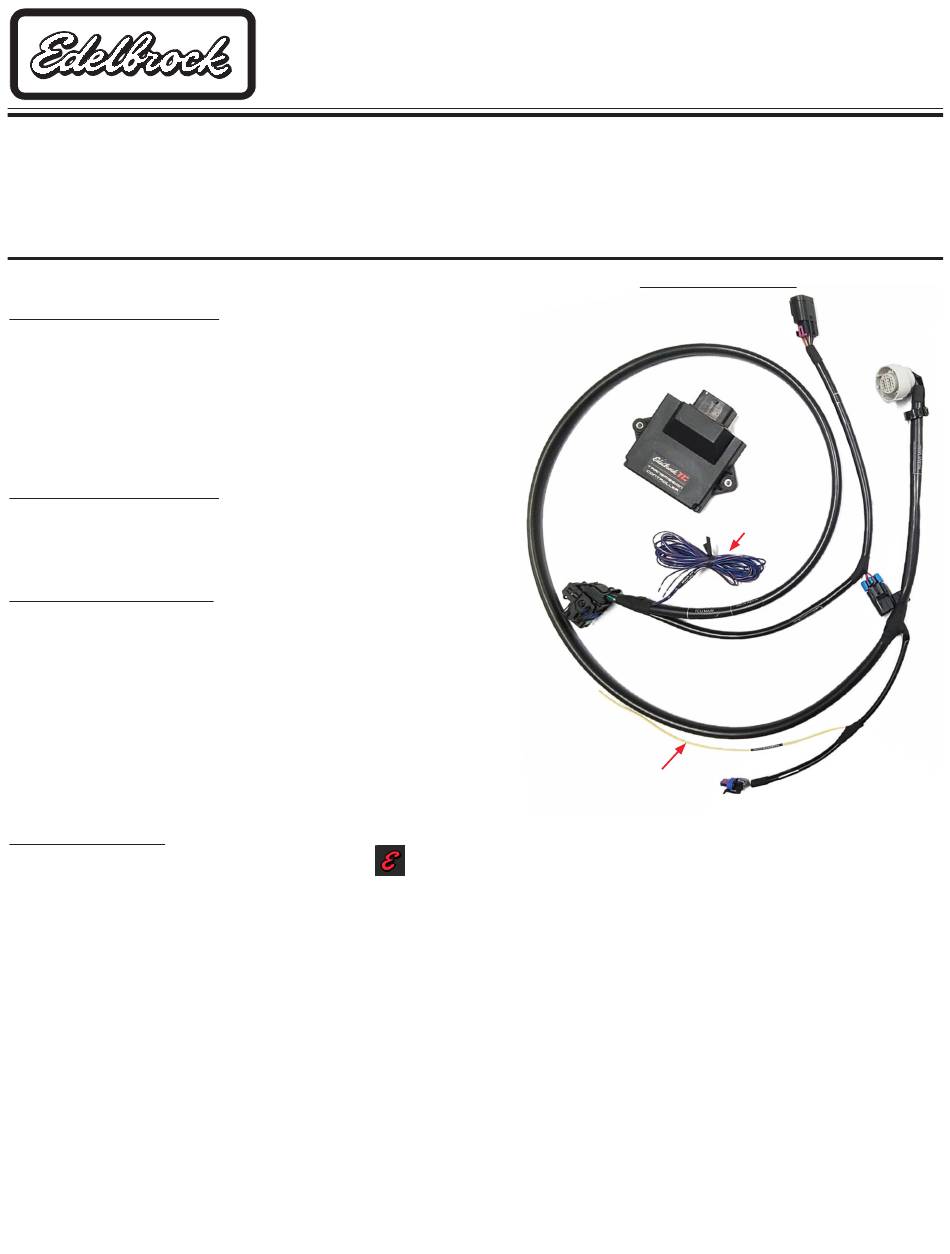

EDELBROCK TC, Transmission Controller
TO ENGINE SUB-HARNESS
TO TCU
TRANSFER CASE
Page 1
GM 4L60E, 4L80E
INSTALLATION INSTRUCTIONS
TCU MAIN HARNESS
TCU
MODE/SPEEDO
TOSS
TO TRANS
FUSE
©2021 Edelbrock LLC
Brochure #63-36212
Advertisement
Related Manuals for Edelbrock 36211
Summary of Contents for Edelbrock 36211
- Page 1 Inspect the transmission. Make sure your transmission is in good mechanical condition. A malfunctioning transmission may MODE/SPEEDO harm the Edelbrock TCU and will void warranty. It is recommended to have the transmission inspected by a qualified technician. TO TCU Transmission Main Plug. The Edelbrock TC is compatible with 4L60E &...
-
Page 2: Installation
3. Mounting the TCU. The Edelbrock TC housing is water resistant so you can mount the controller inside the vehicle or in the engine compartment. Use the built-in flanges to secure the controller in place with screws to a flat surface. - Page 3 Connector. Once finished, skip to Step 8 - Final Checks. 5B. 36211 Universal EFI w/ CAN The Edelbrock (TC) Transmission Controller can obtain throttle position (TPS) & engine speed (RPM) directly from a compatible ECU through the CAN bus. a. Connect Universal EFI w/ CAN Engine Sub-harness to the Main Harness Connector and Route the Switched (+12V) Power, Ground, Can Hi &...
- Page 4 G. Tap the Back Arrow to return to the home screen. 10. TC Setup - Proceed through the Setup Wizard to complete the installation. See (?) for help. 11. Road Test - The Edelbrock TCU uses information about throttle position, vehicle speed, and gear level to shift for optimum performance.
- Page 5 Sets your shifting mode to either Automatic or Manual. If the Shift Mode is set to “Manual”, automatic shift sequencing is disabled. This means the vehicle is in whatever gear you put the shift lever in. In manual mode, the Edelbrock TC still provides pressure modulation and torque converter control -- you just have to manually change gears.
