Amplicom TCL 100 User Manual

Hide thumbs Also See for TCL 100:

Advertisement

Quick Links

Download this manual
TCL 100
User Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the TCL 100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amplicom TCL 100

Summary of Contents for Amplicom TCL 100

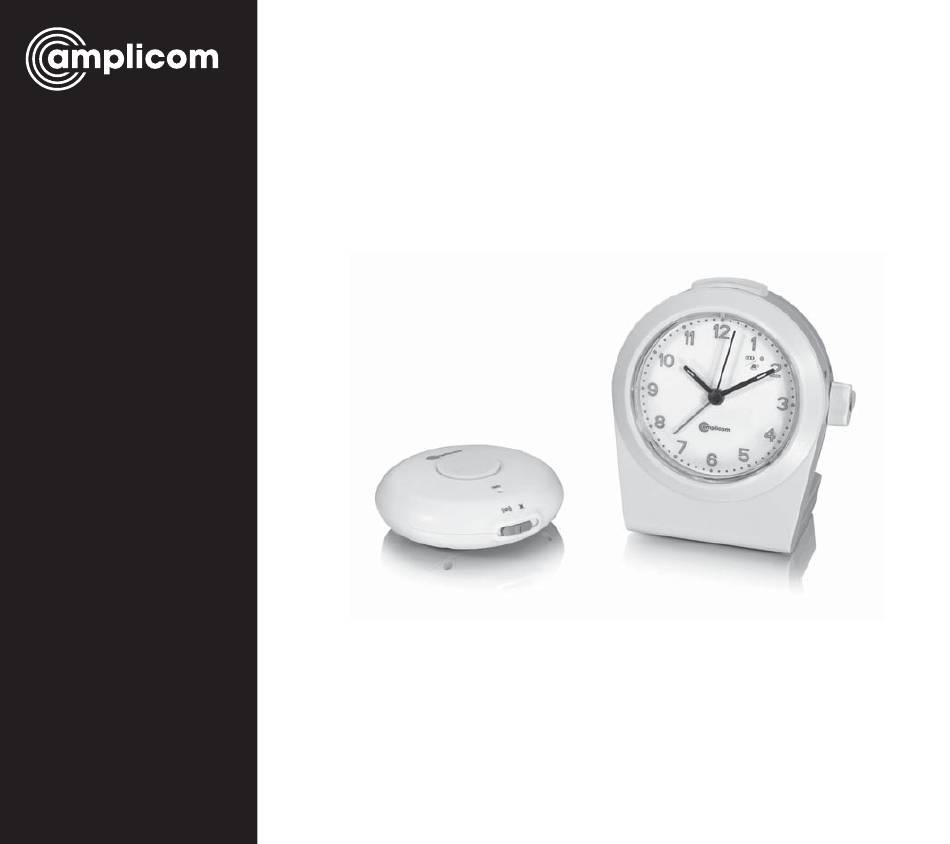

  • Page 1 TCL 100 User Guide...
  • Page 2 Contents Analog Alarm Clock Features..3 Clock Functions ......9 Cordless Vibration Pad Features .. 4 Help and Support ......12 Important Safety Instructions ..5 Troubleshooting Guide ....12 Included Equipment ....... 6 Maintenance and Warranty ..13 Set Up ..........6 Technical Details ......
  • Page 4 Clock Features TCL 100 Analog Alarm Clock Features Snooze button/ Alarm ON/OFF Alarm light/ incoming call light/Stop alarm LED: Power ON/ OFF/Battery ON/OFF Volume control Telephone line socket Set one of 5 acoustic signals Power adapter socket Pitch Vibration pad...
  • Page 5 Clock Features TCL100 Cordless Vibration Pad Features LED: Alarm ON/ OFF/Battery charge low Vibration pad ON/OFF Battery compartment Screws for battery compartment Connection cable socket Service Center...
  • Page 7 Getting started Getting Started — Included Equipment • 1 Analog Alarm Clock • 3XAAA, 800mA Ni-MH • 1 Power Adapter Rechargeable Battery Pack for • 1 Vibration Pad Vibration Pad • 1 Connector Cable for Vibration Pad • Telephone Cord •...
  • Page 9 Getting started Getting started Getting started LED Display Notifi cation Alarm Clock Face The following functions are on the alarm clock face: Red: Alarm function is activated. Flashing Orange: Alarm function is activated, and battery charge is low. Vibration Pad The following functions are on the vibration pad: Flashing Green Every 2 Seconds: Vibration pad is on.
  • Page 10 Turn the volume rotary knob to set the maximum volume for the alarm and telephone ringer. Set the volume to a quiet setting to start and increase it slowly to the desired maximum volume. 1-866-AMPLICOM (267-5426)
  • Page 11 Clock functions Caution: Exposure to the alarm at full volume for a long period could cause ear damage. Selecting the acoustic signal Turn the acoustic signal rotary knob to required acoustic signal. Setting the pitch Turn the pitch rotary knob to set the pitch. It may be possible to detect higher or lower pitch tones even at low volumes.
  • Page 12 Activating the vibration pad After connecting the vibration pad, use the switch on the vibration pad to turn the vibration function on and off. There are two settings available: (from left to right) On and Off. 1-866-AMPLICOM (267-5426)
  • Page 13 If you have problems with your device, please refer to the following information before calling for support. If you continue to have problems, please call the Service Center at 1-866-AMPLICOM (267-5426) for further assistance. Troubleshooting guide My clock does not work 1.
  • Page 14 • Never use cleaning agents or solvents. Warranty AMPLICOM equipment is produced and tested according to the latest production methods. The implementation of carefully chosen materials and highly developed technologies ensure trouble free functioning and a long service life. The terms of the warranty do not apply where the cause of the equipment malfunction is the fault of the telephone network operator or any interposed private branch extension system.
  • Page 15 Maintenance and warranty If your equipment shows signs of defect during the period of warranty, please return to the sales outlet in which you purchased the AMPLICOM equipment together with the purchase receipt. All rights to claims under the terms of warranty in accordance with this agreement must be asserted exclusively with regard to your sales outlet.
  • Page 16 Optimum ambient temperature 32˚F to 104˚F (0˚C to 40˚C) Optimum storage temperature -4˚F to 140˚F (-20˚C to 60˚C) Dimensions W / H 4.5 x 1.4 in (113.3 x 36.6 mm) Weight 6.3 - 7 oz (180 - 200 g) 1-866-AMPLICOM (267-5426)
  • Page 17 Questions? ¿Dudas? Amplicom USA Service Center 310 Ambrose Avenue Nashville, TN 37207 V/TTY: 1-866-AMPLICOM (267-5426) www.amplicomusa.com Distributed by: Amplicom USA LLC Made In China Distribuido por: Amplicom USA LLC Hecho en China...
  • Page 18 TCL200 User Guide...
  • Page 21 LOCK EATURES TCL200 Digital Alarm Clock Features Front View Set weekday Snooze button and time /Voice prompt Set alarm time /Incoming call and alarm light /Stop activation alarm period LED: Alarm 1 LED: Alarm ON/OFF period, Alarm ON/OFF Monday to Friday ON/OFF LED: Alarm 2 ON/OFF...
  • Page 22 LOCK EATURES Back View Volume Vibration pad control socket Set one of Battery 5 acoustic compartment signals Set alarm Pitch period Vibration and Acoustics Flashing lamp ON/OFF Snooze delay Dimmer ON/ Telephone line socket Power adapter socket Service Center...
  • Page 23 IBRATION EATURES TCL200 Cordless Vibration Pad Features LED: Alarm ON/ OFF/Battery charge low Vibration pad ON/OFF Battery compartment Screws for battery compartment Connection cable socket 1-866-AMPLICOM (267-5426)
  • Page 25 • 2XAAA, 500mA Ni-MH Rechargable • Battery Compartment Cover Battery for Alarm Clock Setup Connecting the alarm clock 1. Insert the supplied batteries in the clock’s battery compartment. Important: Pay attention to correct polarity when inserting the batteries. 1-866-AMPLICOM (267-5426)
  • Page 27 4. Use the Increase/Decrease Value buttons as needed to set the current hour, and then press the Set Weekday and Time button. The alarm clock will announce the minute currently set. 1-866-AMPLICOM (267-5426)
  • Page 28 ETTING STARTED 5. Use the Increase/Decrease Value buttons as needed to set the current minute, and then press the Set Weekday and Time button. The alarm clock will announce the complete weekday and time setting. 6. Clock voice prompt on/off setting: Press and hold “+” button for 10 seconds. If the voice prompt is weekday and time, the setting will be on.
  • Page 29 1 or 2 but not period 1+2. LED Display Notifi cation Vibration Pad The following functions are on the vibration pad: Flashing Green Every 2 Seconds: Vibration pad is on. Red: Vibration pad is charging. Flashing Red: Battery charge is low. 1-866-AMPLICOM (267-5426)
  • Page 30 LOCK FUNCTIONS Clock Functions Certain functions require entering test mode before setting. Turning the alarm on/off Turn the alarm on/off rotary knob clockwise for On. Counterclockwise for Off. Setting the volume Caution: The alarm and telephone ringer begin sounding at a low volume. The volume will then increase to the set maximum until the alarm is turned off or the telephone is answered.
  • Page 31 Selecting the alarm period Slide the alarm period switch to select between the alarm periods. There are three settings available: (from left to right) alarm period 1, alarm period 2, or alarm periods 1 + 2. 1-866-AMPLICOM (267-5426)
  • Page 32 LOCK FUNCTIONS Selecting the alarm mode Slide the alarm mode switch to set the type of alarm. There are MODE three settings available: (from left to right) vibration only, acoustic signal only or acoustic signal and vibration. Setting the fl ashing light ON OFF Slide the switch to set the light in the snooze button to fl ash during an alarm.
  • Page 33 Press the decrease value button to decrease the selected value in the display. Repeat alarm Press the repeat alarm button while the alarm is sounding to switch off the alarm and set the same alarm time for the following day. 1-866-AMPLICOM (267-5426)
  • Page 34 If you have problems with your device, please refer to the following information before calling for support. If you continue to have problems, please call the Service Center at 1-866-AMPLICOM (267-5426) for further assistance. Troubleshooting guide My clock does not work 1.
  • Page 35 • Never use cleaning agents or solvents. Warranty AMPLICOM equipment is produced and tested according to the latest production methods. The implementation of carefully chosen materials and highly developed technologies ensure trouble free functioning and a long service life. The terms of the warranty do not apply where the cause of the equipment malfunction is the fault of the telephone network operator or any interposed private branch extension system.
  • Page 36 AINTENANCE AND WARRANTY If your equipment shows signs of defect during the period of warranty, please return to the sales outlet in which you purchased the AMPLICOM equipment together with the purchase receipt. All rights to claims under the terms of warranty in accordance with this agreement must be asserted exclusively with regard to your sales outlet.
  • Page 37 32˚F to 104˚F (0˚C to 40˚C) Optimum storage temperature -4˚F to 140˚F (-20˚C to 60˚C) Dimensions L / W / H 4.5 x 4.3 x 1.4 in (115 x 110 x 35 mm) Weight 6.3 oz (178 g) 1-866-AMPLICOM (267-5426)
  • Page 38 Questions? ¿Dudas? Amplicom USA Service Center 3018 Ambrose Avenue Nashville, TN 37207 V/TTY: 1-866-AMPLICOM (267-5426) www.amplicomusa.com Distributed by: Amplicom USA LLC Made In China Distribuido por: Amplicom USA LLC Hecho en China...
