Able 2 SHO-ME 01.1815.A00 Instruction Sheet

General Information:
The LED Folding Directional Arrow alerts traffic in the direction they need to follow. The Arrow comes with accessory power
adaptor plug. The power adaptor plug has a lighted on/off power switch and a momentary switch to change the pattern.
To change the pattern, momentarily press the switch, each time the switch is pressed it will advance to the next pattern.
The LED Arrow has four flash patterns from which to choose: Left Arrow - Right Arrow - Center-Out - Wig-wag.
Product Specifications:
Optimum Operation Voltage:
Operating Current:
Recommended Fuse:
Installation Instructions

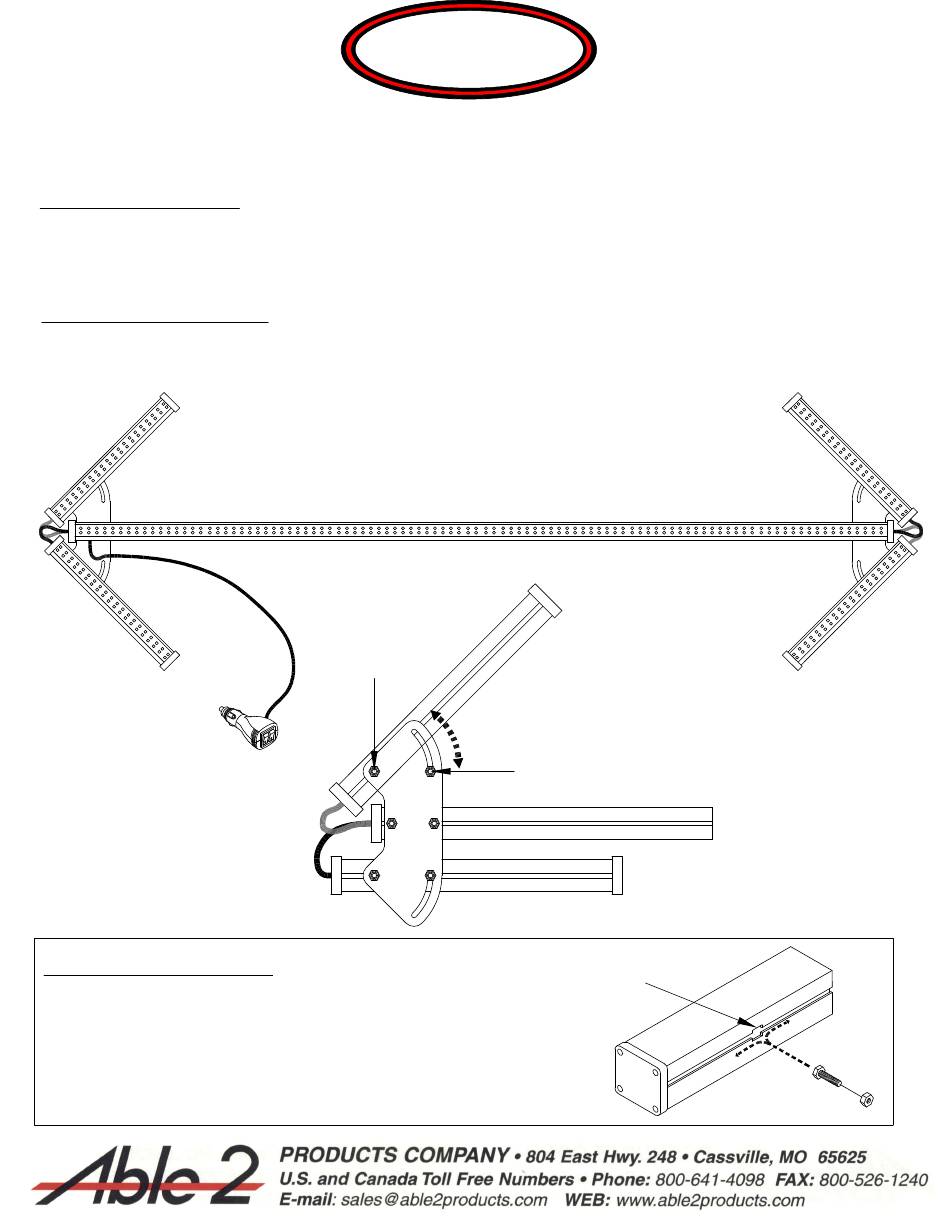

Slide the hex bolts provided into the t-slot as shown in the diagram. The
light can be mounted using the bottom or rear t-slots . Always mount with
the bottom t-slot down, This is to allow any moisture that enters the light
housing to drain properly.
SHO-ME
MODEL NO. 01.1815.A00
LED Folding Directional Arrow
+13.8 VDC
2 amp max
5 amp
Pivot Lock Nut
®
Losten the Pivot Lock Nut & Slide Adjust Lock Nut,
then pivot until fully open or fully closed then retighten
the Lock nuts. Repeat on all four corners.
Slide Adjust Lock Nut
Rear T-Slot shown
11-20
