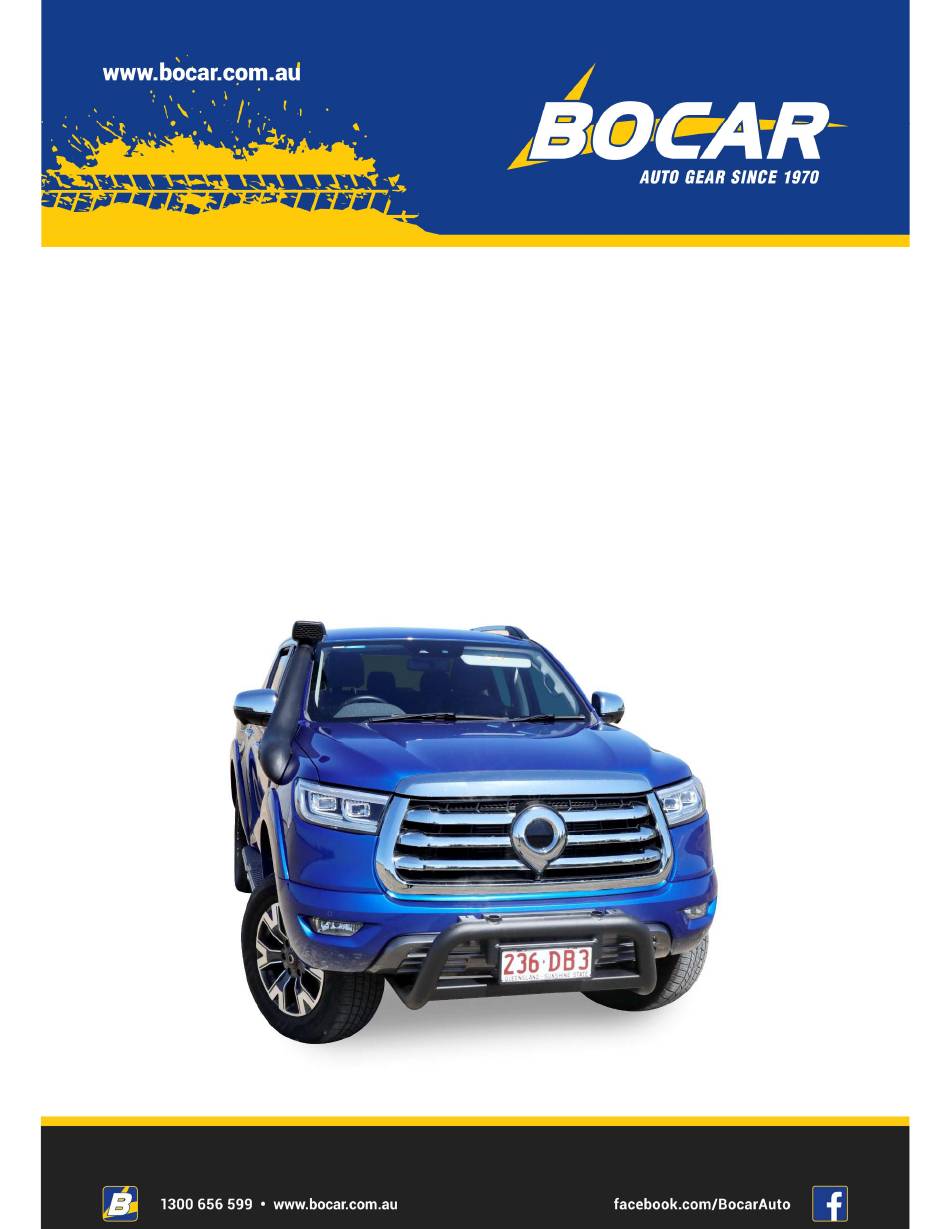

- Page 1 INSTALLATION GUIDE FOR MOUNT KIT (BOCN0112) SUITS: GWM Cannon (Refer to website for suitable model years and variants) Compatible Nudge Bar Models Bocar Ultimate Low Loop Nudge Bar (BOCN0300) Bocar Deluxe Low Loop Nudge Bar (BOCN0400)
-
Page 2: Important Notes
Important Notes: Read instructions completely before commencing fitment. Bocar and its affiliated companies are not responsible for any damage that may occur to you or your vehicle during the installation of these products. Electrical system damage may be possible due to incorrect wiring or method and is the ... -
Page 3: Mount Kit
M12 x 1.25 Nyloc Nut K0977 M12 x 4 x 2.5 Spring Washer Nudge Bar Mount RH BOCN0162R K0581 M12 x 1.25 Hex Nut Nudge Bar Mount LH BOCN0162L Compliance Label – GWM Cannon BOCAR NUDGE BAR MOUNT KIT 17/10/2023 Page 3 of 8... - Page 4 Surface must be clean before applying sticker. 5. Insert the weld-on stud plate with wire LHS SHOWN (BOCN0166) through the hole opening on the inner side of the chassis rail. BOCAR NUDGE BAR MOUNT KIT 17/10/2023 Page 4 of 8...
- Page 5 M8 x 1.25 x 40mm Hex Head Bolt (1), 5/16 x 1-1/4 x 16G Flat Washer (1), M8 X 3.0 X 2.0 ZP Spring Washer (1) to loosely secure the bracket. Repeat on the LHS BOCAR NUDGE BAR MOUNT KIT 17/10/2023 Page 5 of 8...
- Page 6 Repeat on the LHS 11. Position the nudge bar as close to the vehicle and as high as possible and ensure the bar is centred to the vehicle and leveled. BOCAR NUDGE BAR MOUNT KIT 17/10/2023 Page 6 of 8...
- Page 7 7, 8, 10 using recommended torque tension listed in page 2. 13. Check the condition of the bolt joints on a regular basis and tighten if necessary. BOCAR NUDGE BAR MOUNT KIT 17/10/2023 Page 7 of 8...
-
Page 8: Warranty
Nuts and Bolts At Bocar we do not get to experience your adventures or service your vehicle, so be sure to regularly check all nuts and bolts, especially after a large Off-Road trip or regular use on Civil, Mining and construction sites.
