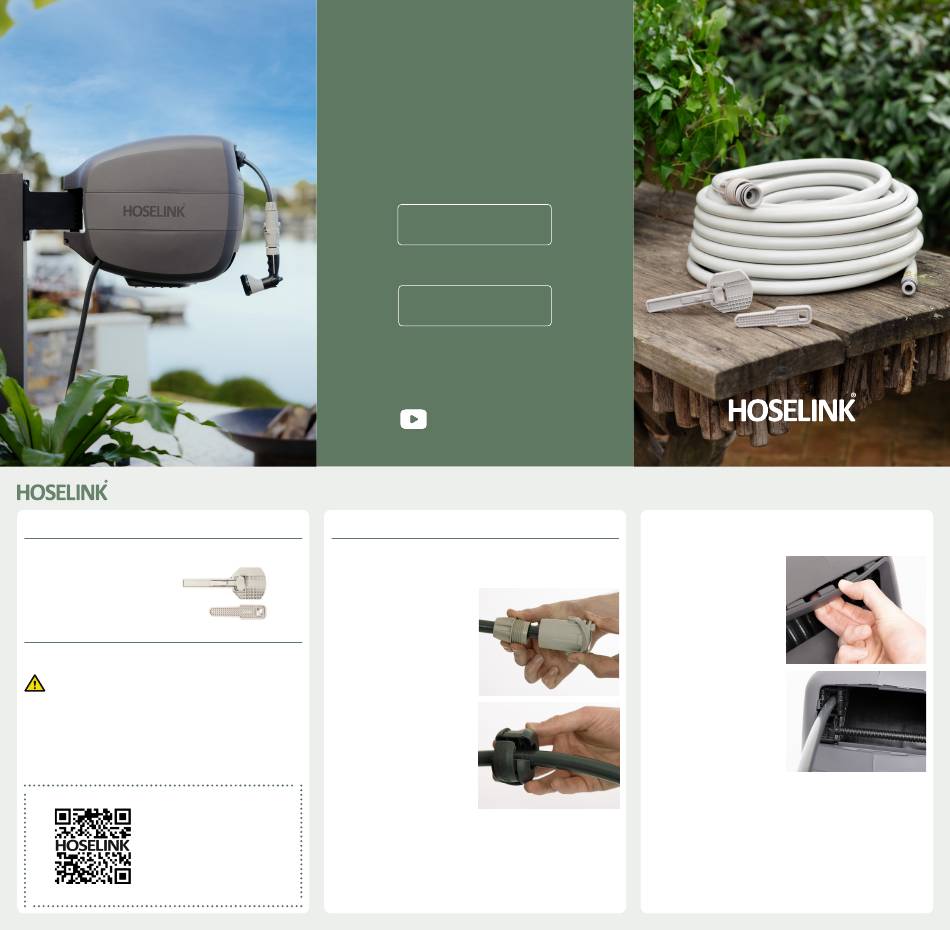

Hoselink Evolve Series User Manual

Kit Contents
1 x Replacement 20m
or 30m Evolve Hose
1 x Safety Key 1
1 x Safety Key 2
What you will need
1 x Pair of Pliers
WARNING: The two Safety Keys must be fully
inserted before you start working on the hose as they
stop the drum from retracting. The retracting drum can
cause severe bodily harm to fingers and hands.
To avoid injury, NEVER attempt to work on replacing
the hose without fully inserting both Safety Keys!
Video Demonstration
Scan the QR code
for more information.
MODEL: EA4020 / EA4030
Replacement Main Hose
for Hose Reel | Evolve Series
For more information visit
hoselink.com.au
or call
1300 900 617
Cultivating Connections
youtube.com/hoselink
To Replace the Hose
STEP 1 Remove the Flow Control and Stopper Ball
These will be re-used on the new hose.
1.1 Remove the flow
control by unscrewing
the nut and pulling off
the hose.
1.2 Remove the stopper
ball by opening the
lever.
User Manual
MODEL: EA4020 / EA4030
Replacement Main Hose
for Hose Reel | Evolve Series
STEP 2 Remove the front Fascia & fully
Pull Out the Hose
2.1 Remove the facia by
pulling down in the
centre.
2.2 Once the facia is
removed, pull out the
hose to its full length.
Continued over
