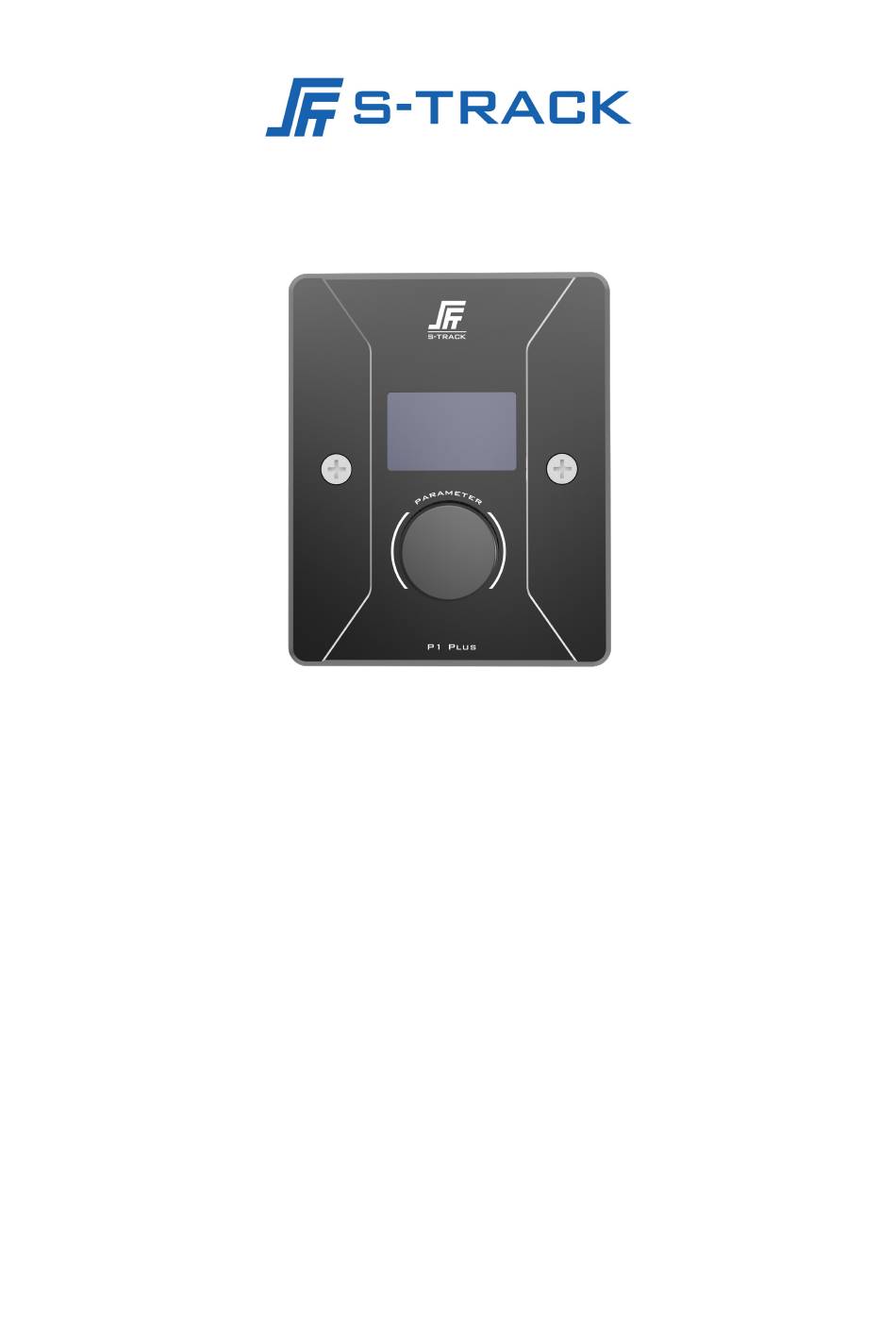

- Page 1 P1 PLUS Control Panel User Manual...
-
Page 2: Table Of Contents
P1 PLUS Control Panel TABLE OF CONTENTS Chapter 1 Product Introduction ......................2 1.1 Introduction ........................2 Chapter 2 Specification ........................2 Chapter 3 Interface Description ......................3 3.1 Interface knob description ....................3 Chapter 4 Instructions for Use ......................4 4.1 Main interface of the software .................. -
Page 3: Chapter 1 Product Introduction
P1 PLUS Control Panel Chapter 1 Product Introduction 1.1 Introduction The control panel can remotely control the processor, conveniently adjusting the processor volume or switching the application scene and other functions to meet the unique needs of specific applications, the user can be customized according to the actual use of the environment for programming, through the configuration will be able to achieve the purpose of the panel to control the processor. -
Page 4: Chapter 3 Interface Description

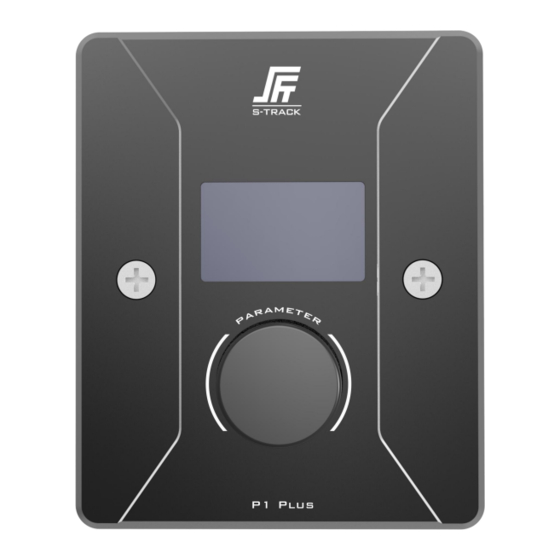

P1 PLUS Control Panel Chapter 3 Interface Description 3.1 Interface knob description Display: Display the version number, IP address and control interface, if not triggered for a long time, the display will automatically enter the sleep state; Control knob: Function selection and parameter control knob 1) Rotate left and right: Function selection and parameter adjustment;... -
Page 5: Chapter 4 Instructions For Use
P1 PLUS Control Panel Chapter 4 Instructions for Use 4.1 Main interface of the software Steps to enter the main panel configuration screen: Settings->Panel Configure(plus)->Panel setting interface... -
Page 6: Ip Modify
P1 PLUS Control Panel 4.2 IP Modify Panel: Search for online panel devices... - Page 7 P1 PLUS Control Panel ：Connected state ：Unconnected state Panel basic information: Display the name and IP address of the panel and the processor being controlled. IP Modify: Double-click the position in Number ③ to get the basic information of the panel.
-
Page 8: Home
P1 PLUS Control Panel 4.3 Home page information Home: Double-click the basic information of the panel to get the menu information of the panel Edit Button: Modify the menu information. Delete Button: Delete the menu. Save Button: Save the menu information and disconnect, up to 99 items can be saved. -
Page 9: Setting Information
P1 PLUS Control Panel 4.4 Setting information Setting: Add Mute, Gain, Scene, Mixer, Command configuration information。... -
Page 10: Mute
P1 PLUS Control Panel 4.4.1 Mute Users can select input or output parameters, display the corresponding menu name, and also customize the mute and unmute identifiers with different characters to achieve control of the processor mute state. -
Page 11: Gain
P1 PLUS Control Panel 4.4.2 Gain Users can select input or output parameters, display the corresponding menu name, and also set the maximum value, minimum value and step size of the processor gain (the maximum value is 12, the minimum value is -72, and the step size is ≥ 0.1) to achieve the control of the processor gain... -
Page 12: Scene
P1 PLUS Control Panel 4.4.3 Scene Users can customize the menu name and back button with different characters, and can also check the scenes that the processor can load to achieve control of the processor to switch scenes. -
Page 13: Mixer
P1 PLUS Control Panel 4.4.4 Mixer Users can customize the menu name and return button with different characters, and also select the processor output parameters as well as check the input parameters to control the processor input and output channels. -
Page 14: Command
P1 PLUS Control Panel 4.4.5 Command Users can customize the menu name, command type and return button with different characters, the correct central command code, IP address and port number, to achieve the control of the corresponding IP and port devices. -
Page 15: Upgrade
P1 PLUS Control Panel 4.5 Upgrade Panel upgrade steps: Select the device to be upgraded-->Upgrade-->Select the upgrade package-->The panel displays Upgrade in progress and then Load in progress, then the upgrade is successful. 4.6 Toolbar ：Save added panel configuration information locally. -
Page 16: Chapter 5 Packing List
P1 PLUS Control Panel ：Importing panel configuration information into the software. ：Download panel configuration information to the panel. Chapter 5 Packing List Name Quantities Complete machine 1PCS Wall screws 2PCS Pearl cotton 1PCS Outer carton 1PCS Instruction manual 1PCS Quick guide... -
Page 17: Warranty Regulations
Warranty Regulations The warranty period of this product is 1 year. In the warranty period of non-man-made damage caused by the product performance failure can enjoy three packages of service. Warranty card by the sales unit stamped after the effective. The alteration is invalid! The following conditions (including, but not limited to, this) are not covered by the three-package service: 1. - Page 18 SHENZHEN S TRACK SCIENCE TECHNOLOGY CO., LTD Web: www.s-track.com.cn Tel:+86 755 29983191 Mail:service@s-track.cn Add: 9F, 1B, Shangzhi Technology Park, Guangming District, Shenzhen City, Guangdong Province, China 518107...
