Summary of Contents for S-Track P5

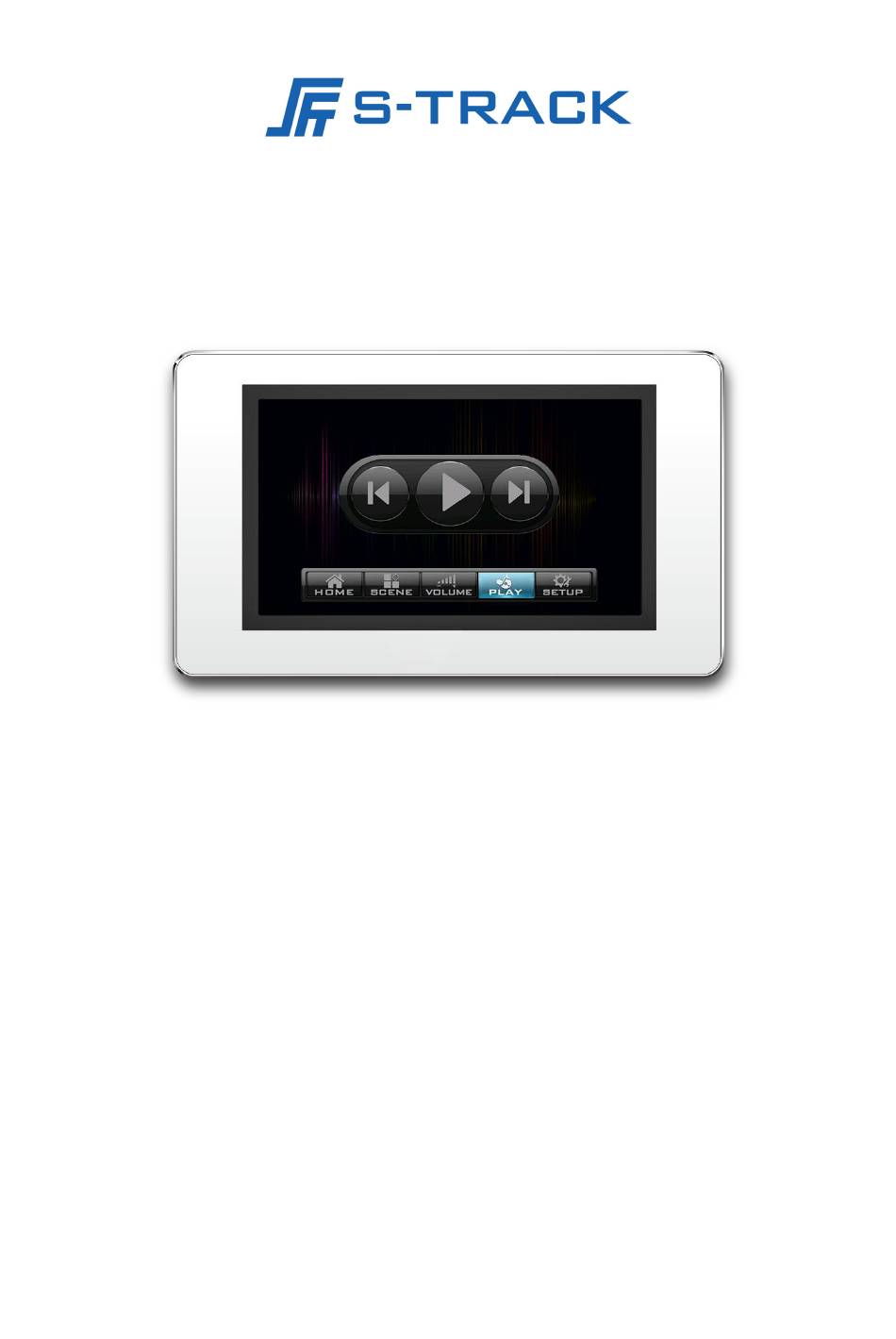

- Page 1 Control Panel User Manual...
- Page 2 Control Panel TABLE OF CONTENTS Chapter 1 Overview ..........................2 1.1 Overview ..........................2 1.2 Main characteristics ......................2 Chapter 2 Main Parameters ......................... 2 Chapter 3 Installation Guide ........................ 4 Chapter 4 Operation ..........................4...
-
Page 3: Main Parameters
Control Panel Chapter 1 Overview 1.1 Overview This control panel is composed of a 5-inch all-metal shell, capacitive touch screen, connects to control the audio processor through a local area network, can be embedded in the wall, supports scene control, volume control, playback control, richer customization settings; supports POE or 12V DC two power supply modes. - Page 4 Control Panel Power consumption (with 170mA@5V backlight on) Power Consumption (Off 71mA@5V Backlight) Input Voltage 5~15V Effective display size of screen 108mm*65mm (L*W) Product Size (L*W*H) 146*86*27mm Product Net Weight 130g Full-screen image update time 19ms Single color clear time 2.5ms Text display speed (16*16 dot 0.35ms...
-
Page 5: Chapter 3 Installation Guide
Control Panel Chapter 3 Installation Guide According to the size of the junction box, make holes in the wall and lay out the lines, embed the junction box in the wall and fix it; Connect the network control cable, if the switch does not support POE, you need to use 12V DC power supply, the device will automatically turn on after the power is connected;... - Page 6 Control Panel "Play" is used to play MP3 or WAV format audio files from the processor USB storage device; "Settings" is used to set the network connection, scene name, adjustable volume channel and other functions. 2. Connect to the processor; Please click the Settings button to enter the Network Settings interface, the default password is: 123456, configure the local network and processor IP address, and make sure that the control panel and the processor network can be reached, no IP address conflict.
-
Page 7: Warranty Regulations
Warranty Regulations The warranty period of this product is 1 year. In the warranty period of non-man-made damage caused by the product performance failure can enjoy three packages of service. Warranty card by the sales unit stamped after the effective. The alteration is invalid! The following conditions (including, but not limited to, this) are not covered by the three-package service: 1. - Page 8 SHENZHEN S TRACK SCIENCE TECHNOLOGY CO., LTD Web: www.s-track.com.cn Tel:+86 755 29983191 Mail:service@s-track.cn Add: 9F, 1B, Shangzhi Technology Park, Guangming District, Shenzhen City, Guangdong Province, China 518107...
