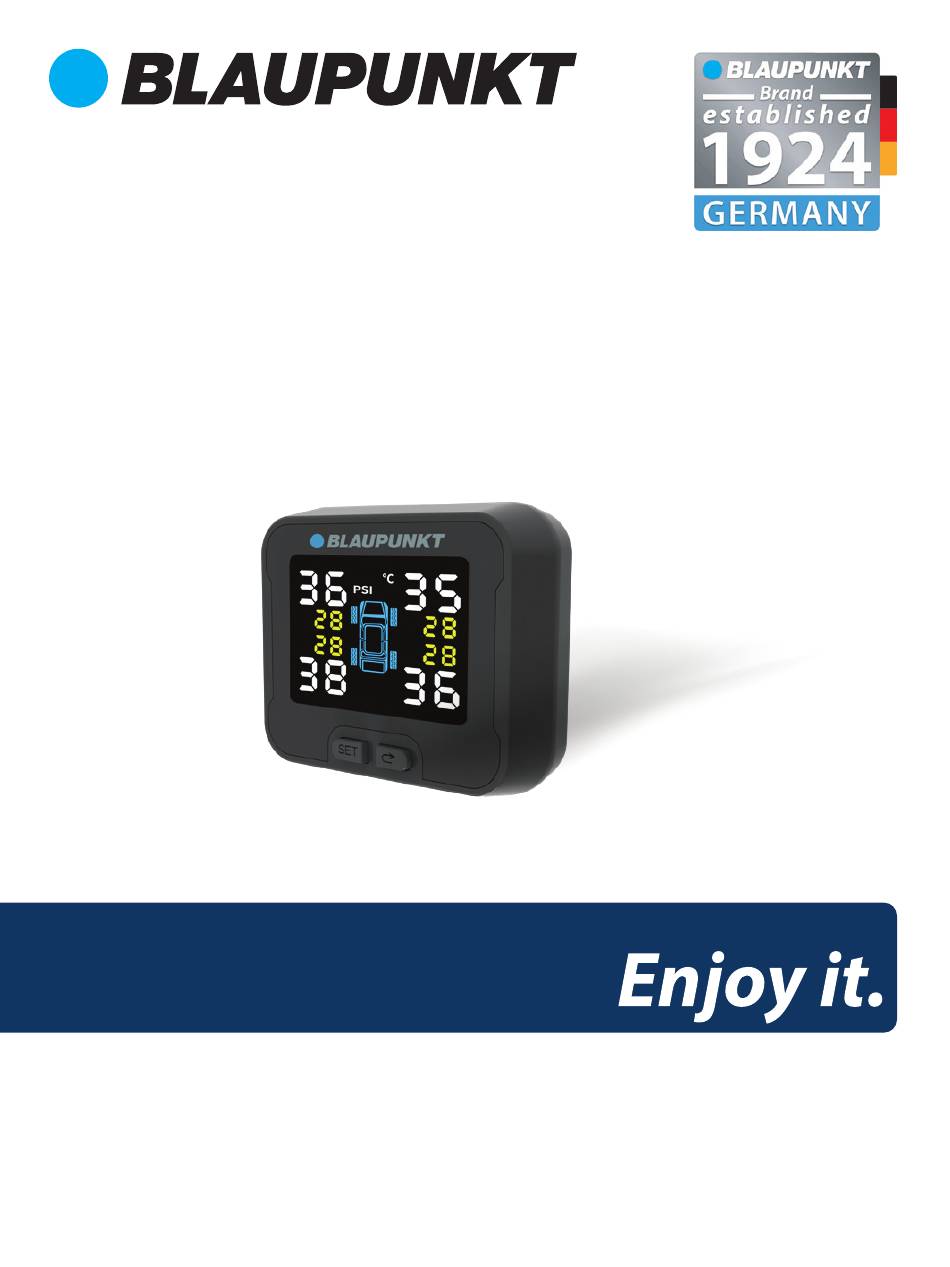

- Page 1 TIRE PRESSURE MONITORING SYSTEM TPMS 2.2 Operating and Installation Instructions...
- Page 2 TPMS. Prior to operating the appliance, Disclaimer carefully read through this manual and store • Blaupunkt is not liable for any loss or damage it in a readily accessible location. Furthermore, caused resulting from...
-
Page 3: Structure & Functions
STRUCTURE & FUNCTIONS Display External Sensor Valve Sensor Receiver External Sensor Valve Sensor 1. Pressure Alarn Icon 1. Sensor Cover 1. Dust Cap 2. Tire Temperature Value 2. Battery Holder 2. Aluminium Alloy Nut 3. Pressure Unit 3. Battery 3. Aluminium Alloy Valve 4. -
Page 4: Specifications
SPECIFICATIONS Sensor Operating frequency 433.92 +/- 0.03MHz Battery voltage DC2.1V ~ DC 3.3V Operating temperature -20°C ~ 85°C (External Sensor) -40°C ~ 125°C (Valve Sensor) Pressure range 0~8 Bar / 0~116 PSI Display Operating current <40mA Operating frequency 433.92 +/- 0.05MHz Operating voltage 12V/5V Operating temperature... - Page 5 EXTERNAL SENSOR INSTALLATION 1. Remove the valve cap. 4. Tighten up the nut to the sensor by using the spanner. 2. Screw in the nut. 5. Spray soap water on the nozzle to check for leakage problem. 3. Screw on the sensor. 6.
- Page 6 EXTERNAL SENSOR BATTERY REPLACEMENT 1. Unscrew the nut. 4. Replace new battery. 2. Unscrew the sensor. 5. Refer to “Sensor Installation” steps. 3. Unscrew the sensor cover by using spanner.
- Page 7 VALVE SENSOR INSTALLATION 1. Remove the original air valve from the 4. Rebalance the wheel to ensure radial wheel barrel. uniformity. 2. Install & adjust the valve sensor onto the wheel barrel. Screw & tighten the nut & valve. 5. Reinstall the balanced wheel onto the vehicle.
-
Page 8: Display Installation
TROUBLESHOOTING If any of the following problems occur, please refer to the Troubleshooting section for potential solutions. If the problem persists, seek assistance from an authorized Blaupunkt dealer. Problems Solutions Air leakage after sensor installation... - Page 9 DIFFERENT SCENARIO Low Pressure • Emits beeping alarm sound 1. Normal • Displays real time tire pressure & 4. High Pressure temperature of 4 tires. • Emits beeping alarm sound Sensor Failure Air Leakage • Emits beeping alarm sound • Emits beeping alarm sound...
- Page 10 DIFFERENT SCENARIO OPERATION INSTRUCTION High Temperature 1. First Start-up Interface • Emits beeping alarm sound a) Booting-up Process interface 7. Sensor Low Voltage • Emits beeping alarm sound b) Standby Interface • First use • After rst used...
- Page 11 OPERATION INSTRUCTION 2. Sensor Pairing a) Press & hold button “SET” to enter Menu interface. e) When the new Sensor ID left front wheel is detected, it is stored automatical- b) After hearing beeping sound, P1 will ly. Then, it will continue to next order. appear.
- Page 12 OPERATION INSTRUCTION 3. Tire Position Exchange Setting e) Press and hold button “SET” to con rm (It is required only when the tires has front wheel ID adjustment and tire switched location) replacement. Once the tire replacement is successful, the system will beeps twice. a) Press &...
- Page 13 OPERATION INSTRUCTION c) Press & hold button “SET” , then Short d) Select the preferred interface by press button “SET” again to switch press and hold button “SET ”. The digit wil between thresold value interface (High ash then press the button “ SET” again Pressure Value, Low Pressure Value &...
-
Page 14: Wiring Diagram
WIRING DIAGRAM Method 1 : USB Charger Car USB Port USB Output Cigarette Charger IN 12V OUT 12V USB Output Fuse DC12-USB5V Ground Method 2 : Hardwire Kit (Optional) - Page 16 TPMS 2.2 E 1 311 24 015 45 01 TPMS 2.2 V Blaupunkt Car Entertainment - Asia Paci c Competence Centre 1 311 24 016 45 01...
