Summary of Contents for AVMATRIX VP51

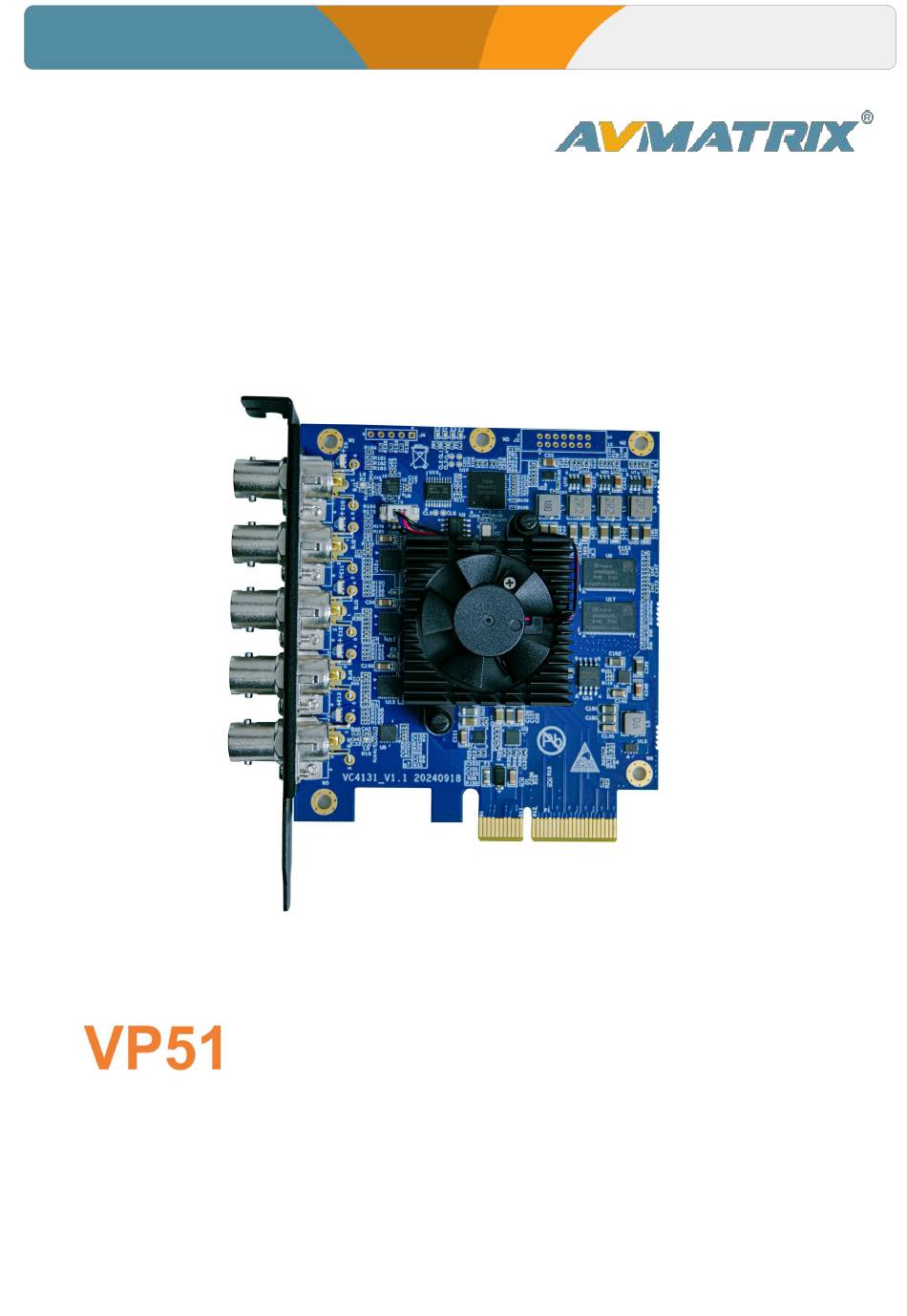

- Page 1 VP51 PCIE Capture & Playback Card 5-CH SDI PCIE Capture&Playback Card...
-
Page 2: Table Of Contents
VP51 PCIE Capture & Playback Card CONTENT 1. Introduction ................................1 1.1 Overview ................................1 1.2. Main Features ...............................1 2. Interfaces .................................. 2 3. Specification ................................2 4. Installation ................................3 4.1 Hardware Installation ............................3 4.2 Driver Installation .............................. 4 5. Control Software ..............................4 6. -
Page 3: Introduction
PCIE Capture & Playback Card 1. Introduction 1.1 Overview VP51 is a capture and playback card with superior image quality and flexibility. It features 1-CH SDI input, 1-CH SDI output and 3-CH SDI I/O interfaces. It supports 1080p60 resolution output for HD video production and provides ultra-low latency for live streaming and recording. -
Page 4: Interfaces
VP51 PCIE Capture & Playback Card 2. Interfaces SDI Input SDI Input & Output SDI Input & Output SDI Input & Output SDI output PCIE-X4 Interface 3. Specification Slot Interface PClex4 (Gen3) Interface 1x3G-SDI input Video Output 1x3G-SDI output Interface... -
Page 5: Installation
VP51 PCIE Capture & Playback Card SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SDI Standard SMPTE 425M, ITU-R BT.656 and ITU-R BT.601 Supports XBOX, PS4, SWITCH, Video Players, TV Boxes, Equipment Support and Media Boxes Windows 7/8/10/11, 64-bit, Linux... -
Page 6: Driver Installation
Step 3: After the installation is complete, restart computer. Otherwise the computer may crash. In particular, if any of Blackmagic Design's PCIe capture or output card drivers are already installed on computer, pls uninstall it before installing the AVMATRIX PCIe card driver. Otherwise, the AVMATRIX PCIe card will not work properly. - Page 7 VP51 PCIE Capture & Playback Card 1. Preview screen The preview screen shows only the interface with the source connected. And those without access to signal sources will not display. 2. Setting parameters (1) Set the video format and video bit depth according to the user's needs. Users need to stop playing before changing the video format, decibel value, audio period and other parameters.
-
Page 8: Vmix Operating Instructions
VP51 PCIE Capture & Playback Card Note: The driver and the configure I/O program must not be opened at the same time. 6.Vmix Operating Instructions 6.1 Vimx Input Acquisition Settings Steps: Click "Add Input" - "Camera", select the input source to be captured in the camera option, configure the parameters according to the requirements, and click "OK"... - Page 9 VP51 PCIE Capture & Playback Card Step 2: Select "V51" as the video output device in the external output settings. Step 3: When the setting is finished, click "External", the icon will turn red, and the output will start.
- Page 10 VP51 PCIE Capture & Playback Card Note: 1. If users need to use Vmix, OBS or other software to set up, a patch programme is needed to installed. Patch Installation: Double click to open the patch programme, follow the instruction to install the patch programme, click "OK"...
