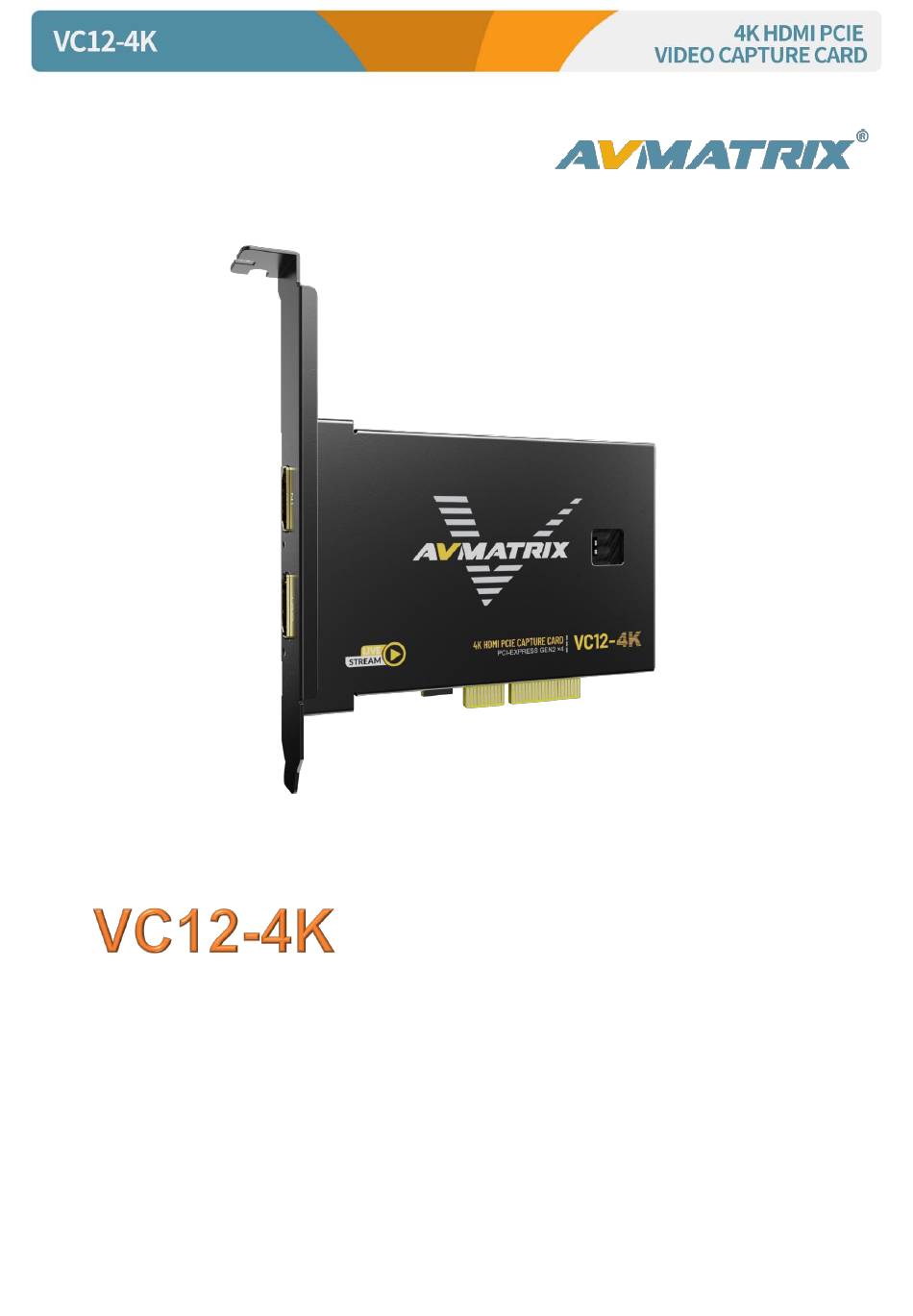

- Page 1 4K HDMI PCIE VIDEO CAPTURE CARD...
- Page 2 CONTENT 1.Brief Introduction ..............................1 1.1 Overview ..............................1 1.2.Main Features ............................. 1 2.Interfaces ................................2 3.Specification ................................2 4.Installation ................................3 4.1 Hardware Installation ............................. 4 4.2 Driver Installation ............................4 5.DIP Funtions ................................5 6.Operating Instructions ............................6...
- Page 3 1.Brief Introduction 1.1 Overview VC12-4K is a 4K HDMI PCIE video capture card, it supports 4K HDMI inputs and capture,and compatible with console or PC games and digital cameras. HD video capture up to 4K60 with bit rates up to 800Mbps, transfer bandwidth up to 2.5GB/S, VC12-4K can meet the needs of high-bandwidth, high-performance...
- Page 4 2.Interfaces HDMI IN Dial position HDMI LOOP OUT PCIE-X4 Interface 3.Specification Host Interface PCIE2.0×4, 2.5GB/s transfer bandwidth Video Interfaces 1×HDMI2.0 input, 1×HDMI2.0 loopout CONNECTIONS HDMI Input Format Up to 4K60hz, 1440p144hz, 1080p240hz Capture Format 4096×2160, 3840×2160, 3440×1440 , 2560×2048, 2560×1920, 2560×1440, 2560×1080, 1920×1200, 1920×1080, 1600×1200, 1440×900, 1280×1024, 1280×800, 1280×720, 1024×768, 800×600, 720×576, 720×480 60fps...
- Page 5 4096×2160, 3840×2160, 2560×1440, 1920×1080, 1280×720, 800×600, 720×576, 720×480 30fps 4096×2160 , 3840×2160, 2560×1440, 1920×1080, 1280×720 25fps 2560x1440, 1920x1080, 1280x720 144fps 2560x1440, 1920x1080, 1280x720 120fps 1920x1080, 1280x720 240fps 1920x1080, 1280x720 59.49fps Capture Color Space YUY2, uncompressed Audio Capture 1×HDMI embedded audio capture Audio Codec 16 bit PCM, 48kHz, 1536kbps Other Features...
- Page 6 4.2 Driver Installation Step1.Download the driver from the AVMATRIX website at www.avmatrix.com and opening the driver. Step 2. When the driver is opened a notification of "Find Video Capture Card Driver: 1" will pop up, which indicates that the PCIE capture card has been recognized, then click "Install". Finally, Click "OK" to...
- Page 7 Note: Supported Windows 7 and above, Linux 18.04 and above Operating Systems. 5.DIP Funtions Multiple PCIE capture cards can be installed on one computer to work simultaneously to realize multiple live streaming and capture. When working with multiple PCIE capture cards at the same time, you need to adjust the dip switches on the PCIE card.
- Page 8 4.Fourth card When( SW3 ) is set to upward, and ( SW1, SW2, SW4 ) is set to downward, it sets the PCIE capture card to fourth card. 6.Operating Instructions Step1. Open OBS Studio , click ”+” and select ”Video Capture Device”. Rename the name of the signal source and click OK.
- Page 9 Step3. Click on the audio setting icon to setting audio, as shown in the picture. Then enter the properties, and select the device. Step4. Enter “Advanced Audio properties” can change the setting about the volume, balance, audio monitoring, and Tracks etc.
