Pyramid PB717X User Manual

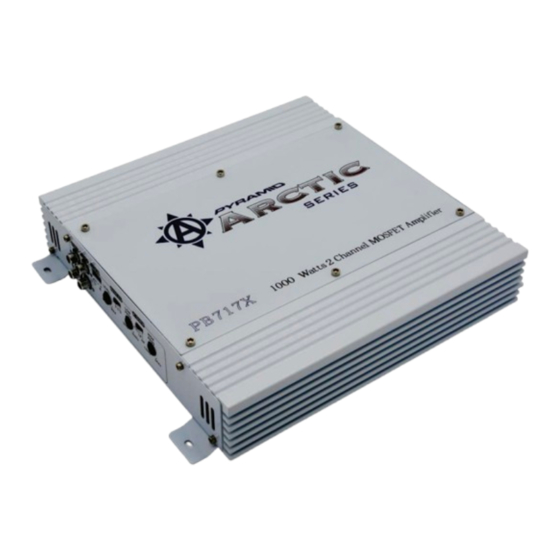

1000 watt 2 channel bridgeable mosfet amplifier
Hide thumbs Also See for PB717X:

Advertisement

Quick Links

Download this manual
Visit Our Website
SCAN ME
PyleUSA.com
PB717X
1000 Watt 2 Channel Bridgeable
MOSFET Amplifier
USER GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the PB717X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pyramid PB717X

Summary of Contents for Pyramid PB717X

  • Page 1 Visit Our Website SCAN ME PyleUSA.com PB717X 1000 Watt 2 Channel Bridgeable MOSFET Amplifier USER GUIDE...

  • Page 2: California Prop 65 Warning

    READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT. RETAIN THIS OWNER’S MANUAL FOR FUTURE REFERENCE. FEATURES: • Two Channel Bridgeable Ampli cation • Tri-way Con guration: 1/ 2 Channels • 2 x 50 Watts Total Output @ 4 Ohms • 1000 Watts Total System Output @ 4 Ohms •...

  • Page 3: Fcc Information

    FCC INFORMATION WARNING: Changes or modi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 4: Mounting And Installation

    Fuse Information Pyramid Arctic Series ampli ers have built-in fuse systems to protect both the amp and your vehicle. Only replace with a fuse of the same type and rating. Using a di erent fuse can cause damage or re.

  • Page 5: Controls And Indicators

    CONTROLS & INDICATORS Low-Level Inputs High Pass Frequency Control Output level Crossover Mode Selector High-Level Inputs Low Pass Frequency Control Input Level Control Bass Boost Level Power LED Power Fuse Protection LED Speaker Connections Power terminals Crossover Mode Selector: • “FULL”...

  • Page 6: Specifications

    Low-Level Inputs: Gold-plated RCA jacks for high-impedance stereo output. High-Level Inputs: For stereos without RCA output jacks (connect speaker output leads here). Power LED: Illuminates when power is applied. Protection LED: Illuminates when protection mode is activated. Power Fuse: The fuse protects the ampli er and your car’s electrical system from short circuit conditions.
  • Page 7 SPEAKER & INPUT CONNECTIONS Stereo Output Mode Bridged Mono Output Mode MINIMUM SPEAKER IMPEDANCE: 40 OHMS Mono Input Connections Using low-level inputs to a second ampli er www.PyleUSA.com...
  • Page 8 Using high-level inputs to a second ampli er Mono Input Connections Using low-level inputs IMPORTANT: Do not use both high-level and low-level (RCA) inputs at the same time. Using high-level inputs www.PyleUSA.com...

  • Page 9: Cleaning, Maintenance And Storage

    Thank you for choosing PyleUSA. By registering your product, you ensure that you receive the full bene ts of our exclusive warranty and personalized customer support. Model Number: Complete the form to access expert support and to keep your PB717X PyleUSA purchase in perfect condition. PyleUSA.com/pages/register www.PyleUSA.com...
  • Page 10 Questions or Comments? We are here to help! Phone: 1.718.535.1800 PyleUSA.com/ContactUs...
