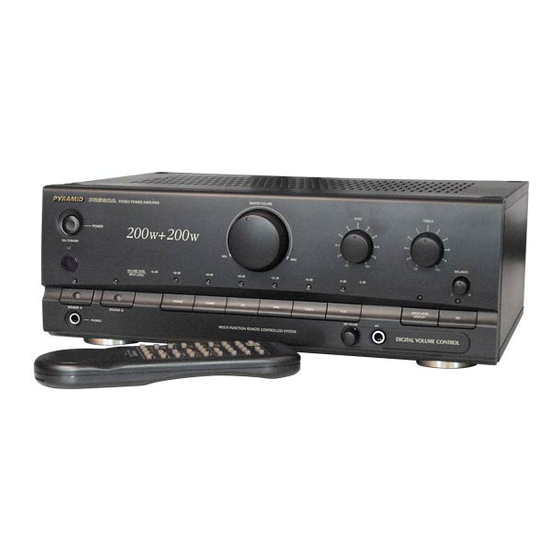

- Page 1 PYRAMID STEREO HIGH-FIDELITY AMPLIFIER PA-3035 POWER ON / STANDBY VOLUME LEVEL MUTE VOLUME LEVEL DISPLAY PHONES PR-530A I N T E G R A T E D S T E R E O A M P L I F I E R MASTER VOLUME Down -58 dB...
- Page 2 PRECAUTIONS Thank you for purchasing this HI-FI product. Taking time to read these operating instructions carefully before use will acquaint you fully with all its features and help ensure optimum performance. In order to simplify the explanation illustrations may sometimes differ from the originals. RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,...
- Page 3 CONNECTIONS Connection precautions When connecting, either disconnect the power plug from the power outlet or turn off the unit’s power using the POWER switch. Check the left and right channels and connect properly (Left to L and Right to R). Insert the plugs securely.
-
Page 4: Speaker Connection
CONNECTIONS Speaker connection Connect the speaker systems to the SPEAKERS terminals on the rear panel of the unit with the speaker cords. When viewed from the front (the listening position), the speaker mounted on the left should be connected to the L terminals, and the speaker mounted on the right should be connected to the R terminals. - Page 5 PANEL INFORMATION ST EREO HIG H-FIDELITY AM PLIFIE R PA-3 035 POWER ON / STANDBY VOLUME LEVEL MUTE VOLUME LEVEL DISPLAY PHONES 1. POWER SWITCH Power is supplied to the amplifier when pressing this switch once and the power is switched off if pressing once more.
-
Page 6: Operating Procedures
OPERATING PROCEDURES Before starting operation Check that the controls have been set to the following positions before commencing operation Rotate the VOLUME control counterclockwise as far as it will go and set it at the “0” minimum volume position. Set the BALANCE control to its center position. Set the BASS and TREBLE tone controls to the “0”... -
Page 7: Operation
OPERATION 1. POWER Power is supplied to the amplifier when pressing this switch once and the power is switched off if pressing once more. 2. PRESET EQ Press this switch to preset one of the following kinds of music: POP (green color), ROCK (red color), CLASSIC (orange color) and FLAT (no color). - Page 8 OPERATION 10.CD Press this key when you wish to listen to the compact disc player connected to the CD terminals. 11. N/M You can press this key to select the NORMAL playback sequence or MEMORY playback sequence. (P.S: This key only works with our equalizer of our Hi-Fi system.) 12.
-
Page 9: Specifications
SPECIFICATIONS Power output………………Rated 50W + 50W ( 8 ohms, T.H.D. 10% 1 khz) Reference 30W + 30 W (8 ohms, T.H.D.1% 1 khz) Load impedance……………8 ohms Total harmonic distortion…less than 0.05% at 1/2 rated MS power output. Frequency response (at 1 watt)…20 to 20 khz, + 1dB, RIAA curve deviation………+ 0.5dB, -0.5 dB (PHONO 20 Hz to 20 KHz) Input sensitivity and impedance (at 1 KHz for rated...
