Easydive Leo3 Wi Quick Start Manual

Main Mode
1. Autofocus (exposure reading) and shooting mode change. To change shooting
mode, press and hold button 1 until the Red Led turns on (15 sec.).
2. In Video Mode, Activate or Stop Video Recording. In Photo Mode:
Mode 1: When you press the button, you have autofocus, when you release
the button you will have the shot (Default Setting).
Mode 2: When you press the button, you have first autofocus and then shooting.
(if the lens is already in focus, direct shooting will occur).
3. Video Mode activation.To return to Photo mode, press the button 3 again.
Buttons 4,5,6,7 change functions depending in which mode is setted the
camera.
Manual Mode:
4. EV -
4. Aperture -
5. EV +
5. Aperture +
6. Shutter Speed -
6. Shutter Speed -
7. Shutter Speed +
7. Shutter Speed +
8. ISO - Press the Buttons 4,5,6,7,8,9 once to change by one step. Keep
9. ISO + pressed to quickly change the chosen parameter.
10. Switch button, by pressing it you change the functions of the each button.
When in second mode, a blue warning LED lights up.
11. On/Off internal electronic board. To switch on, press until the red electronics LED
is activated. To switch off, press and hold for 5 seconds and release the button. The
camera will go into Auto Power Off after the time set in the camera menu. To activate
the Camera, simply turn on the electronics by pushing this button again, and when
the red LED flashes, press button 2 (Shutter Release).
Easydive - Via dell'Industria 13 int 6, 48015 Cervia (RA) - Italy
Aperture Priority (AV):
Shutter Priority (TV):
4. Aperture -
5. Aperture +
6. EV -
7. EV +
| EOS R7 |

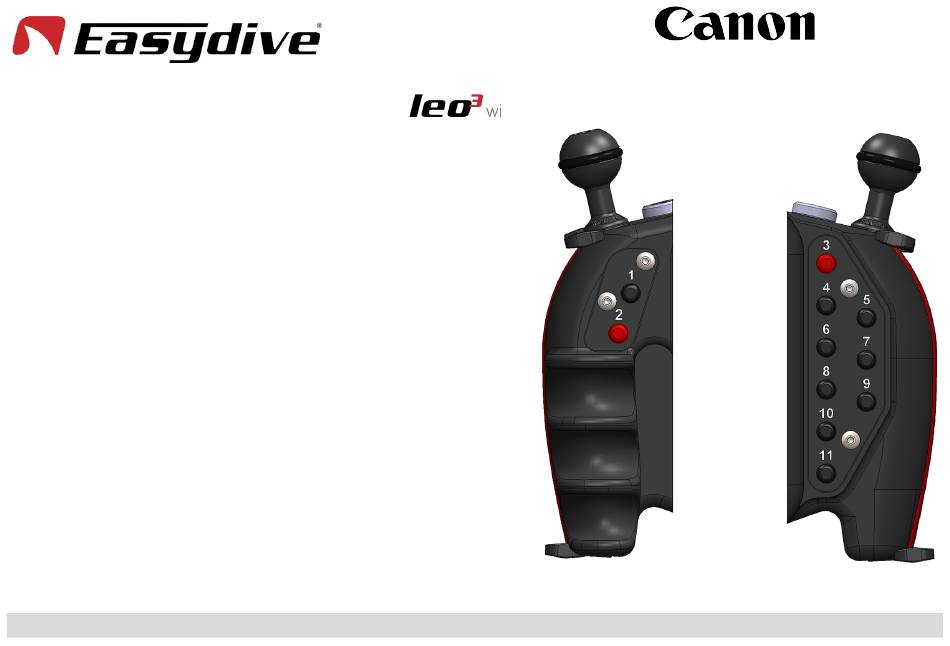

Button Panel Leo3 Wi
Front
info@easydive.it - +39 0544 962923 | +39 338 9994219
Back
