KeyPad Fibra user manual

Soon to be: Superior KeyPad Fibra

Updated December 19, 2024

Table of Contents

Need help?

Do you have a question about the KeyPad Fibra and is the answer not in the manual?

Questions and answers

Summary of Contents for AJAX Systems KeyPad Fibra

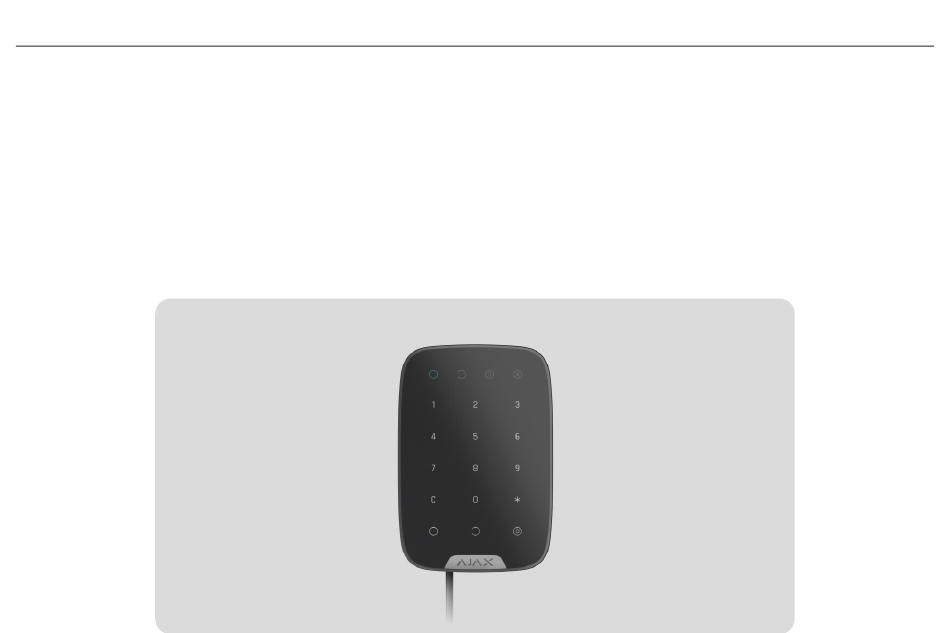

Page 1 Language: Partner Portal KeyPad Fibra user manual Soon to be: Superior KeyPad Fibra Updated December 19, 2024...
Page 2: Functional Elements
Integration with other security systems is not provided either. KeyPad Fibra works as part of the Ajax system, exchanging data with the hub using the secure Fibra wired protocol. The wired connection range is up to 2,000 meters when using a U/UTP cat.5 twisted pair.
Page 3 1. Armed LED indicator. 2. Disarmed LED indicator. 3. Night Mode LED indicator. 4. Malfunction LED indicator. 5. Numeric touch button box. 6. Reset button. 7. Function button. 8. Arm button.
Page 4: Operating Principle
9. Disarm button. Night Mode enabling button. 11. SmartBracket mounting panel. To remove the panel, slide it down. 12. Perforated part of the mounting panel. Necessary for tamper triggering in case of any attempt to detach the keypad from the surface. Do not break it off. 13.
Page 5 00:00 00:02 KeyPad Fibra is a touch keypad to control the Ajax system. It controls the security modes of the entire object or individual groups and also allows you to enable or disable the Night Mode You can control the security modes with KeyPad Fibra using general or personal codes.
Page 6: Access Codes
As the keypad goes into power saving mode, it resets the commands entered. Access codes KeyPad Fibra supports from 4 to 6 digit codes. Entering the code should be conﬁrmed by pressing one of the buttons: (Arm), (Disarm) and (Night Mode).
Page 7: Duress Code
Ajax apps with a title associated with this code. The number of codes supported depends on the hub model. KeyPad Fibra also supports arming without entering a code, if the Arming without Code function is enabled in the keypad settings .
Page 8: Function Button
If the security system is disarmed with a duress code erroneously, contact the security company monitoring station. The keypad supports both common and personal duress codes. The common duress code is set in the keypad settings. The personal duress code is set by the user individually in the hub settings.
Page 9 KeyPad Fibra keypad has the Function button. The button can work in one of three modes: Alarm — the panic button mode. After pressing, the system sends an alarm to the security company monitoring station and users and activates the sirens connected to the system.
Page 10 The option works only if the Interconnected Fire Detectors Alarm option is enabled in hub settings. With the OS Malevich 2.12 update, users can mute ﬁre detector alarms in their groups and at the same time not affect the operation of detectors in those groups to which they do not have access.
Page 11 KeyPad Fibra participates in arming in two stages. This process is similar to arming with a personal or common code on a keypad. The process should be completed by re-arming with SpaceControl or restoring the terminating detector (for example, closing the door with DoorProtect Fibra installed).
Page 12 2. The panic button is pressed (if the Function button works in the panic button mode). 3. The keypad is locked due to an attempt to guess a code. 4. Tamper alarm/recovery. 5. Loss/recovery of connection between KeyPad Fibra and the hub. 6. Activation/deactivation of KeyPad Fibra.
Page 13: Selecting The Installation Site
When choosing where to place KeyPad Fibra, consider the parameters that affect the operation of the device: Fibra Signal Strength. Cable length for connecting KeyPad Fibra. KeyPad Fibra is mounted on a ﬂat vertical surface with the bundled screws. The keypad is intended for indoor installation only. For convenience, we recommend...
Page 14 The security system should be designed and installed by professionals. The list of authorized Ajax partners is available here Do not install KeyPad Fibra Outdoors. This could damage the keypad. Inside premises with temperature and humidity outside the permissible limits.
Page 15 indicates the signal strength: Three bars — excellent signal strength. Two bars — good signal strength. One bar — low signal strength, stable operation is not guaranteed. Crossed out icon — no signal, stable operation is not guaranteed. The following factors affect the signal strength: The number of detectors connected to one Fibra line.
Page 16 Topologies Currently, Ajax systems support two topologies: Beam (Radial wiring) and Ring. Beam connection method (Radial wiring) occupies one Fibra line of the hub. Only the segment that remains physically connected to the hub will function in the event of a line break. All devices connected after the breakpoint will lose connection with the hub.
Page 17 Beam (Radial wiring) Ring occupies one Fibra line of the hub occupies two Fibra lines of the hub up to 8 beams with the same hub up to 4 rings with the same hub up to 2,000 m of wired communication for the up to 500 m of wired communication for the same line same ring...
Page 18 Different types of devices can be connected to the same Fibra line. For example, you can connect opening detectors, motion detectors with photo veriﬁcation support, sirens, and keypads to the same line. The devices are connected to the Fibra line one by one, as shown on the ﬁgure. Line branching is not supported.
Page 19 Cable length and type The maximum range of a wired connection using the Beam (Radial) topology is 2,000 meters, and using the Ring topology — 500 meters. Recommended cable types: U/UTP cat.5 4 × 2 × 0.51, copper conductor. Signal cable 4 × 0.22, copper conductor. If you use a different type of cable, the communication range for wired connections may vary.
Page 20: Additional Information
To make sure that the project is calculated correctly and that such a system will work in real practice, we have developed a communication range calculator of Fibra lines . The calculator helps to check the quality of communication and cable length for wired Fibra devices with the selected conﬁguration at the system design stage.
Page 21: Preparing For Installation
Preparing for installation Cable arrangement When preparing to route cables, check the electrical and ﬁre safety regulations in your region. Strictly follow these standards and regulations. It is safest to route cables inside walls, ﬂoors, and ceilings: this way they will be invisible and unavailable for intruders.
Page 22: Cable Routing
Try to avoid any deviations from the security system project design. Violation of the basic installation rules and the recommendations of this manual lead to incorrect operation, as well as loss of connection with the KeyPad Fibra. Check the cables for bends and physical damage before installation. Replace the damaged cables.
Page 23: Installation And Connection
Recommended cable lug sizes: 0.75 to 1 mm². Installation and connection Before installing KeyPad Fibra, make sure that you have selected the optimal location and that it meets the requirements of this manual. Cables should be hidden from prying eyes and located in places inaccessible to intruders to reduce the chance of sabotage.
Page 24 1. Remove the SmartBracket mounting plate from the keypad. To do this, lightly press the panel and slide it down. 2. Remove the KeyPad Fibra board from the holders on the mounting panel, pulling them to the sides and pulling the board towards you.
Page 25 To output cables from the bottom of the To output cables from the back of the keypad. keypad. 4. Disconnect the external power and the hub backup battery.
Page 26 1 — external power supply 2 — backup battery 5. Run the cable into the hub enclosure. Connect the wires to the hub line.
Page 27 +24V — power supply terminal of 24 V⎓. А, B — signal terminals. GND — ground. 6. Run the cable from the hub into the mounting panel of the keypad through the holes made. If the cable is routed from the bottom of the keypad, pass it through the special channels on the mounting panel.
Page 28 9. Install the KeyPad Fibra board on special mounting panel holders. 10. Connect the wires to the terminals according to the scheme below. Follow the polarity and connection order of the wires.
Page 29 +24V — power supply terminal of 24 V⎓. А, B — signal terminals. GND — ground. 11. If the keypad is the last in the line, install a terminating resistor in case of Beam (Radial) connection by connecting it to the signal terminals of the device. For Ring connection terminating resistor is not needed.
Page 30: Adding To The System
13. Reattach the keypad to the SmartBracket mounting panel. Fix the keypad with the bundled screw at the bottom of the enclosure. Add device to the system 15. Run a Fibra Signal Strength Test . The recommended signal strength is two or three bars.
Page 31 Before adding a device 1. Install an Ajax PRO app 2. Log in to a PRO account or create a new one. 3. Select a space or create a new one. What is a space How to create a space The space functionality is available for apps of such versions or later: Ajax Security System 3.0 for iOS;...
Page 32 How to add KeyPad Fibra To add the keypad manually 1. Open the PRO app . Select the hub you want to add KeyPad Fibra to. 2. Go to the Devices tab and click Add Device. 3. Assign a name to the device.
Page 33: Functionality Testing
Devices tab in the app. KeyPad Fibra works with one hub only. After connecting to a new hub, the keypad stops exchanging commands with the old one. Once added to a new hub, KeyPad Fibra is not removed from the list of devices of the old hub.
Page 34 2. Go to the Devices menu. 3. Select KeyPad Fibra. 4. Go to the KeyPad Fibra settings by clicking on the gear icon 5. Select the Fibra Signal Strength Test. 6. Run the test following the prompts of the app.
Page 35 The icons show some of the device states. You can view them in Ajax apps in the Devices tab. Icon Meaning Fibra Signal Strength — displays the signal strength between the hub and the keypad. Recommended value is 2–3 bars. Learn more KeyPad Fibra is disabled.
Page 36 Learn more KeyPad Fibra has tamper triggering events disabled. Learn more The device was not transferred to the new hub. Learn more States...
Page 37 The states include information about the device and its operating parameters. The states of KeyPad Fibra can be found in the Ajax app: 1. Go to the Devices tab. 2. Select KeyPad Fibra from the list of devices. Parameter Meaning...
Page 38 Learn more Signal strength between the hub and KeyPad Fibra. The recommended value is two or three bars. Fibra is a protocol for transmitting KeyPad Fibra Fibra Signal Strength events and alarms. Learn more Connection via Fibra...
Page 39 Oﬄine — the keypad has lost connection with the hub. Check the keypad connection to the hub. The voltage value on the Fibra line to which the Line Voltage keypad is connected. The status of the tamper that responds to detachment of the device from the surface or opening of the enclosure: Closed —...
Page 40 Learn more Firmware KeyPad Fibra ﬁrmware version. KeyPad Fibra ID (serial number). Also available on Device ID the back of the keypad enclosure and on the packaging. Device № KeyPad Fibra loop (zone) number.
Page 41 The number of the Fibra line of a hub to which Line № KeyPad Fibra is physically connected. Settings To change the keypad settings in the Ajax app:...
Page 42 1. Go to the Devices tab. 2. Select KeyPad Fibra from the list. 3. Go to Settings by clicking on the gear icon 4. Set the required settings. 5. Click Back to save the new settings. Settings Meaning Keypad name. Displayed in the list of hub devices, text of SMS and notiﬁcations in the events feed.
Page 43 Each keypad can be conﬁgured to control a separate security group. By default, the keypad controls all security groups in the system. group mode When is disabled, the keypad controls the security of the entire system. Setting the method to control system security modes: Keypad codes only —...
Page 44 Alarm — when the button is pressed, the system sends an alarm to all users and the monitoring station of a security company. Mute Fire Alarm — when pressed, disables the Ajax ﬁre detectors alarm. The option Interconnected ﬁre works only if the detectors alarm option is enabled.
Page 45 5 minutes 10 minutes 20 minutes 30 minutes 60 minutes 90 minutes 180 minutes Selecting the brightness of the keypad backlight: 0 to 5 (0 — backlight is off, 5 — very bright backlight). The backlight is on only when the keypad is Brightness active.
Page 46 Fibra Fibra Signal Strength Test wired data transfer protocol to determine the optimal installation location. Learn more Opens the KeyPad Fibra user manual in the Ajax User Guide app. Permanent Deactivation Allows the user to disable the device without removing it from the system.
Page 47 The device does not execute system commands and does not report alarms or other events. Learn more Unpairs KeyPad Fibra from the hub and deletes its Delete Device settings. Codes setting...
Page 48 Keypad access code To generate a keypad access code, in apps: 1. Go to the Devices menu. 2. Select the keypad for which you want to set up an access code. 3. Go to Settings by clicking on the gear icon 4.
Page 49 4. Open the Users menu. 5. Find your account in the list and click on it. 6. Go to the Passcode Settings item. 7. Set the user code. Contains from 4 to 6 digits. 8. Click OK. 9. Click Back to save the settings. Access code for a user without an account With an OS Malevich 2.13.1...
Page 50 6. Click Add to save the data. Duress code Keypad duress code To generate a keypad duress code, in apps: 1. Go to the Devices menu. 2. Select the keypad for which you want to set up a duress code. 3.
Page 51 3. Go to Settings by clicking on the gear icon 4. Open the Users menu. 5. Find your account in the list and click on it. 6. Go to the Passcode Settings item. 7. Set the user duress code. Contains from 4 to 6 digits. 8.
Page 52 8. Press Done. 9. Click Save to save the changes. RRU code Only a PRO with the rights to conﬁgure the system can create and conﬁgure the RRU codes in the Ajax PRO apps . More information about conﬁguring this feature you can ﬁnd in this article The RRU codes are supported by hubs (except the Hub model) with OS Malevich 2.17 and...
Page 53 Arming with a personal code Arming with a common code...
Page 54 KeyPad Fibra is locked for the time speciﬁed in the settings if an incorrect password is entered three times in a row within 1 minute. The corresponding notiﬁcations are sent to users and to the monitoring station of the security company. A hub administrator or PRO...
Page 55 Security control of the object using a keypad code 1. Activate the keypad by touching any touch button. 2. Enter the Keypad Code. 3. Press the button (Arm), (Disarm) or Night Mode For example, to arm the system: 1234 → Security control of the group using a keypad code 1.
Page 56 ID. To control the security of this group, it is enough to enter the keypad code or user code. If KeyPad Fibra is conﬁgured to control a separate security group, enabling the Night Mode for this group is only possible with a user code. The user should have an access right to control this group.
Page 57 Security control of the group using a user code 1. Activate the keypad by touching any touch button. 2. Enter the User ID 3. Press the Function button. 4. Enter the User code. 5. Press the Function button. 6. Enter the Group ID 7.
Page 58 Scenarios and sirens react to disarming under duress in the same way as to normal disarming. To use the keypad duress code 1. Activate the keypad by touching any touch button. 2. Enter the Keypad Duress Code. 3. Press the (Disarm) button.
Page 59 2 → * → 4422 → Using the RRU code The RRU code is activated after triggering the alarm during the time conﬁgured in the hub settings, and it is valid for a speciﬁed period. This ensures that such code will only be used in case of risk, unlike keypad or user codes.
Page 60: Led Indication
1234 → → 2 → LED indication KeyPad Fibra can report the current security mode, button pressings, malfunctions, and other conditions with LED indication and a sound signal. The current security mode is displayed by the backlight after the keypad is activated.
Page 61 Event LED indication Note Short beep, the current system Touch button pressed. security status LED blinks once. Short beep, Armed or Night The system is armed. Mode LED lights up. Two short beeps, Disarmed LED The system is disarmed. lights up. Long beep, digital unit LED Wrong code entered.
Page 62 If any device is oﬄine or the battery is low, KeyPad Fibra can notify system users with an audible sound. The keyboards’ LEDs Х will blink. Malfunction notiﬁcations will be displayed in the events feed, SMS text, or push notiﬁcation.
Page 63 Two short sound signals, Malfunction indicator Х blinks twice. It’s impossible to delay sound If KeyPad Fibra is oﬄine. Beep once per minute until the indication. keyboard in the system is online. Three short sound signals, Malfunction indicator Х...
Page 64 All malfunctions can be seen in the States of devices. Fields with malfunctions will be highlighted in red. KeyPad Fibra malfunctions The keypad temperature is out of acceptable limits. The keypad enclosure is open or detached from the surface (tamper button triggering).
Page 65: Maintenance
No connection between the keypad and the hub via the Fibra protocol. Low voltage of the KeyPad Fibra power supply line. Maintenance Check the functioning of your keypad regularly. The optimal frequency of checks is once every three months. Clean the enclosure and keypad touch panel from dust, cobwebs, and other contaminants as they emerge.
Page 66: Complete Set
3. Installation kit. 4. Quick Start Guide. Warranty Warranty for the Limited Liability Company “Ajax Systems Manufacturing” products is valid for 2 years after the purchase. If the device does not function correctly, please contact the Ajax Technical Support ﬁrst. In most cases, technical issues can be resolved remotely.
Page 67 User Agreement Contact Technical Support: e-mail Telegram Manufactured by “AS Manufacturing” LLC Subscribe to the newsletter about safe life. No spam Email Subscribe...
