Summary of Contents for Mod Pergola +

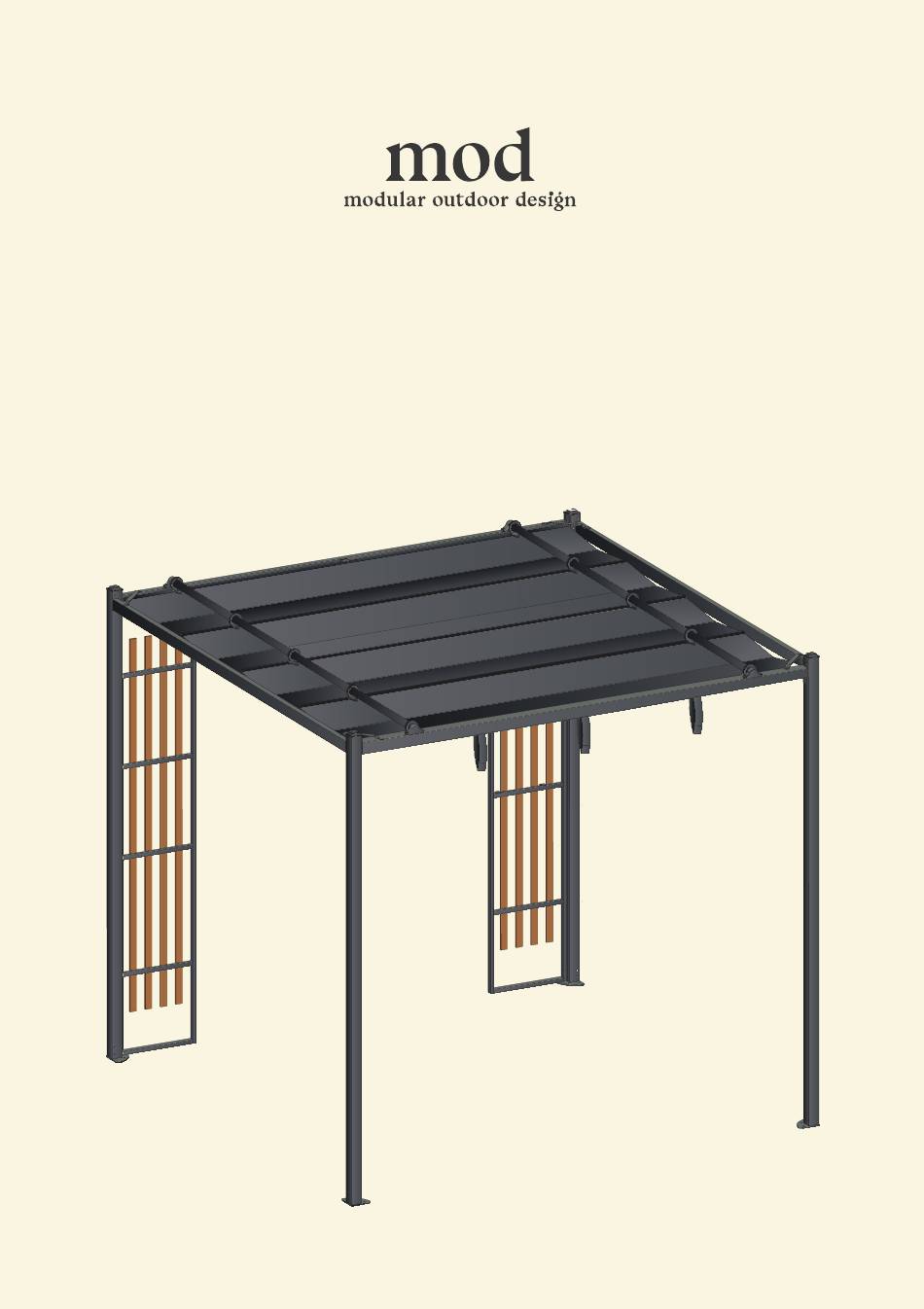

Page 1 MOD Pergola +...
Page 2 Thank you: We’re thrilled that you have chosen the MOD™ Pergola to transform your outdoor living area and we would first like to offer our heartfelt thanks for being apart of our growing community. With your purchase of the MOD™ Pergola, you’ve taken...
Page 3 Before you begin... LOCATION, LOCATION, LOCATION! WARNINGS: • Selecting a flat level location for your MOD™ Some sections of assembly will require Pergola(s) is essential. lifting parts overhead. Lifting these parts can • If required, clear and level the space for be heavy and awkward to secure into place where your MOD™...
Page 4 MOD’s™ standard rate and terms then in responsibility. effect. This warranty gives you specific legal...
Page 5: Item Description
Parts List ITEM DESCRIPTION PART Pole Crossbeam Crossbeam Crossbeam Brace Clip Mount Foot Loop Canopy Panel Cover Cover M6x25 M6x15 Bolt Bolt Hex Key Stake...
Page 6 Step 1 Assembly Instructions Insert Foot (J) into the bottom of each Pole (A) so that the bolt-threading found on top of part J lines up with the eyelets at the bottom of each part A. Insert one M6x15 Bolt (X) through each eyelet on each part A and into the bolt-threading found on each part J.
Page 7 Step 2 Assembly Instructions Insert one M6x15 Bolt (X) through the eyelet in the center of Clip (H) and into the bolt-threading insert in the center of Crossbeam (C). Use Hex Key (Y) to tighten the bolt down. Model No. 88633 - 2024 Modular Outdoor Design .
Page 9 Assembly Instructions For Steps 3 through 6 of these assembly instructions, it is recommended to tighten the bolts enough to hold the parts in place and not all the way down. This allowance or “wiggle room” will give you the freedom to connect parts together more easily and not restrained due to parts being previously secured in place.
Page 11 Assembly Instructions Place Brace (G) over Crossbeam (C) and Crossbeam (D) at the corner of where these parts meet, as illustrated on the previous page. Insert one M6x15 Bolt (X) through the eyelets at each end of part G and into the bolt-threading inserts found on top of parts C and D.
Page 13 Single Panels can be placed at any pole of your choosing or two can be used to form a corner on your MOD™ Pergola. The following instructions will go over placing two Panels underneath and at either end of the same Crossbeam.
Page 15 Assembly Instructions Place Mount (I) on top, near one end of Crossbeam (C) [so that the cylindrical peg of part I is facing inward], as illustrated on the previous page. Insert two M6x15 Bolts (X) through each eyelet of part I and into the bolt-threading inserts on top of part C.
Page 17 Assembly Instructions Unfold and stretch out Canopy (L) as illustrated on the previous page. Unzip the five zippers at the ends of the sewn-on sleeves of Canopy (L). Insert one Rod (F) through each opened zipper and across the length of each sewn-on sleeve.
Page 19 Assembly Instructions Before proceeding with the installation of the Canopy (L) to your MOD™ frame, let’s take a closer look at the canopy to better understand some of its features. There are three tie-down straps with fasteners along one side of the Canopy (L).
Page 20 Step 9 Assembly Instructions Use the provided covers to fill unused eyelets on your Panels (M). Use Cover (V) to fill the small eyelets on either side of the unused corner of each Panel (M). Use Cover (U) to fill the larger eyelets underneath the smaller eyelets at the corners of both part M’s.
Page 21 Panel (M) and two eyelets are at the base of each Pole (A), intended for these stakes. Using a rubber hammer (not included) would work best for securing these stakes and your MOD™ Pergola in place. Model No. 88633 - 2024 Modular Outdoor Design...
Page 22 Other Designs 181.1 in (4.6 m) 271.6 in (6.9 m) 181.1 in (4.6 m) Dual Connector (item# 88639) 181.1 in (4.6 m) Corner Connector (item# 88640) Model No. 88633 - 2024 Modular Outdoor Design . All Rights Reserved.
Page 23 Thanks to the versatility of MOD™ Pergolas, the configuration options are limitless. You can create a long continuous shade or a covered space under four connected pergolas for gatherings. With the retractable canopies overhead, you can decide where and how much sun to let in.
Page 24 MOD Pergola +...
