Summary of Contents for Logic IO PNM-100

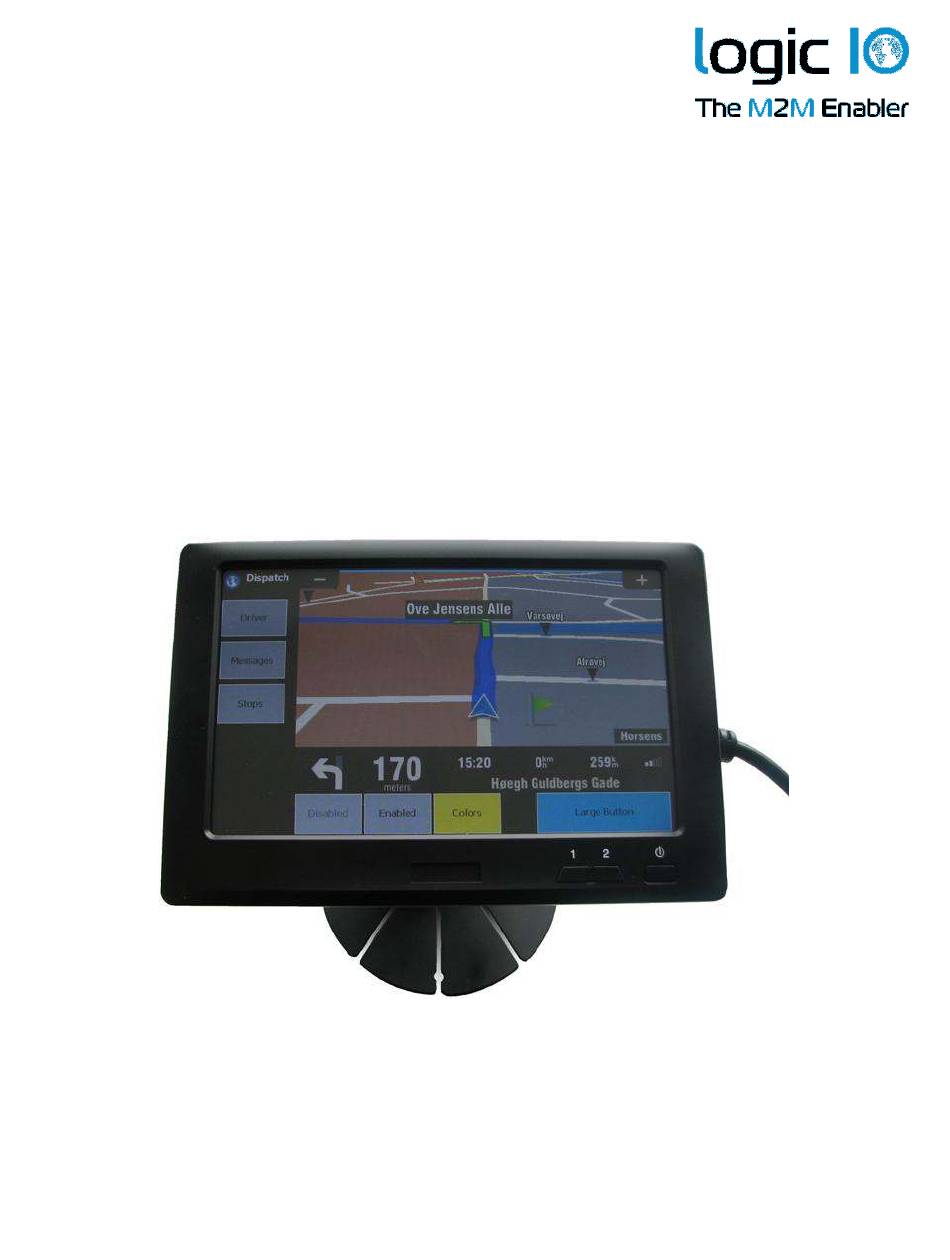

- Page 1 Technical Manual 1.20, PNM-100 Technical Manual for the PNM-100 Version 1.20...
- Page 2 Technical Manual 1.20, PNM-100 Introduction The Logic IO PNM-100 product is a complete solution using the Navigation and Messaging Platform designed for the most demanding and professional fleet management applications. The PNM device is a ruggedized 7-inch, easy to read, screen optimized for finger touch usage.
- Page 3 Interfacing to the RTCU CX1 flex and RTCU CX1 pro ..........12 Interfacing to the RTCU SX1 series................14 Interfacing to the RTCU IDE Simulator................16 Specifications for PNM-100 ................... 17 Appendix A – Mounting the Dashboard Bracket..............18 Appendix B – Configuration of the PNM Interface Box............20 Page 3 of 20 Logic IO ApS.
- Page 4 Technical Manual 1.20, PNM-100 Graphical view Page 4 of 20 Logic IO ApS. Ph: (+45) 7625 0210 Holmboes Allé 14 Fax: (+45) 7625 0211 8700 Horsens Email: info@logicio.com Denmark www.logicio.com / www.rtcu.dk...
- Page 5 Technical Manual 1.20, PNM-100 Package overview The package of the PNM-100 includes the following items: Quantity Item Description PNM-100 device Windows CE5.0 device Mounting Bracket PNM-100 device mounting bracket PNM interface box Interface to the PNM-100 device SD-CARD With pre-installed software 1.5 m RJ-45 –...
- Page 6 Technical Manual 1.20, PNM-100 PNM-100 Overview Touch Screen Key2 Key1 Reset Power Interface Description Power Power ON/OFF. Can only be used when the device is enabled Reset Restarts the system Key1 Shortcut key for sound on/off. No visual indication on the display.
- Page 7 Technical Manual 1.20, PNM-100 Interface cover Mini USB port USB port Earphone jack SD card slot Interface Description Mini USB Port Mini USB 2.0 for ActiveSync and USB Host 1.1 USB Port Connection with USB mouse or USB device Earphone jack...
- Page 8 Technical Manual 1.20, PNM-100 Speaker The Fixed Jack Security Lock DIN13 Interface cable Typical System Connection A typical system installation is illustrated below: RTCU Unit PNM interface box External Power Supply Page 8 of 20 Logic IO ApS. Ph: (+45) 7625 0210 Holmboes Allé...
- Page 9 MX2i pro/pro+ and the RTCU SX1 series. When the PNM interface box is connected to the RTCU CX1 flex/pro the PNM-100 is powered through the RJ45 connector. The PNM interface box must be supplied between 12...36 VDC from an external DC power source connected to the PWR connector.
- Page 10 Technical Manual 1.20, PNM-100 RTCU interface connector Using this RJ-45 connector the RTCU unit can be connected to the PNM interface box and control the power of the PNM device. The different kinds of RTCU units have their own interface cable to the PNM interface box. Please see the section “Typical Application” for further information.
- Page 11 Technical Manual 1.20, PNM-100 Typical Application This is a quick start guide to connect the PNM device to the supported RTCU unit. It’s easy to install the PNM system on location with the supplied cable for the RTCU MX2i pro/pro+, RTCU CX1 flex/pro and the SX1 series. The following sections will describe the system connection to the supported RTCU units.
- Page 12 Technical Manual 1.20, PNM-100 Interfacing to the RTCU CX1 flex and RTCU CX1 pro The RJ-45 flying lead cable needs to be connected to the RJ-45 connector of the PNM interface box and to the RTCU CX1. The PNM interface box does not require any external DC supply, and will be supplied directly through the digital output #2 of the RTCU CX1.
- Page 13 Technical Manual 1.20, PNM-100 1. Check that the control switch S4 in the PNM interface box is in position B. The interface box is delivered with this configuration by default. Please refer to Appendix B for location and configuration of the switch.
- Page 14 Technical Manual 1.20, PNM-100 Interfacing to the RTCU SX1 series The RJ-45 flying lead cable needs to be connected to the RJ-45 connector of the PNM interface and the RTCU SX1. The PNM interface box is supplied from an external DC supply using the power cable.
- Page 15 Technical Manual 1.20, PNM-100 1. Check that the control switch S4 in the PNM interface box is in position A. This switch is in position B by default. Please refer to Appendix B for location and configuration of the switch.
- Page 16 Technical Manual 1.20, PNM-100 Interfacing to the RTCU IDE Simulator The PNM-100 is supported by the RTCU IDE simulator. In order to connect the PNM-100 to the PC an optional cable with the order code RT-PNM-PC is needed. PNM interface...
- Page 17 Technical Manual 1.20, PNM-100 Specifications for PNM-100 Power supply Power supply Protected against wrong polarity. Protected against wrong polarity. Operating Voltage Operating Voltage <10 <10 The RTCU unit is not included The RTCU unit is not included Power Consumption Power Consumption...
- Page 18 Technical Manual 1.20, PNM-100 Appendix A – Mounting the Dashboard Bracket A dashboard mounting bracket is included for easy installation of the PNM-100 device. In the following mounting of the bracket will be described. The bracket consists of two parts. One of the parts is will be mounted on the PNM device, and the counter part will be attached to the dashboard.
- Page 19 Technical Manual 1.20, PNM-100 Mounting jack Mounting jack starting point Mounting Mounting rail opening rail opening 5. Slide the PNM device into the bracket part 1 all the way down until a click sound is heard. The vertical angle and rotation of the PNM device can be adjusted using the screw handle on the bracket part 1.
- Page 20 A configuration switch is placed in the PNM Interface box for easy configuration. This switch gives the ability of controlling the PNM-100 device either with RTCU MX2i Pro/Pro+, RTCU CX1 Pro/Flex or RTCU SX1 series. The following figure illustrates the location of...
