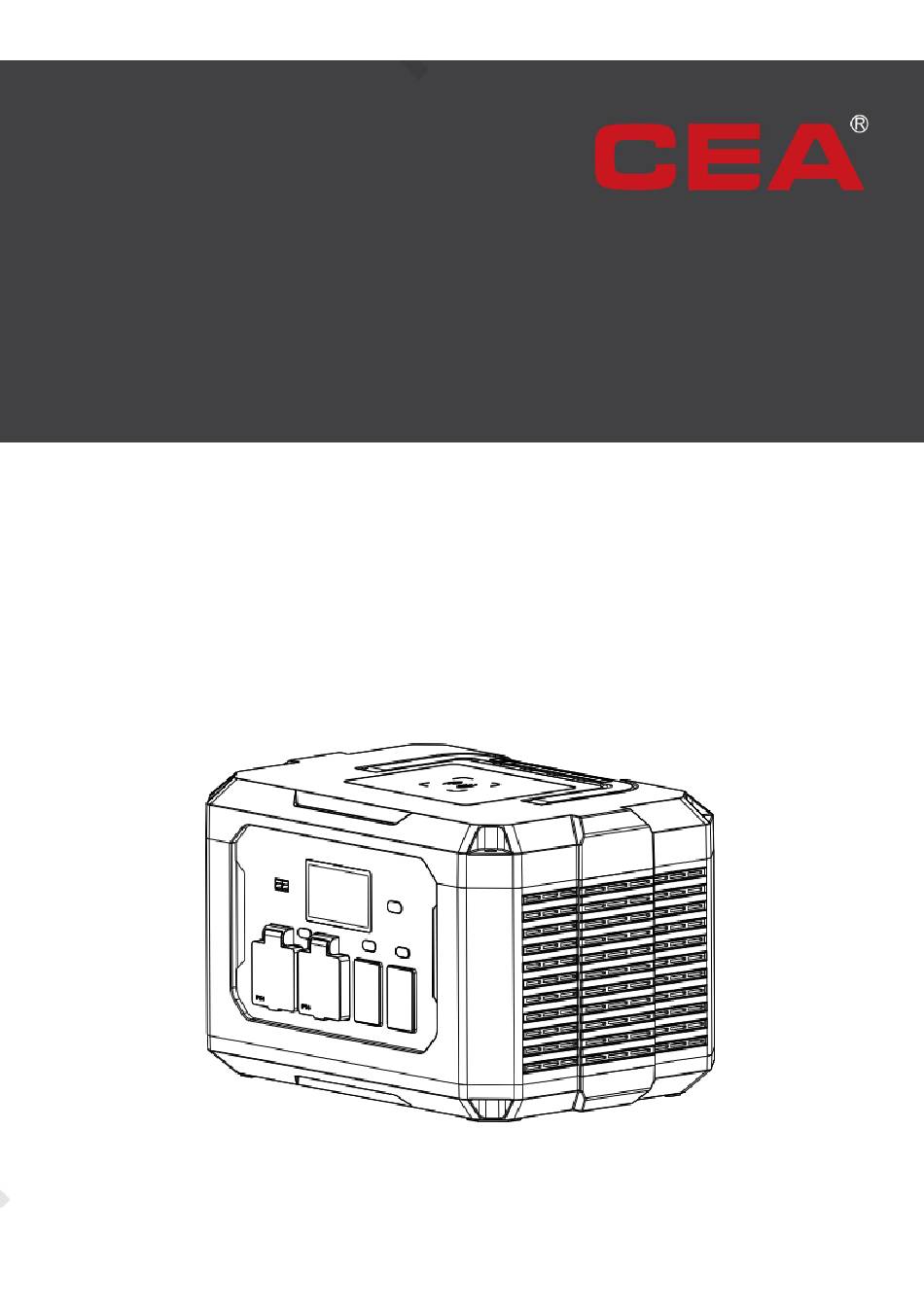

Portable energy storage power supply
EA1000-1280WH-1XX
Version A0
(XX, indicates different colors, such as BK, GN, YE)
(XX, indicates different colors, such as BK, GN, YE)
Product use and
technical specification
Please read the manual carefully and follow the instructions before using
CEA ELECTRIC CO.,LTD
Advertisement
Table of Contents
Related Manuals for CEA EA1000-1280WH-1XX
Summary of Contents for CEA EA1000-1280WH-1XX
- Page 1 EA1000-1280WH-1XX Version A0 (XX, indicates different colors, such as BK, GN, YE) (XX, indicates different colors, such as BK, GN, YE) Product use and technical specification Please read the manual carefully and follow the instructions before using CEA ELECTRIC CO.,LTD...
- Page 2 Applicability This manual is applicable to the following products: Portable energy storage power supply EA1000-1280WH-1XX (XX, indicates different colors, such as BK, GN, YE) Disclaimer has no warranty for accuracy, adequacy or applicability of the information in the manual, as we will continue to improve products.
- Page 3 I. Product Application and Scope of Use Product name: portable energy storage power supply Model/Specification: EA1000-1280WH-1XX (XX, indicates different colors, such as BK, GN, YE) Product features: This product has long endurance; Using lithium iron phosphate battery core, safe and reliable, with lots of cycle times and long service life;...
- Page 4 II. Product introduction Composition Portable energy storage power supply is mainly composed of housing, inverter, display screen, main control panel and lithium iron phosphate battery Function key description Photovoltaic charging interface display screen main power button AC output DC button AC output socket USB output II.
- Page 5 II. Product introduction Remarks: 1. Press and hold LED light button + main power button for 3 seconds, display screen will reset and restart; 2. When the AC output is off, press and hold the main power button + AC button for 3 seconds to switch the frequency between 50 and 60HZ;...
- Page 6 II. Product introduction Display screen function description: Fault alarm display Charging power display Discharging power display AC output frequency Temperature alarm prompt power display DC12V output display port C output display port A output wireless charging display output display...
- Page 7 III. Technical parameter Project Parameter Lithium iron phosphate soft Battery capacity package 1280WH 378*265*239mm Product size Product weight 13 kg Use ambient temperature range -10 ~ 40 ℃ Storage temperature -10 ~ 40 ℃ 400W (11-60V 10A) support MPPT Solar charging power tracking function Input Mains...
- Page 8 Single discharge 100W 5V3A 9V3A 12V3A 15V3A 20V5A Support Type-c2 PPS/PD/QC3.0/QC2.0/AFC/FCP/S CP/BC1.2/APPLE Output and some other fast charging protocols 18W fast charging: supports QC3.0/QC2.0/AFC/FCP/BC1.2/AP PLE and some other fast charging USB A1 protocols 5V3A 9V2A 12V1.5 A Output 18W fast charging: supports QC3.0/QC2.0/AFC/FCP/BC1.2/AP PLE and some other fast charging USB A2...
- Page 9 IV. Operation and use methods 1. Charging steps and methods: 1.1 AC charging only needs one end of a power cord to be inserted into the charging socket on the back of the equipment, and the other end connected to mains electricity.
-
Page 10: Fault Code Display
ordinary lighting and flashlight lighting. The control sequence of the switch button is: lighting 1 bright/lighting 1 flash/lighting 2 bright/off; 5. How to use wireless charging: Place the mobile phone in a position marked with a wireless charging area on the top of the device, and turn on the main power button and the USB button in turn;... -
Page 11: Product Maintenance
VI. Product maintenance 6.1 Newly purchased products shall be fully charged before use; 6.2 Regularly remove the dust and dirt at the cooling window; 6.3 Under the condition of long-term storage for more than 3 months, at least 50% of the electricity power shall be stored; 6.4 If stored for more than 6 months, please charge and discharge the product for 1-2 times in order to prolong the service life of the battery;... - Page 12 environment, wet and rainy environment during use and placement, otherwise it may cause dangerous situations; 7.4 This product has a built-in high-voltage power supply, and non professionals are not allowed to disassemble it by themselves; 7.5 Please do not discard this product at will after its service life. Please recycle it according to local laws and regulations;...
-
Page 13: Product Packing List
VIII. Product packing list Portable energy manual X 1 storage power supply AC Power charging DC car charging line line X 1... - Page 14 CAUTION A photovoltaic panel as an input for charging the internal battery shall be provided with an inverter and/or a charge controller in accordance with UL 1741 or UL 62109-1; The external power supply shall be a power source in accordance with the Standard UL 60950-1 and CAN/CSA C22.2 No.
- Page 15 l) When charging the internal battery, work in a well ventilated area and do not restrict ventilation in any way. m) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
