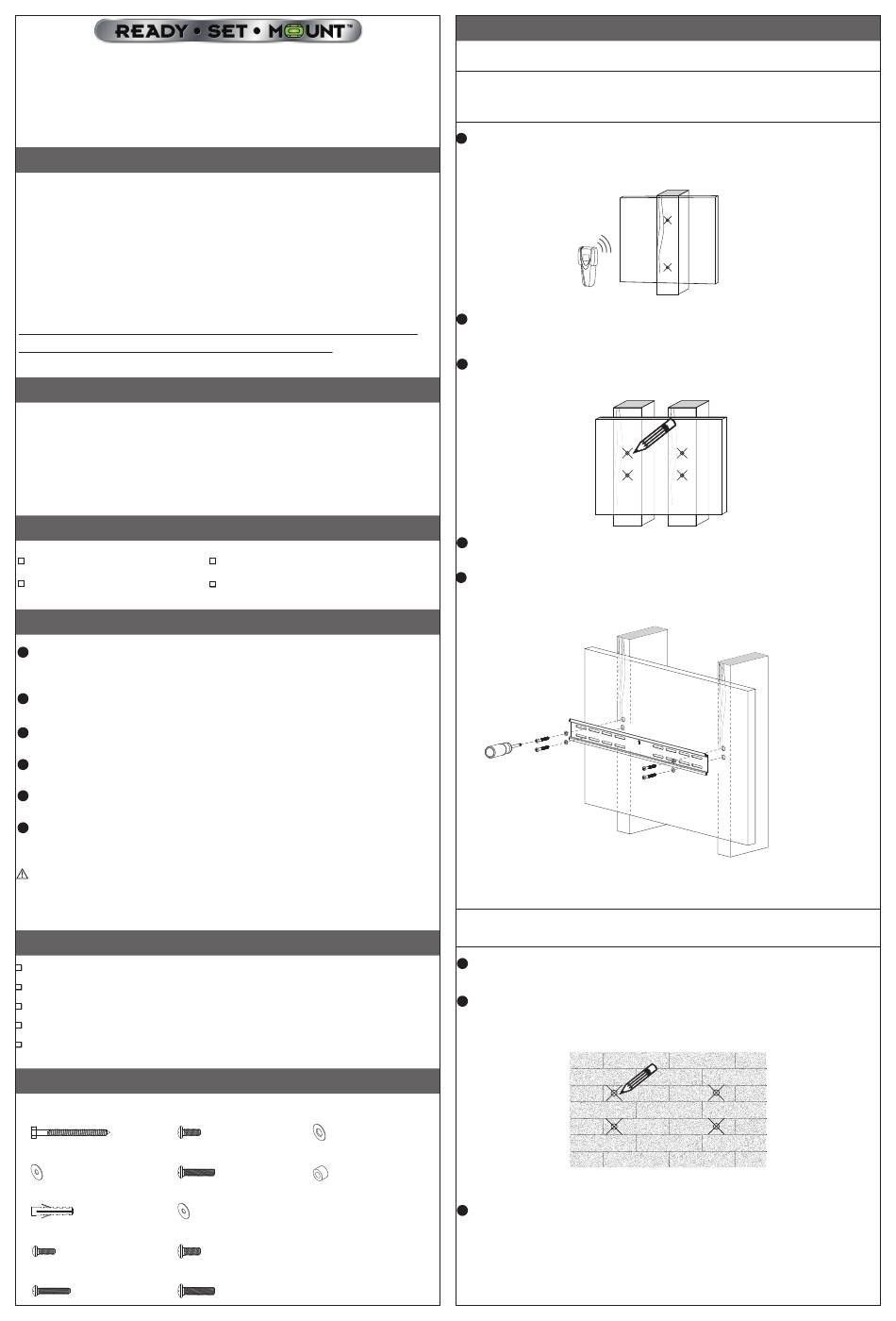

Ready-Set-Mount RSMWF60 Instruction Manual

RSMWF60
LARGE FIXED WALL MOUNT
INSTRUCTION MANUAL
INTRODUCTION
Congratulations on your purchase!
We take pride in the quality of our products and are confident you have
received one of the finest wall mounts on the market. Should you have any
questions or comments, require any assistance, or need replacement parts for
your mount, please contact us by e-mailing info@RSMount.com or calling
1-888-530-7904. You can also visit our website for more information:
www.readysetmount.com.
IF YOU NOT SATISFIED WITH YOUR MOUNT FOR ANY REASON, PLEASE
CONTACT US BEFORE RETURNING IT TO THE RETAILER.
SPECIFICATIONS
Display Size: 48" and up
Maximum Load: 100 lbs.
Mounting Pattern: 100 mm x 100 mm to 600 mm x 400 mm
Profile: 0.8" (2.0 cm)
BOX CONTENTS
Wall Plate (x1)
Mount Arm (x2)
WARNINGS
1 Read these instructions before you begin. If you are unsure of any part of the
process, contact a professional contractor or installer for assistance. Improper
installation can result in injury or damage.
The wall or mounting surface must be capable of supporting the combined weight of
2
the mount and the display; if not, the structure must be reinforced.
Locate pipes, wires, or any other hazards in the wall where you wish to install the mount
3
before drilling.
Safety gear and proper tools must be used. Failure to do so can result in injury or
4
damage.
5 Two people are recommended for installation. Do not attempt to lift a heavy display
without assistance.
6 Follow all instructions and recommendations regarding adequate ventilation and
suitable locations for mounting your display. Consult the owner's manual for your
particular display for more information.
CAUTION: This wall mount is intended for use only with the maximum weight of 100
lbs. Use with heavier than the maximum weights indicated may result in instability
causing possible injury.
TOOLS REQUIRED
Phillips Head Screw Driver
Electric or Portable Drill
1/8" Drill Bit and Stud Finder for Drywall Installation
5/16" Masonry Bit for Concrete Installation
Level
HARDWARE KIT
(A) Drywall Screw (x4) (E) M6 x 12 Screw (x4)
(F) M6 x 20 Screw (x4)
Washer (x4)
(B) Concrete Anchor (x4)
(G) M6 Washer (x4)
(C) M5 x 12 Screw (x4)
(H) M8 x 12 Screw (x4)
(D) M5 x 20 Screw (x4)
(I) M8 x 20 Screw (x4)
Instruction Manual (x1)
Hardware Kit (x1)
(J) M8 Washer (x4)
(K) Spacer (x4)
INSTALLATION
Part 1A – Mounting to the Wall (Drywall)
IMPORTANT! For safety reasons, this mount must be secured to at least two wood studs
no less than 16" apart. The studs must be capable of supporting the combined weight of
the mount and display.
Use a high quality stud finder to locate a stud on the wall where you wish to install your
1
mount (see Fig. 1). Mark both edges of the stud to help identify the exact center.
NOTE: Use the center of the stud to avoid cracking or splitting the wood.
Fig. 1
Place the wall plate against the wall over the marked studs with the arrow pointing up.
2
Make sure it is level.
3 While another person holds the wall plate in place, mark four locations (two per stud)
for securing the mount to the wall (see Fig. 2).
Fig.2
Set the wall plate aside and drill a 1/8" pilot hole at each marked location.
4
5
Attach the wall plate to the wall using the drywall screws and washers (A) provided see
Fig. 3). Ensure that the wall plate remains level.
Fig. 3
Part 1B – Mounting to the Wall (Concrete)
IMPORTANT! For safety reasons, the concrete wall must be capable of supporting the
combined weight of the mount and the display.
1 Place the wall plate against the wall in the desired location with the arrow pointing up.
Make sure it is level.
While another person holds the wall plate in place, mark four evenly spaced locations
2
on the wall for securing the mount (see Fig. 4).
Fig. 4
Set the wall plate aside and drill a 5/16" hole at each marked location. Remove any
3
excess dust from the holes.
